7522 ES (1696273-01) - Murray 22" Snow Thrower, 8hp (2014) Chute Group - Manual Parts Diagram

22" Snow Thrower, 8hp

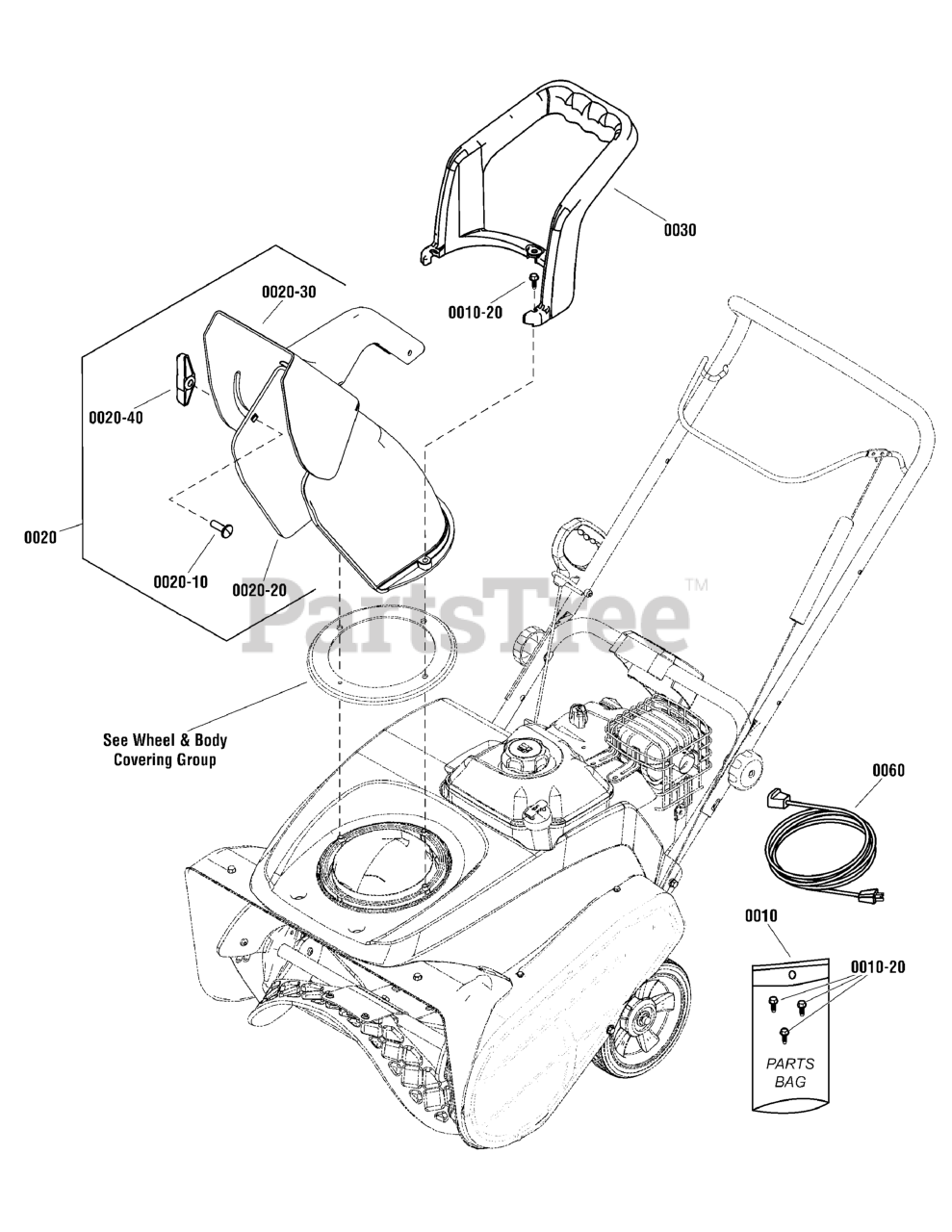

Chute Group - Manual Parts Diagram

  • Title
0010

Murray 1751007

PARTS BAG
(Superseded to 1751007YP)

$6.49

$

Usually ships in 2-12 days

0

0010-20

Murray 7900023

SCREW, Self Tapping, 1/4-15 x 1-1/4
(Superseded to 1751399YP)

$4.49

$

In Stock, only 2 left!

0

0020

Murray 1739755

CHUTE ASSEMBLY, Manual
(Superseded to 1739755YP)

Note: (Incl.Ref.Nos.0020-10,0020-20,0020-30 & 0020-40).

$86.99

$

Usually ships in 2-12 days

0

0020-10

Murray 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0020-20

CHUTE

$

$

Not available

0020-30

DEFLECTOR

$

$

Not available

0020-40

Murray 7035744

KNOB, Wing, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0030

Murray 1739692

HANDLE, Chute Rotation
(Superseded to 1739692YP)

$28.99

$

In Stock, only 4 left!

0

0060

Murray 724865

CORD, Electric
(Superseded to 6219MA)

Note: (Used on Domestic Models only)

$40.99

$

In Stock, only 2 left!

0
