75213 - Toro 60" TimeCutter HD MyRide Zero-Turn Mower (SN: 400000000 - 401999999) DECK LIFT ASSEMBLY Parts Diagram

60" TimeCutter HD MyRide Zero-Turn Mower

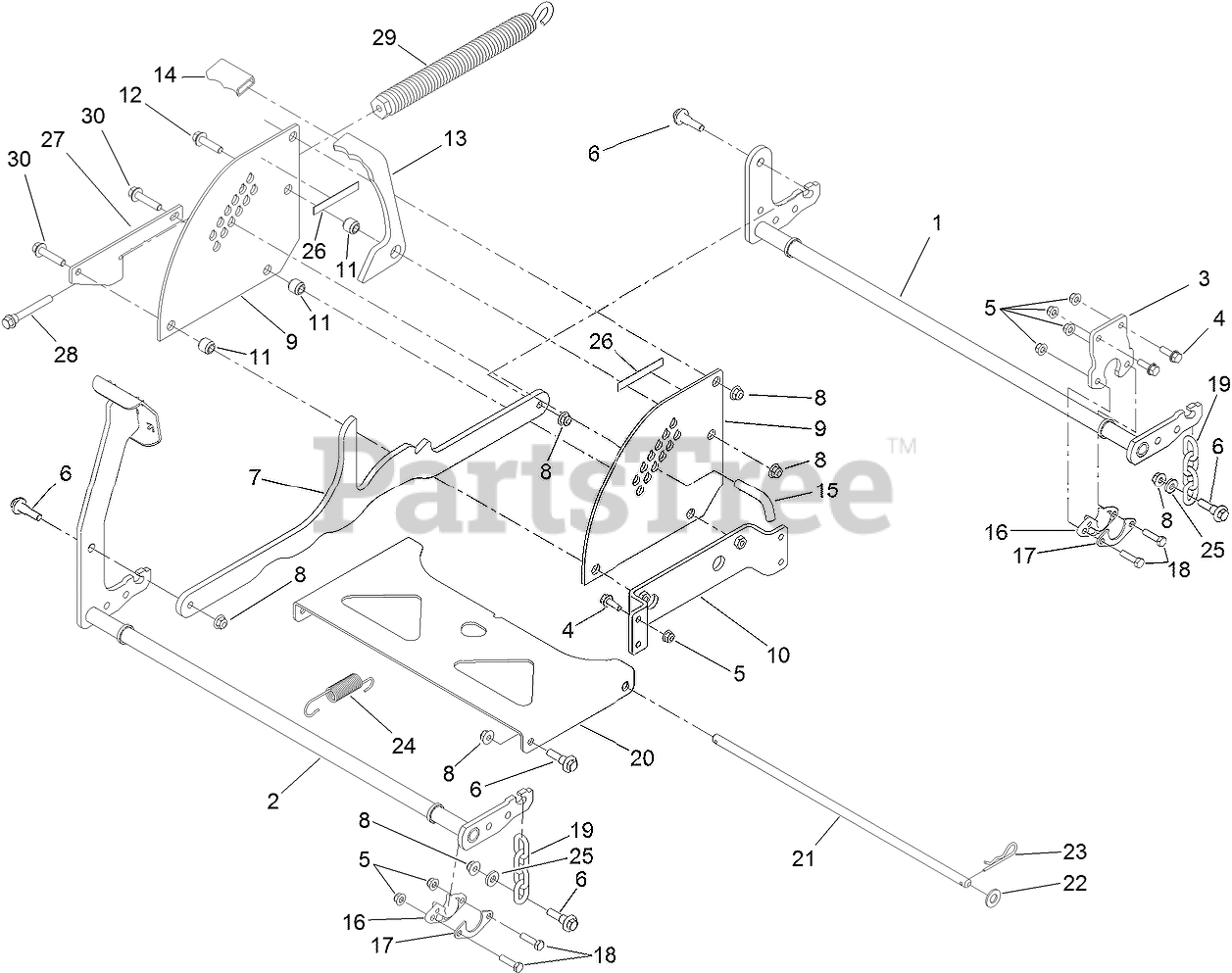

DECK LIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 131-4059-03

PIVOT-REAR

$93.99

$

Usually ships in 3-6 days

0

2

Toro 133-4430-03

PIVOT-FRONT

$111.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

4

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, only 3 left!

0

7

Toro 127-3390-03

LINK-HOC

$103.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 127-3389-03

PLATE-DECK, LIFT

$49.99

$

Usually ships in 3-6 days

0

10

Toro 133-7049

PLATE-LIFT

$21.99

$

Usually ships in 3-6 days

0

11

Toro 116-4313

SPACER-STEP, DOUBLE

$5.49

$

Usually ships in 3-6 days

0

12

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

13

Toro 127-3391

LOCK-TRANSPORT, HOC

$34.99

$

Usually ships in 3-6 days

0

14

Toro 116-4312

GRIP-FLAT

$3.49

$

Usually ships in 3-6 days

0

15

Toro 116-5584

PIN-HOC

$5.49

$

In Stock, only 4 left!

0

16

Toro 115-5065

BUSHING-FLANGE

$7.99

$

In Stock, Qty 12

0

17

Toro 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 9

0

18

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 130-0668

CHAIN-DECKLIFT

$7.99

$

Usually ships in 3-6 days

0

20

Toro 133-4311-01

PAN-PIVOT, DECK

$59.99

$

Usually ships in 3-6 days

0

21

Toro 133-7071

ROD-PIVOT, DECK

$18.99

$

Usually ships in 3-6 days

0

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

24

Toro 115-9652

SPRING-EXTENSION

$13.99

$

In Stock, only 1 left!

0

25

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

26

Toro 130-0734

PAD-RUBBER

$2.99

$

Usually ships in 3-6 days

0

27

Toro 132-0945-03

SUPPORT-SPRING

$22.99

$

Usually ships in 3-6 days

0

28

Toro 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

29

Toro 116-0886

SPRING-EXTENSION

$136.99

$

In Stock, only 1 left!

0

30

Toro 3234-19

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0
