75212 - Toro 54" TimeCutter HD MyRide Zero-Turn Mower (SN: 400000000 - 401999999) PISTON AND CYLINDER HEAD ASSEMBLY Parts Diagram

54" TimeCutter HD MyRide Zero-Turn Mower

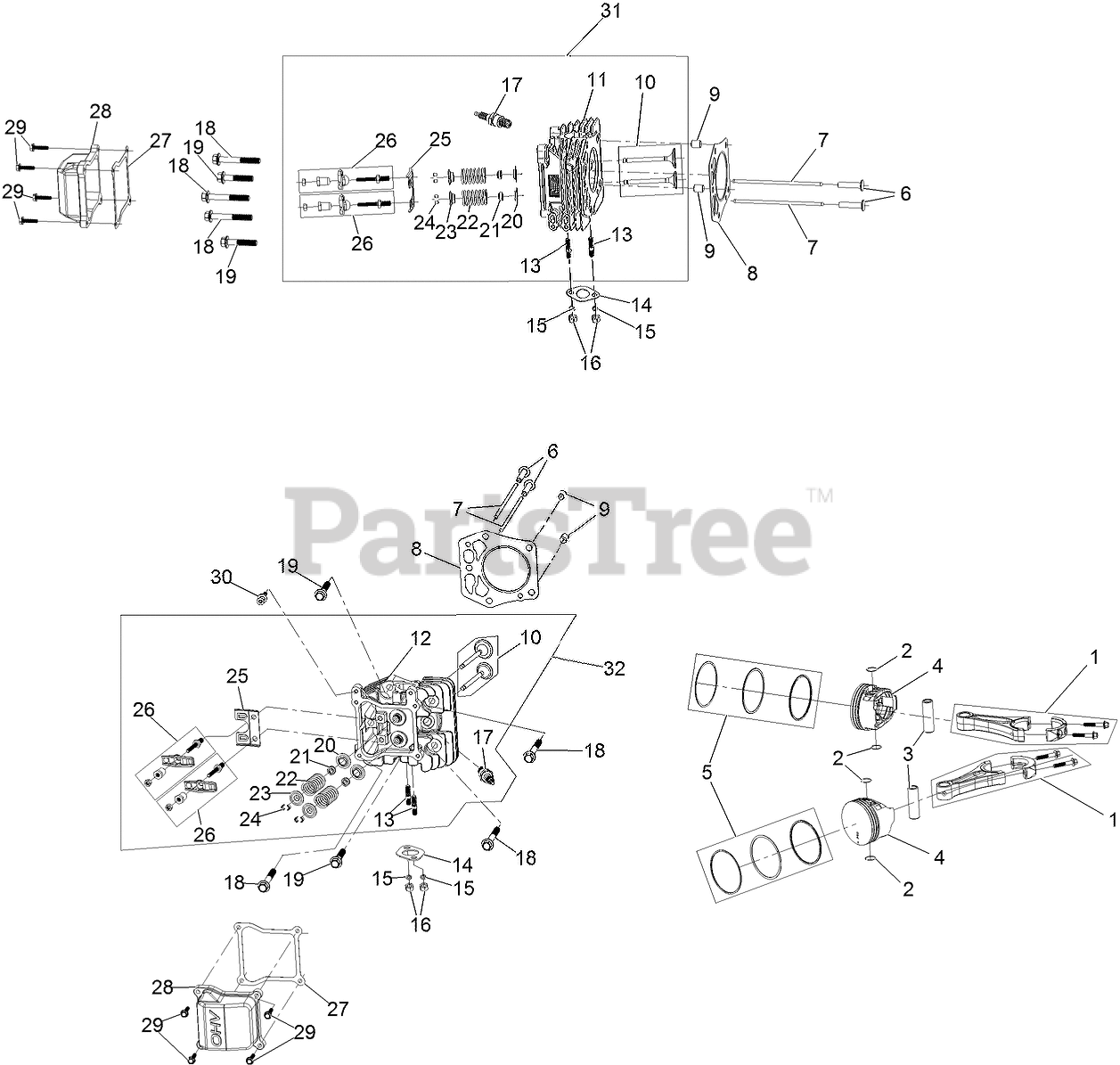

PISTON AND CYLINDER HEAD ASSEMBLY Parts Diagram

  • Title
1

Toro 127-9256

CONNECTING ROD ASM

$46.99

$

In Stock, only 2 left!

0

2

Toro 127-9258

CLIP-PIN, PISTON

$1.49

$

In Stock, Qty 6

0

3

Toro 127-9257

PIN-PISTON

$9.99

$

In Stock, only 2 left!

0

4

Toro 127-9259

PISTON

$39.99

$

Usually ships in 3-6 days

0

5

Toro 127-9260

PISTON RING SET

$20.99

$

In Stock, only 1 left!

0

6

Toro 127-9224

LIFTER-VALVE

$6.49

$

In Stock, only 2 left!

0

7

Toro 127-9225

ROD-PUSH

$7.99

$

In Stock, only 4 left!

0

8

Toro 127-9226

GASKET-HEAD, CYLINDER

$12.99

$

Usually ships in 3-6 days

0

9

Toro 127-9227

PIN-DOWEL

$1.49

$

In Stock, Qty 8

0

10

Toro 127-9228

VALVE SET

$35.99

$

In Stock, only 2 left!

0

11

Toro 133-9802

HEAD-CYLINDER, RIGHT

$156.99

$

Usually ships in 3-6 days

0

12

Toro 133-9804

HEAD-CYLINDER, LEFT

$156.99

$

Usually ships in 3-6 days

0

13

Toro 121-0464

STUD-EXHAUST

$2.99

$

Usually ships in 3-6 days

0

14

Toro 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, Qty 11

0

15

Toro 127-9279

WASHER-LOCK, SPLIT

$2.99

$

Usually ships in 3-6 days

0

16

Toro 121-0199

NUT-HH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 81-3250

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

18

Toro 127-9231

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

19

Toro 127-9232

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

20

Toro 120-4303

SEAT-SPRING, VALVE

$7.99

$

In Stock, Qty 8

0

21

Toro 120-4304

SEAL-STEM, VALVE

$18.99

$

Usually ships in 3-6 days

0

22

Toro 120-4305

SPRING-VALVE

$6.49

$

In Stock, only 2 left!

0

23

Toro 120-4306

RETAINER-SPRING, VALVE

$11.99

$

In Stock, only 1 left!

0

24

Toro 120-4307

KEEPER-VALVE

$8.49

$

In Stock, only 2 left!

0

25

Toro 127-9233

PLATE-GUIDE, PUSH ROD

$6.49

$

In Stock, only 2 left!

0

26

Toro 127-9294

ROCKER ARM ASM
(Superseded to 136-7881)

$12.99

$

In Stock, only 4 left!

0

27

Toro 127-9295

GASKET-VALVE COVER

$9.49

$

In Stock, Qty 10

0

28

Toro 127-9050

COVER-VALVE

$39.99

$

In Stock, only 1 left!

0

29

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

30

Toro 120-4214

SCREW-SHOULDER, HH

$2.99

$

Usually ships in 3-6 days

0

31

Toro 133-9819

RIGHT HEAD ASM
(Superseded to 136-7891)

$253.99

$

Usually ships in 3-6 days

0

32

Toro 133-9820

LEFT HEAD ASM
(Superseded to 136-7892)

$253.99

$

In Stock, only 2 left!

0
