75210 - Toro 48" TimeCutter HD MyRide Zero-Turn Mower (SN: 404314000 - 999999999) Seat Pan Assembly Parts Diagram

48" TimeCutter HD MyRide Zero-Turn Mower

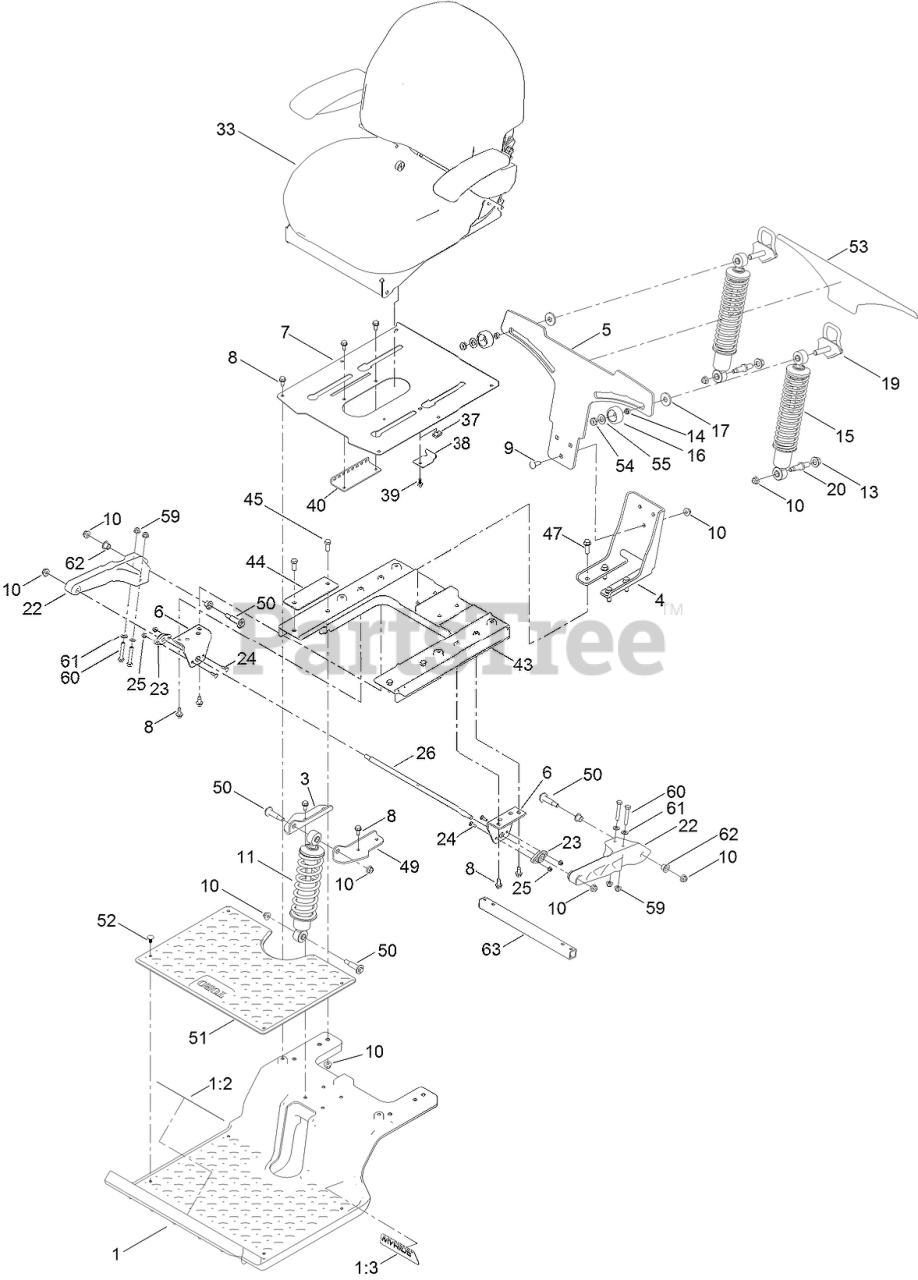

Seat Pan Assembly Parts Diagram

  • Title

1

Toro 136-9191

SUBFRAME-FRONT

$333.99

$

Usually ships in 3-6 days

0

1:2

Toro 132-0869

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

1:3

Toro 136-7470

DECAL

$6.49

$

Usually ships in 3-6 days

0

3

Toro 133-9319-03

BRACKET-SHOCK MOUNT, UPPER (RH)

$15.99

$

Usually ships in 3-6 days

0

4

Toro 133-4442-03

BRACKET-MOUNT, LOWER

$71.99

$

Usually ships in 3-6 days

0

5

Toro 133-4462-03

BRACKET-MOUNTING, SHOCK

$77.99

$

Usually ships in 3-6 days

0

6

Toro 137-1967-03

BRACKET-MOUNT, SWING ARM

$9.49

$

Usually ships in 3-6 days

0

7

Toro 133-7029-03

PAN-SEAT

$67.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 133-5192

SHOCK/SPRING ASM

$132.99

$

Usually ships in 3-6 days

0

13

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Toro 133-5109

BEARING-SLEEVE

$2.99

$

Usually ships in 3-6 days

0

15

Toro 133-5193

SHOCK/SPRING ASM

$128.99

$

Usually ships in 3-6 days

0

16

Toro 136-5636

KNOB-LOCK, CAM

$12.99

$

Usually ships in 3-6 days

0

17

Toro 131-4699

WASHER-PLASTIC

$5.49

$

Usually ships in 3-6 days

0

19

Toro 133-5105

CAM LOCK ASM

$37.99

$

Usually ships in 3-6 days

0

20

Toro 133-4401

BOLT-SHOULDER

$14.99

$

Usually ships in 3-6 days

0

22

Toro 136-8979

TRAILING ARM

$34.99

$

Usually ships in 3-6 days

0

23

Toro 127-0146

BEARING-FLANGE

$7.99

$

In Stock, only 2 left!

0

24

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

25

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

26

Toro 137-1968

ROD-PIVOT

$28.99

$

Usually ships in 3-6 days

0

33

Toro 139-2367

SEAT ASM

$640.99

$

Usually ships in 3-6 days

0

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 138-7214

BRACKET-STOP, SEAT

$2.99

$

Usually ships in 3-6 days

0

39

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 2 left!

0

40

Toro 131-4008-03

BRACKET-LATCH, SEAT

$6.49

$

Usually ships in 3-6 days

0

43

Toro 137-7031

SUBFRAME-REAR

$96.99

$

Usually ships in 3-6 days

0

44

Toro 133-7089-03

PLATE-BACKER

$7.99

$

Usually ships in 3-6 days

0

45

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

47

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 7

0

49

Toro 133-9318-03

BRACKET-SHOCK MOUNT, UPPER (LH)

$15.99

$

Usually ships in 3-6 days

0

50

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 20+

0

51

Toro 133-5190

FLOORMAT

$78.99

$

Usually ships in 3-6 days

0

52

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

53

Toro 133-5198

DECAL-ADJUSTMENT, RIDE

$24.99

$

Usually ships in 3-6 days

0

54

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

55

Toro 3-6803

WASHER-ADJUSTING

$8.49

$

Usually ships in 3-6 days

0

59

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

60

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

61

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

62

Toro 125-5239

BUSHING-FLANGE

$7.99

$

In Stock, Qty 6

0

63

Toro 137-1969-03

TUBE-ARM, TRAILING

$23.99

$

Usually ships in 3-6 days
