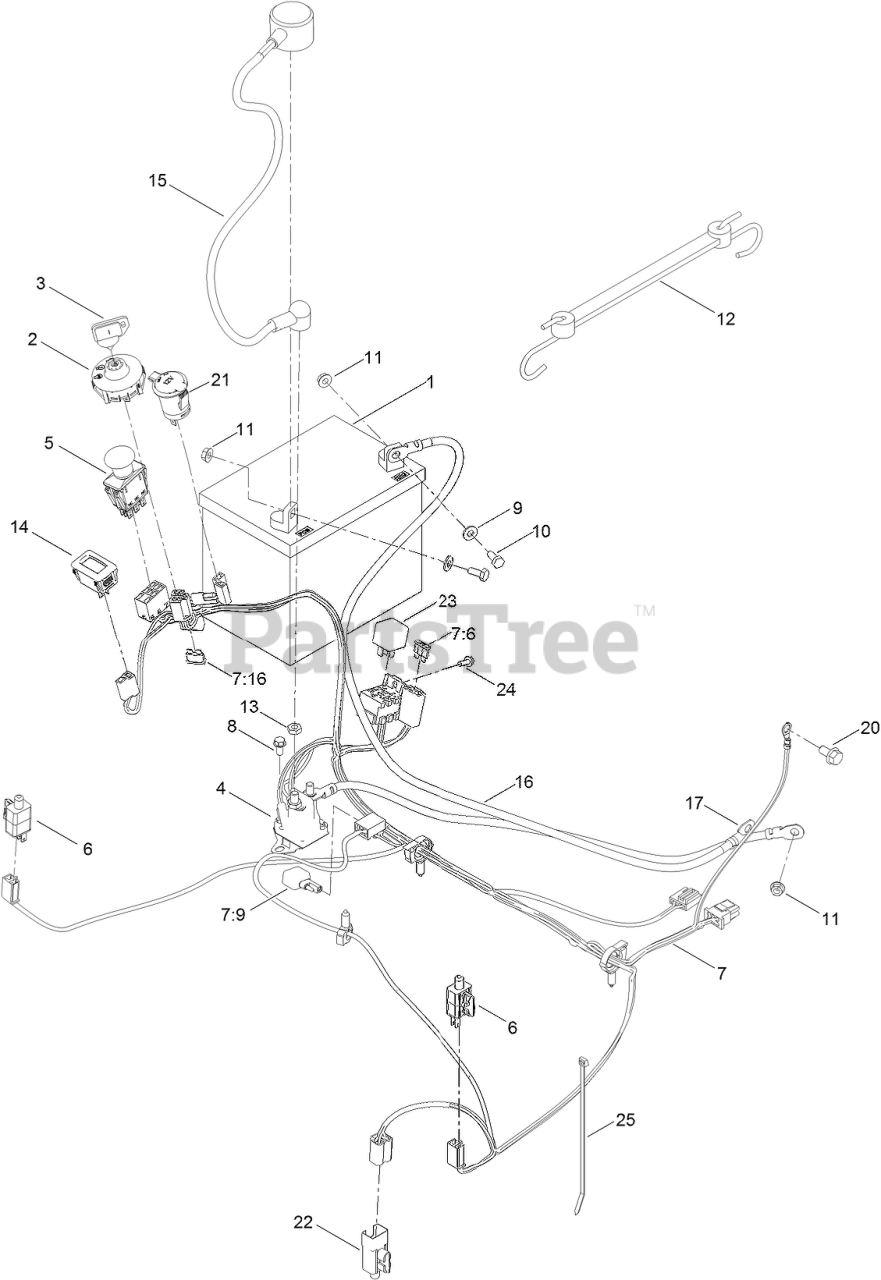

75210 - Toro 48" TimeCutter HD MyRide Zero-Turn Mower (SN: 404314000 - 999999999) Electrical Assembly Parts Diagram

48" TimeCutter HD MyRide Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 105-1692

BATTERY

$

$

Not available

2

Toro 137-4100

SWITCH-IGNITION

$35.99

$

In Stock, Qty 20+

0

3

Toro 63-8360

KEY-IGNITION

Note: Not illustrated

$5.99

$

In Stock, Qty 12

0

4

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 19

0

5

Toro 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

6

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

7

Toro 137-7002

HARNESS-WIRE

$221.99

$

Usually ships in 3-6 days

0

7:6

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

7:9

Toro 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

7:16

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

13

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

14

Toro 120-2244

HOURMETER

$69.99

$

In Stock, only 1 left!

0

15

Toro 115-3864

CABLE-BATTERY, POSITIVE

$30.99

$

In Stock, only 1 left!

0

16

Toro 136-7473

CABLE-BATTERY, POSITIVE

$22.99

$

Usually ships in 3-6 days

0

17

Toro 117-7240

CABLE-BATTERY, NEGATIVE

$23.99

$

Usually ships in 3-6 days

0

20

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

21

Toro 126-6499

PORT-POWER, 12V

$15.99

$

In Stock, only 2 left!

0

22

Toro 99-7408

SWITCH-REVERSE

$28.99

$

In Stock, Qty 13

0

23

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

24

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

25

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
