75210 - Toro 48" TimeCutter HD MyRide Zero-Turn Mower (SN: 401000000 - 404313999) Body Styling and Fuel Tank Assembly Parts Diagram

48" TimeCutter HD MyRide Zero-Turn Mower

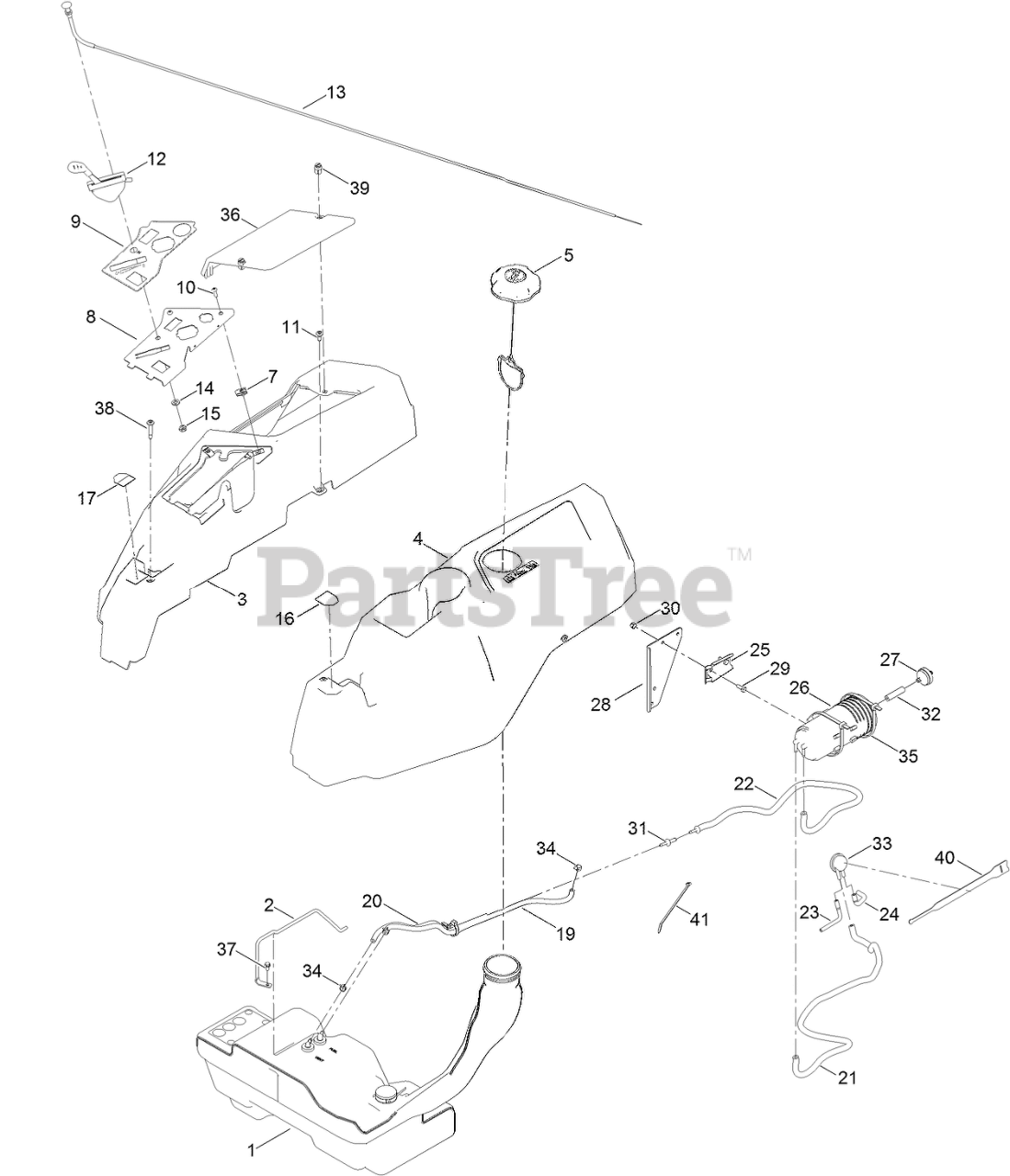

Body Styling and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 133-4484

FUEL TANK ASM
(Superseded to 144-5303)

$296.99

$

Usually ships in 3-6 days

0

2

Toro 136-4180

ROD-HOLD DOWN

$12.99

$

Usually ships in 3-6 days

0

3

Toro 133-9307

POD-RH

$84.99

$

Usually ships in 3-6 days

0

4

Toro 133-9315

POD-LH

$84.99

$

Usually ships in 3-6 days

0

5

Toro 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

7

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

8

Toro 133-9346-03

PANEL-CONTROL

$71.99

$

Usually ships in 3-6 days

0

9

Toro 133-9263

DECAL-CONTROL W/CHOKE

$15.99

$

Usually ships in 3-6 days

0

10

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

12

Toro 136-5622

CABLE-THROTTLE

$42.99

$

Usually ships in 3-6 days

0

13

Toro 112-9753

CABLE-CHOKE

$45.99

$

In Stock, Qty 18

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

15

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

16

Toro 136-4243

DECAL-LEVER, CONTROL (LH)

$3.49

$

Usually ships in 3-6 days

0

17

Toro 136-4244

DECAL-LEVER, CONTROL (RH)

$3.49

$

Usually ships in 3-6 days

0

19

Toro 109-0281

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

20

Toro 110-5701

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

21

Toro 109-0307

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

22

Toro 136-7526

HOSE, FUEL

$12.99

$

Usually ships in 3-6 days

0

23

Toro 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

24

Toro 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

25

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

26

Toro 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

27

Toro 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, Qty 14

0

28

Toro 133-9292-03

CARB CANISTER BRACKET

$25.99

$

Usually ships in 3-6 days

0

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

31

Toro 117-5399

ADAPTOR-ORIFICE

$3.49

$

Usually ships in 3-6 days

0

32

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

33

Toro 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

34

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

35

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

36

Toro 133-9308

COVER-BATTERY

$23.99

$

In Stock, Qty 5

0

37

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

38

Toro 136-4195

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

39

Toro 121-5840

FASTENER

$6.49

$

In Stock, Qty 20+

0

40

Toro 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0

41

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

42

Toro 138-2522

SLEEVE-FUEL LINE PROTECTOR

Note: Not illustrated

$7.49

$

Usually ships in 3-6 days

0
