7500 - Lawn-Boy Walk-Behind Mower (SN: 100000001 - 199999999) (1971) Model 6275 Professional Mower Parts List Parts Diagram

Walk-Behind Mower

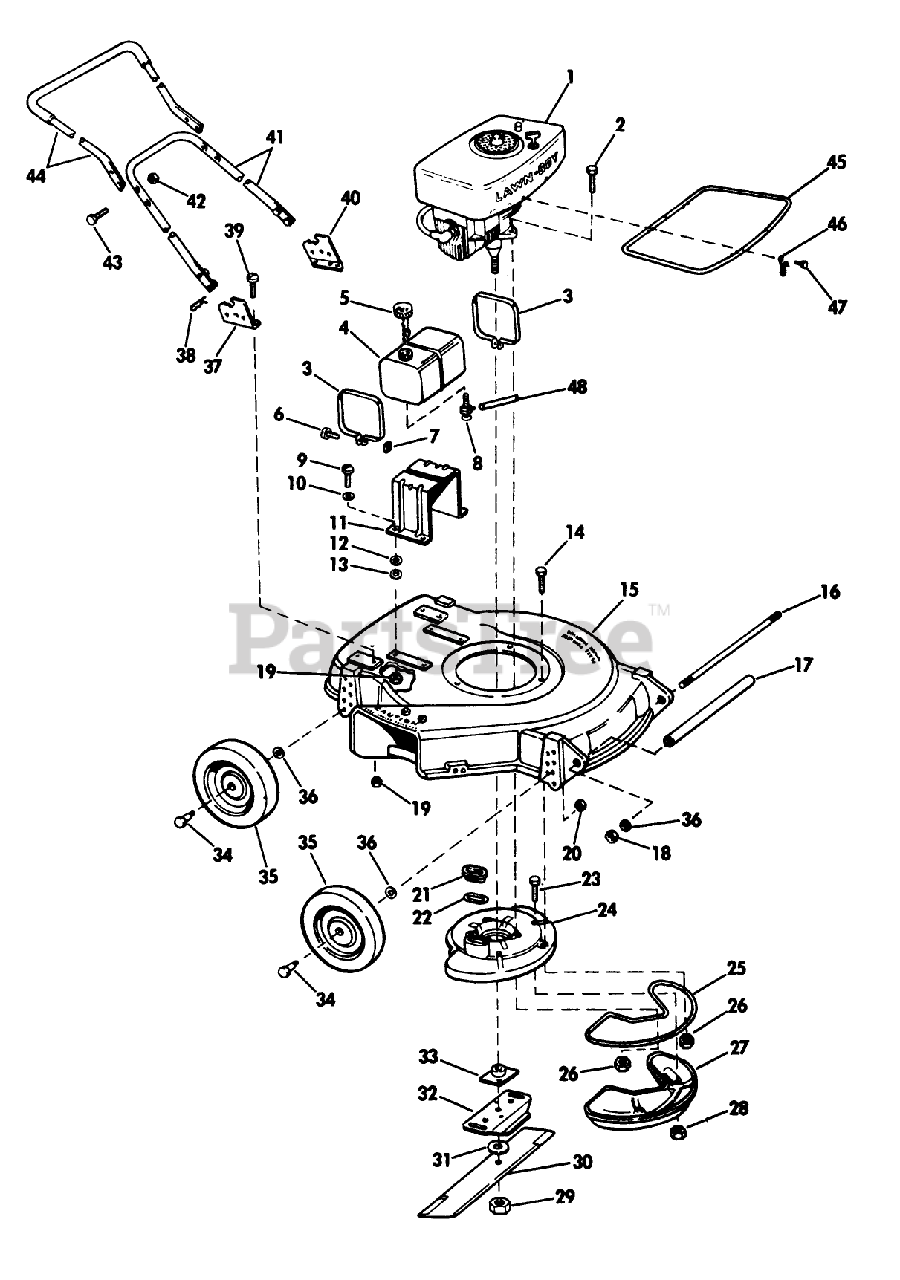

Model 6275 Professional Mower Parts List Parts Diagram

  • Title

1

Lawn-Boy 679423

DISCONTINUE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

2

Lawn-Boy 604039

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

3

Lawn-Boy 606631

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

4

Lawn-Boy 679163

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

5

Lawn-Boy 679166

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

6

Lawn-Boy 310356

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

7

Lawn-Boy 309859

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Currently unavailable

8

Lawn-Boy 677052

VALVE&SCREEN SM

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$23.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 606144

BOLT PIONEER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

10

Lawn-Boy 306405

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

11

Lawn-Boy 606632

See Supercession: 611260
(Superseded to 611260)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$108.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 604995

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

13

Lawn-Boy 602945

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

14

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

15

Lawn-Boy 679146

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

16

Lawn-Boy 606634

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

17

Lawn-Boy 606635

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

18

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 8

0

19

Lawn-Boy 603477

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

20

Lawn-Boy 602677

NUT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

21

Lawn-Boy 602717

SLEEVE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$2.99

$

In Stock, Qty 16

0

22

Lawn-Boy 604624

GASKET S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$11.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 604036

See Supercession: 607847
(Superseded to 607847)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

24

Lawn-Boy 604026

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

25

Lawn-Boy 604516

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

26

Lawn-Boy 602830

NUT

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

27

Lawn-Boy 604024

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

28

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$4.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$33.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 605058

WASHER

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$5.99

$

In Stock, Qty 12

0

32

Lawn-Boy 603541

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

33

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$51.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 606638

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

35

Lawn-Boy 678406

See Supercession: 681980
(Superseded to 681980)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$68.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 120177

WASHER, LOCK

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

37

Lawn-Boy 606637

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

38

Lawn-Boy 603927

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

39

Lawn-Boy 602192

SCREW S

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

40

Lawn-Boy 606636

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

41

Lawn-Boy 679167

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

42

Lawn-Boy 603477

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

43

Lawn-Boy 602480

SCREW

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

44

Lawn-Boy 679168

DISCONTINUED
(Superseded to 604601)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

45

Lawn-Boy 606629

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

46

Lawn-Boy 606630

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

47

Lawn-Boy 606628

DISCONTINUE

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available

48

Lawn-Boy 606623

DISCONTINUED

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in mantching colors.

$

$

Not available
