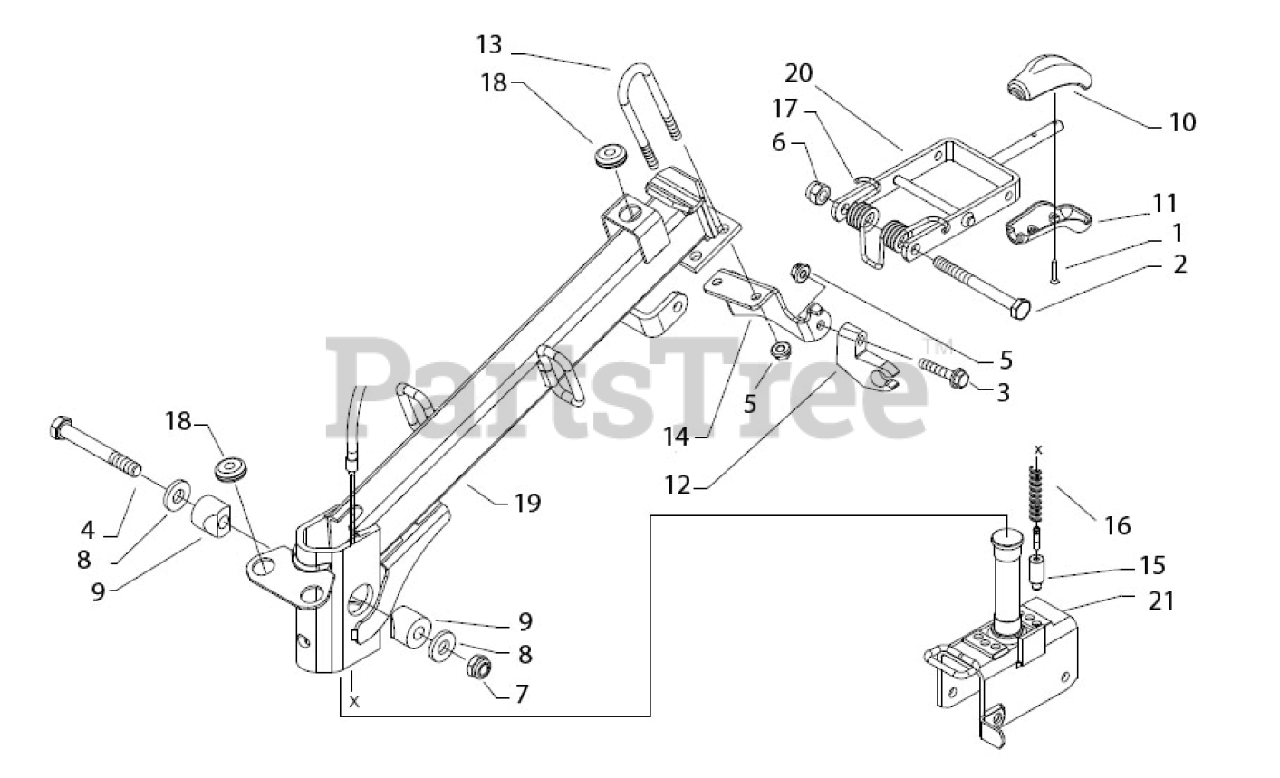

750 (750 PS) - BCS America Two-Wheeled Tractor, Power Safe Steering Column (SN: 898000 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Steering Column (SN: 898000 & Above) Parts Diagram

  • Title

1

BCS America 311.00451

SCREW 3,5X25

Note:

$0.99

$

In Stock, Qty 8

0

2

BCS America 311.11229

SCREW TE M10X110

Note:

$2.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12165

SCREW TE C/F M8X35

Note:

$1.99

$

In Stock, only 1 left!

0

4

BCS America 311.12293

SCREW TE M12X80

Note:

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 312.41084

SELFLOCK NUT M8

Note:

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 312.411

SELFLOCK NUT M10

Note:

$1.49

$

In Stock, only 2 left!

0

7

BCS America 312.41126

SELFLOCK NUT M12

Note:

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 314.211

CUP SPRING

Note:

$

$

Currently unavailable

9

BCS America 521.56917

WEDGE

Note:

$24.99

$

Usually ships in 5-8 days

0

10

BCS America 551.57212

GRIP

Note:

$6.49

$

Usually ships in 5-8 days

0

11

BCS America 551.57213

GRIP

Note:

$6.49

$

In Stock, only 3 left!

0

12

BCS America 552.4334

SUPPORT

Note:

$

$

Not available

13

BCS America 561.5694

U BOLT

Note:

$8.49

$

Usually ships in 5-8 days

0

14

BCS America 561.56974

SUPPORT BRACKET

Note:

$

$

Currently unavailable

15

BCS America 563.56924

FERRULE

Note:

$32.99

$

Usually ships in 5-8 days

0

16

BCS America 580.56918

SPRING

Note:

$4.49

$

Usually ships in 5-8 days

0

17

BCS America 580.56942

SPRING

Note:

$16.99

$

Usually ships in 5-8 days

0

18

BCS America 580.56991

GROMMET, GUARD SUPPORT

Note:

$4.99

$

In Stock, only 3 left!

0

19

BCS America 590.C0125

STEERING COUMN

Note:

$

$

Currently unavailable

20

BCS America 590.5701

LEVER

Note:

$87.99

$

Usually ships in 5-8 days

0

21

590.57011

CONNECTION

Note:

$

$

Not available
