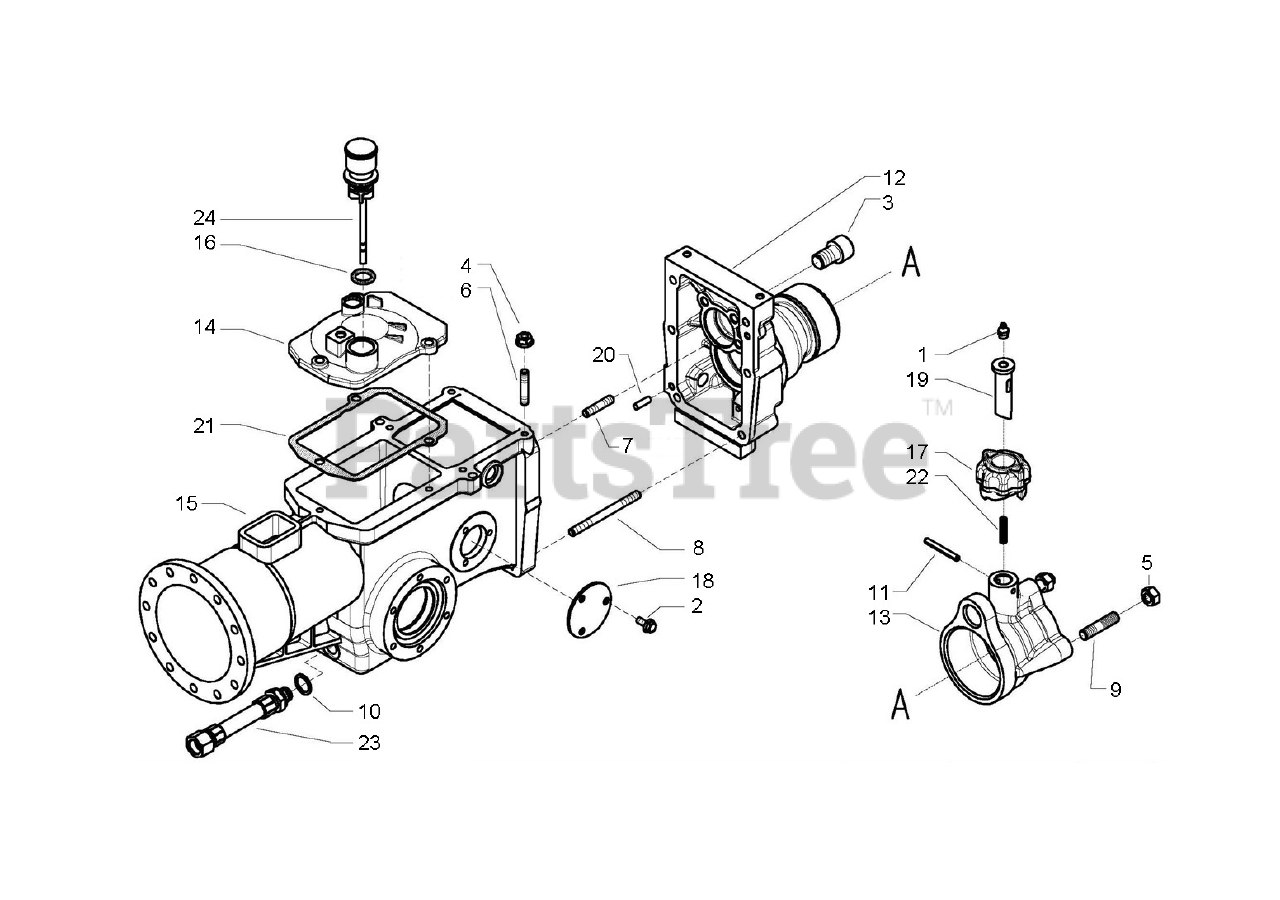

750 (750 PS) - BCS America Two-Wheeled Tractor, Power Safe Gearbox (SN: 898000 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Gearbox (SN: 898000 & Above) Parts Diagram

  • Title

1

BCS America 30000001

LUBRICATOR M10

Note:

$

$

Not available

2

BCS America 31112083

SCREW

Note:

$1.49

$

In Stock, only 1 left!

0

3

31152150

SCREW TCEI M16X25 UNI 5931

Note:

$

$

Not available

4

BCS America 31241084

SELFLOCK NUT M8 6S DIN 6927

Note:

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 31241124

SELFLOCK NUT M12X1,25

Note:

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 31312082

STUD BOLT M8X38X14X20

Note:

$1.99

$

Usually ships in 5-8 days

0

7

31312084

STUD BOLT M8X58X16X16

Note:

$

$

Not available

8

BCS America 31312094

STUD BOLT M8X68X14X36

Note:

$2.49

$

Usually ships in 5-8 days

0

9

BCS America 31312124

STUD BOLT

Note:

$3.99

$

In Stock, only 3 left!

0

10

BCS America 31480184

COPPER WASHER 16,7X22/1,5

Note:

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 34211065

ROLL PIN

Note:

$1.99

$

Usually ships in 5-8 days

0

12

51156702

REAR COVER, 750

Note:

$

$

Not available

13

922C0119

BUSHING COMPLETE

Note:

$

$

Not available

14

BCS America 53143875B

GEARBOX HOUSING COVER

Note:

$

$

Currently unavailable

15

53156202B

BOX CASING

Note:

$

$

Not available

16

BCS America 55102678

RUBBER RING

Note:

$1.49

$

In Stock, Qty 5

0

17

BCS America 552C0017

COVER

Note:

$42.99

$

Usually ships in 5-8 days

0

18

BCS America 56147520Z

COVER

Note:

$

$

Currently unavailable

19

BCS America 561C0013Z

TUBE

Note:

$

$

Currently unavailable

20

BCS America 58043053

CYLINDRICAL PLUG

Note:

$1.49

$

Usually ships in 5-8 days

0

21

BCS America 58043117

COVER GASKET

Note:

$2.99

$

In Stock, only 2 left!

0

22

BCS America 58056646

SPRING

Note:

$11.99

$

Usually ships in 5-8 days

0

23

59056244

HOSE

Note:

$

$

Not available

24

BCS America 59056672

DIPSTICK

Note:

$

$

Not available
