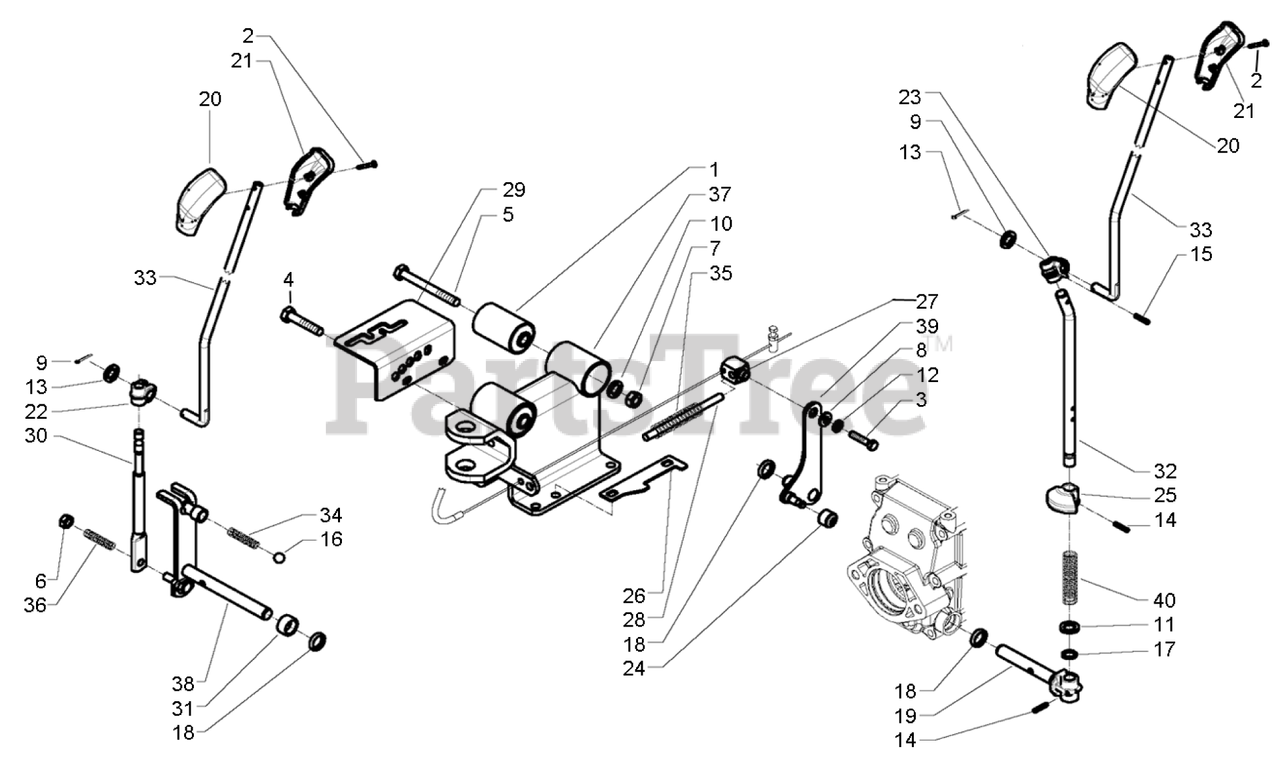

750 (750 PS) - BCS America Two-Wheeled Tractor, Power Safe Controls (SN: 898000 & Above) Parts Diagram

Two-Wheeled Tractor, Power Safe

Controls (SN: 898000 & Above) Parts Diagram

  • Title

1

30010120

SILENT-BLOCK 12X40X58X66

Note:

$

$

Not available

2

BCS America 31100451

SCREW 3,5X25

Note:

$0.99

$

In Stock, Qty 8

0

3

31112149

SCREW TE M8X12

Note:

$

$

Not available

4

BCS America 31112171

SCREW TE C/F M8X16

Note:

$1.99

$

Usually ships in 5-8 days

0

5

31112701

SCREW TE M12X100

Note:

$

$

Not available

6

BCS America 31241080

SELFLOCK NUT M8

Note:

$0.99

$

In Stock, Qty 11

0

7

BCS America 31241120

SELFLOCK NUT M12

Note:

$1.99

$

Usually ships in 5-8 days

0

8

31411084

WASHER M8,4X17

Note:

$

$

Not available

9

BCS America 31411104

WASHER M10,5X18

Note:

$0.99

$

In Stock, Qty 5

0

10

31411130

WASHER M13X24

Note:

$

$

Not available

11

BCS America 31414130

WASHER M13

Note:

$0.99

$

In Stock, Qty 5

0

12

BCS America 31423084

SPRING WASHER M8,4

Note:

$0.99

$

In Stock, Qty 10

0

13

BCS America 34110028

SPLIT PIN

Note:

$0.99

$

In Stock, only 2 left!

0

14

BCS America 34213020

ROLL PIN M4X20 SPIROL

Note:

$1.49

$

Usually ships in 5-8 days

0

15

BCS America 34213024

ROLL PIN M4X24 SPIROL

Note:

$1.49

$

Usually ships in 5-8 days

0

16

BCS America 37911532

BALL 15/32

Note:

$1.49

$

In Stock, only 2 left!

0

17

BCS America 38111191

0-RING M11.91X2.62)

Note:

$0.99

$

In Stock, only 1 left!

0

18

BCS America 38211400

OIL SEAL M14X22X4

Note:

$7.99

$

Usually ships in 5-8 days

0

19

BCS America 52357250

PIN

Note:

$132.99

$

Usually ships in 5-8 days

0

20

BCS America 55157212

GRIP

Note:

$6.49

$

In Stock, only 2 left!

0

21

BCS America 55157213

GRIP

Note:

$6.49

$

In Stock, only 3 left!

0

22

BCS America 55242528

JOINT

Note:

$11.99

$

In Stock, only 2 left!

0

23

BCS America 55248379

JOINT

Note:

$8.99

$

Usually ships in 5-8 days

0

24

BCS America 55257313

ROLLER

Note:

$6.49

$

Usually ships in 5-8 days

0

25

BCS America 55257321

STOP

Note:

$13.99

$

In Stock, only 1 left!

0

26

56147560

STOP

Note:

$

$

Not available

27

56147574

SMALL BLOCK

Note:

$

$

Not available

28

56147672

GUIDE PIN

Note:

$

$

Not available

29

56156809H

GEAR SELECTOR

Note:

$

$

Not available

30

56157271N

COMMAND LEVER

Note:

$

$

Not available

31

56157303Z

SPACER

Note:

$

$

Not available

32

BCS America 56157324

PTO LEVER

Note:

$48.99

$

In Stock, only 1 left!

0

33

56157364N

PULL ROD

Note:

$

$

Not available

34

BCS America 58043176

SPRING

Note:

$2.49

$

In Stock, only 1 left!

0

35

58047671

SPRING

Note:

$

$

Not available

36

BCS America 58057232Z

SPRING

Note:

$

$

Currently unavailable

37

59057008

SUPPORT

Note:

$

$

Not available

38

59057300N

GEAR LEVER

Note:

$

$

Not available

39

59057317

LEVER

Note:

$

$

Not available

40

BCS America F0831193010

SPRING DM.15X70

Note:

$8.99

$

Usually ships in 5-8 days

0
