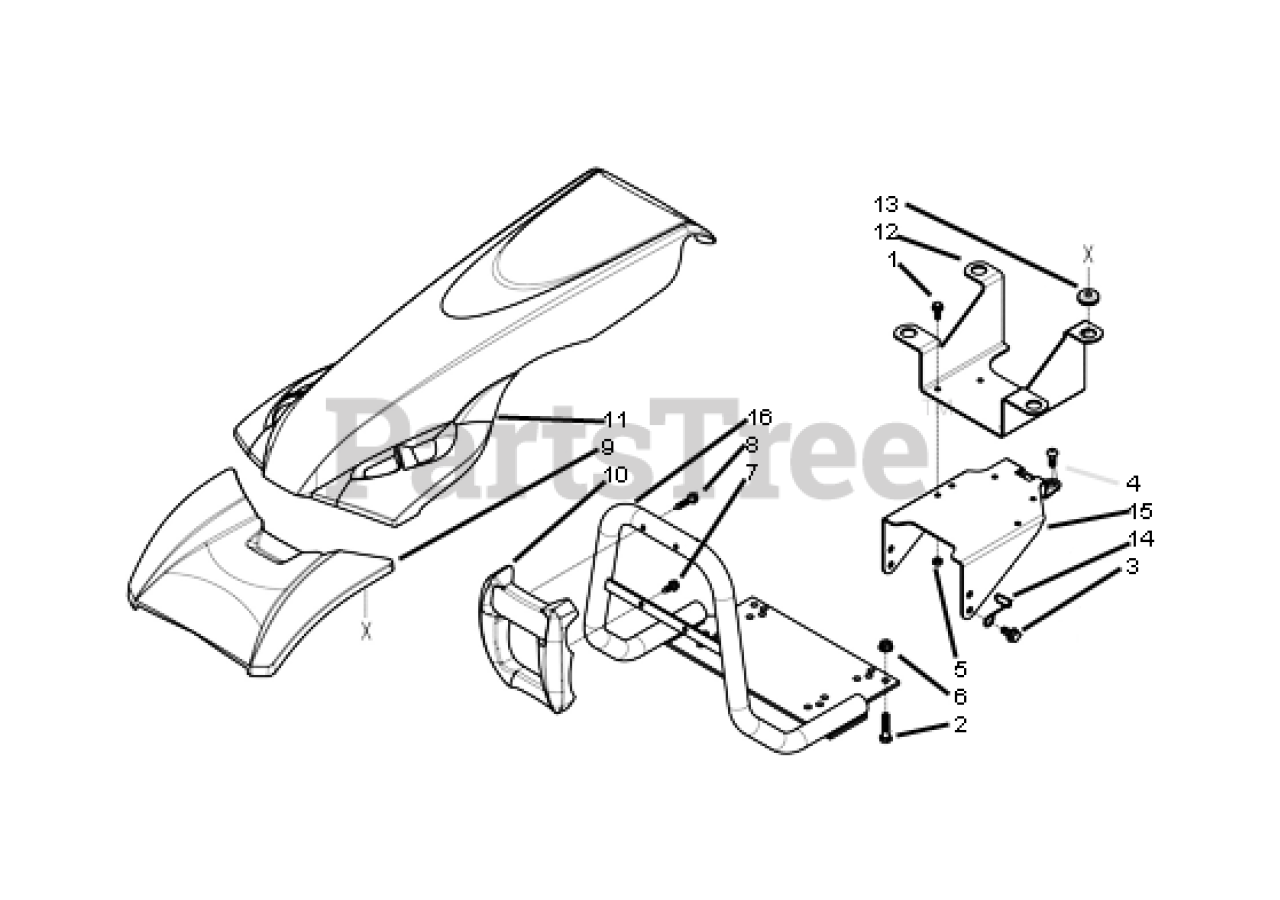

750 (750 PS) - BCS America Two-Wheeled Tractor, Power Safe Bumper & Accessories (SN: 898000 - 963639) Parts Diagram

Two-Wheeled Tractor, Power Safe

Bumper & Accessories (SN: 898000 - 963639) Parts Diagram

  • Title

1

BCS America 31112085

SCREW HEX M6X16

Note:

$1.99

$

Usually ships in 5-8 days

0

2

BCS America 31112154

CAPSCREW M8X40

Note:

$1.99

$

In Stock, only 4 left!

0

3

BCS America 31112171

SCREW M816

Note:

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 31121008

CAPSCREW M8X40

Note:

$2.99

$

Usually ships in 5-8 days

0

5

BCS America 31241060

NUT, LOCK M6 STANDARD

Note:

$0.99

$

In Stock, only 4 left!

0

6

BCS America 31241084

NUT, LOCK M8 FLANGED

Note:

$1.49

$

Usually ships in 5-8 days

0

7

31510099

SCREW, SELF TAPPING M6.3X38

Note:

$

$

Not available

8

BCS America 31510100

SCREW, SELF TAPPING M6.3X19

Note:

$1.49

$

In Stock, only 2 left!

0

9

BCS America 55257621

LOWER GUARD

Note:

$73.99

$

Usually ships in 5-8 days

0

10

55257622

BUMPER GUARD

Note:

$

$

Not available

11

55257623

GUARD, LONG STEERING COLUMN

Note:

$

$

Not available

12

BCS America 56157399

GUARD SUPPORT

Note:

$81.99

$

Usually ships in 5-8 days

0

13

BCS America 58056991

GROMMET, GUARD SUPPORT

Note:

$4.99

$

In Stock, only 3 left!

0

14

BCS America 58057266

GUIDE, CABLE

Note:

$8.49

$

In Stock, only 1 left!

0

15

56156241N

SUPPORT

Note:

$

$

Not available

16

BCS America 59053021R

BUMPER HONDA GX390

Note:

$

$

Currently unavailable
