75-48XS02 - Toro 48" Side-Discharge Mower Deck (1977) 48" ROTARY MOWER (VEHICLE IDENTIFICTION NUMBER 75-48XS02) Parts Diagram

48" Side-Discharge Mower Deck

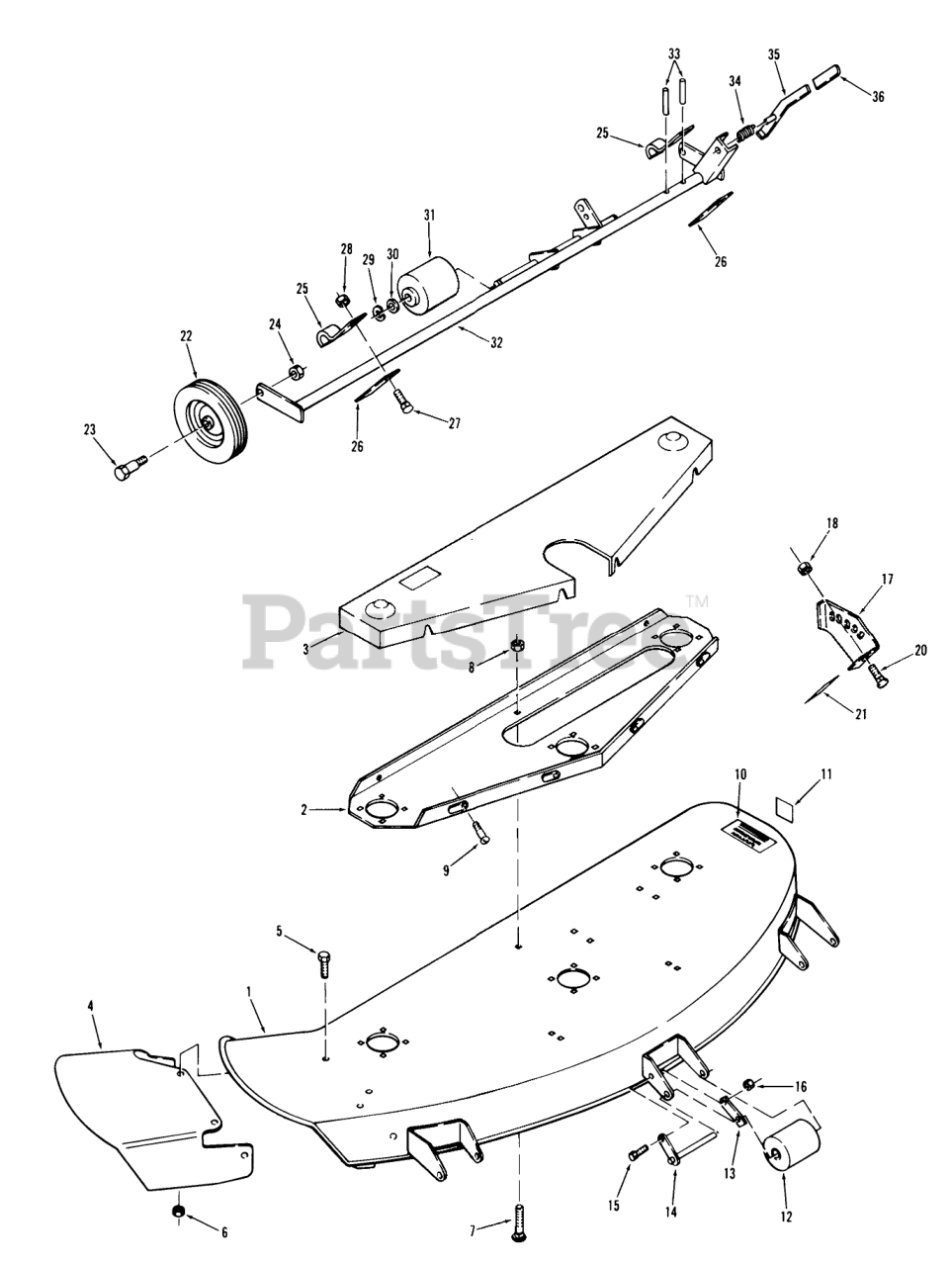

48" ROTARY MOWER (VEHICLE IDENTIFICTION NUMBER 75-48XS02) Parts Diagram

  • Title

1

Toro 106151

ASSY-48 MOWER DEC R
(Superseded to 106151-01)

$

$

Not available

2

Toro 6759

Support

$

$

Not available

3

Toro 106081

COVER R

$

$

Not available

4

Toro 105961

Chute Extension
(Superseded to 112565-01)

$

$

Not available

5

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 15

0

6

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

7

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

8

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

9

Toro 960150

Screw
(Superseded to 3234-26)

$3.49

$

In Stock, Qty 15

0

10

Toro 105002

Caution Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

11

Toro 102832

DECAL-WHEEL HORSE

$

$

Not available

12

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

13

Toro 102773

SPRING ROLLER STOP

$

$

Not available

14

Toro 102770

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, Qty 5

0

15

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

16

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

17

Toro 102655

LH QUADRANT R

$

$

Not available

18

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

20

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

21

Toro 105205

Decal-Height Adj.

$

$

Not available

22

Toro 103665

Wheel
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

23

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

24

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

25

Toro 102615

Machine Bolt
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

26

Toro 102618

Bar
(Superseded to 110838-03)

$

$

Not available

27

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

28

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

29

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

30

Toro 920211

WASHER

$

$

Not available

30

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

31

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

32

Toro 104767

Gage Wheel Support
(Superseded to 108801)

$

$

Not available

33

Toro 933190

PIN-SPIROL

$

$

Not available

34

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

35

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

36

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0
