75-48XS02 - Toro 48" Side-Discharge Mower Deck (1977) 48" ROTARY MOWER (VEHICLE IDENTIFICATION NUMBER 75-48XS02) Parts Diagram

48" Side-Discharge Mower Deck

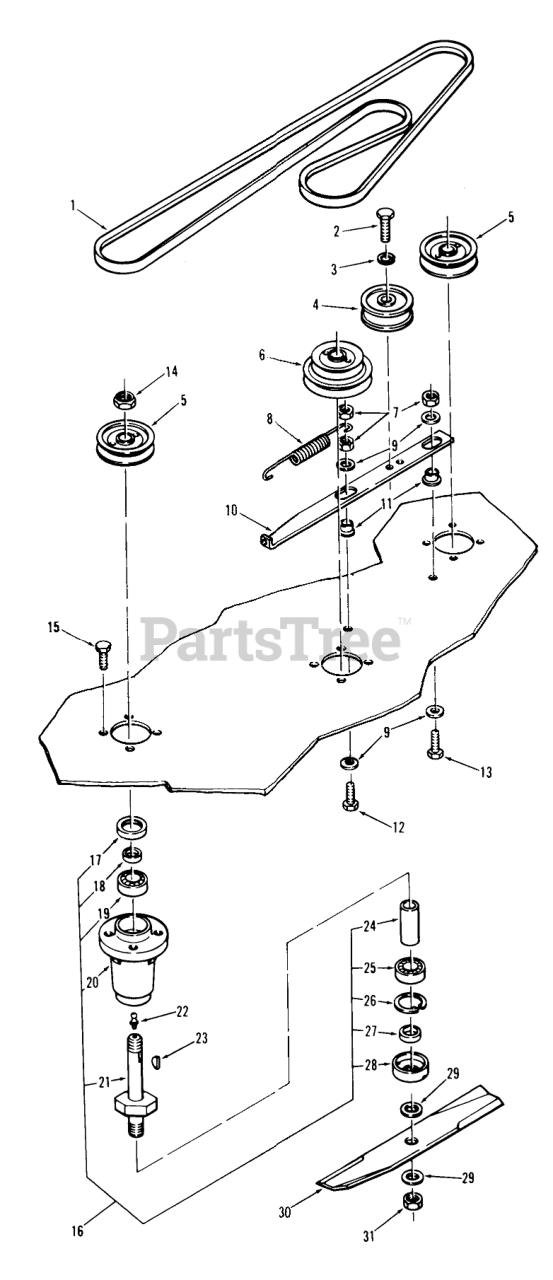

48" ROTARY MOWER (VEHICLE IDENTIFICATION NUMBER 75-48XS02) Parts Diagram

  • Title
1

Toro 1594

V-BELT

$39.99

$

In Stock, only 1 left!

0

2

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

3

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

4

Toro 106144

Idler Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

5

Toro 106074

PULLEY-BLADE DRIVE

$162.99

$

Usually ships in 3-6 days

0

6

Toro 106073

PULLEY-48 MOWER SPDL

$274.99

$

Usually ships in 3-6 days

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

8

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

10

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

11

Toro 106121

Bushing/Spacer
(Superseded to 107674)

$1.99

$

In Stock, Qty 17

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

16

Toro 106062

Spindle Assembly
(Superseded to 99-5361)

$

$

Not available

17

$14.99

$

In Stock, Qty 6

0

18

Toro 106070

SPACER-SEAL

$19.99

$

Usually ships in 3-6 days

0

19

Toro 106085

BEARING-BALL

$21.99

$

Usually ships in 3-6 days

0

20

Toro 106063

HOUSING-SPINDLE

$

$

Not available

21

Toro 106064

Spindle Shaft
(Superseded to 99-5362)

$165.99

$

Usually ships in 3-6 days

0

22

Toro 1030

Zerk

$

$

Not available

23

Toro 937156

Hi-Pro Key 3/16 x 5/8
(Superseded to 937222)

$3.49

$

In Stock, Qty 14

0

24

Toro 106069

SPACER

$21.99

$

Usually ships in 3-6 days

0

25

Toro 106084

BEARING-BALL

$21.99

$

Usually ships in 3-6 days

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

27

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

29

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

30

Toro 106078

Blade
(Superseded to 106637)

$101.99

$

In Stock, only 1 left!

0

31

Toro 915007

Nut
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 9

0
