75-48XS02 - Toro 48" Side-Discharge Mower Deck (1977) 48" ROTARY MOWER (VEHICLE IDENTIFICATION NUMBER 75-48XS02) Parts Diagram

48" Side-Discharge Mower Deck

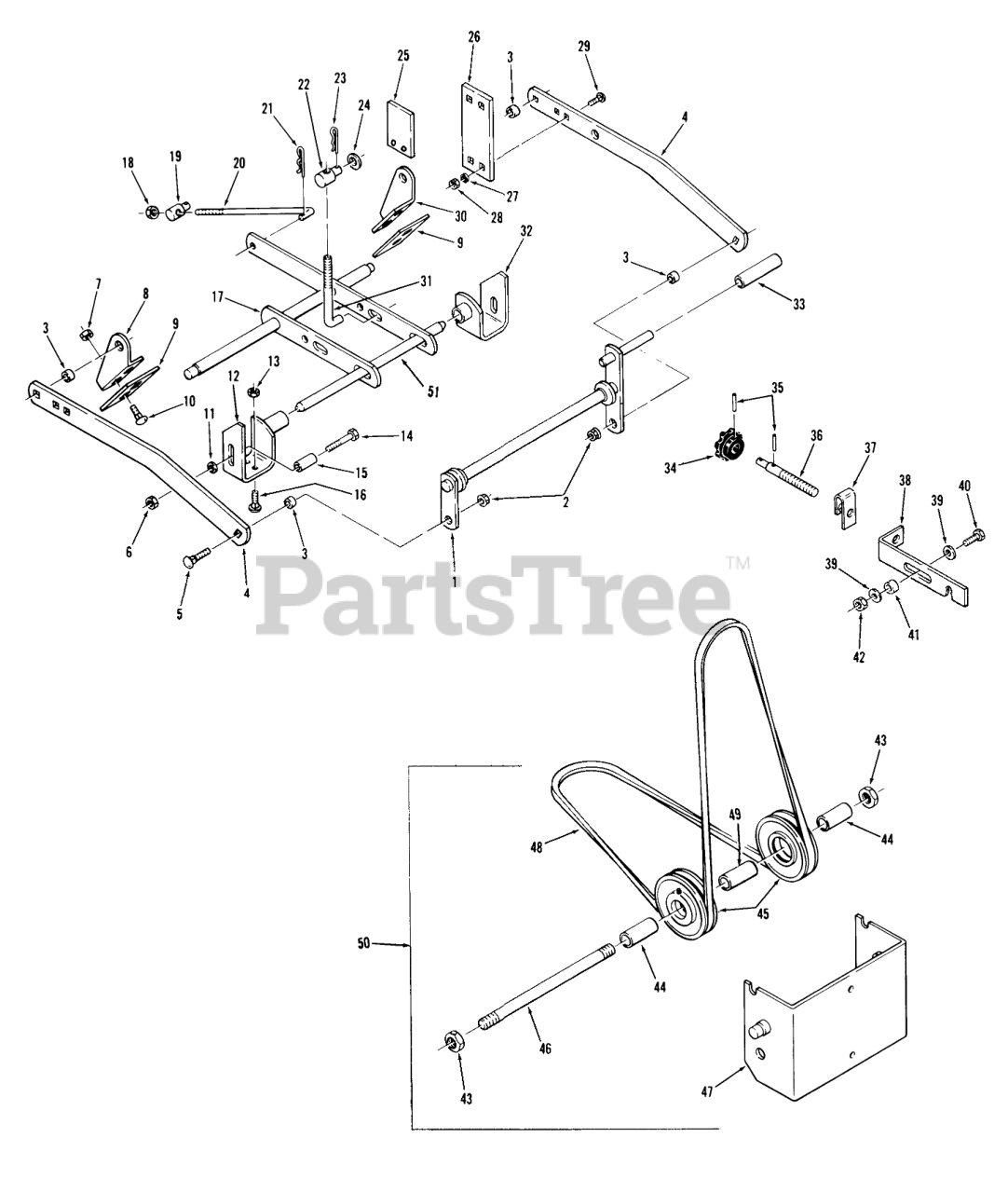

48" ROTARY MOWER (VEHICLE IDENTIFICATION NUMBER 75-48XS02) Parts Diagram

  • Title

1

Toro 100980

Hitch Assy.

$

$

Not available

2

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

3

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

4

Toro 101777

Bar Draft
(Superseded to 101777-01)

$100.99

$

Usually ships in 3-6 days

0

5

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

6

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

8

Toro 101776

Bracket-R.H.
(Superseded to 101776-01)

$39.99

$

Usually ships in 3-6 days

0

9

Toro 104966

PLATE

$

$

Not available

10

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

11

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

12

Toro 103356

Bracket-RH Front
(Superseded to 107928)

$

$

Not available

13

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

14

Toro 908049

7/16-14X13/4 HEX BLT

$

$

Not available

15

Toro 6595

SPACER-BEARING

$

$

Not available

16

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

17

Toro 104769

Leveler Ass-y.
(Superseded to 92-0981-03)

$195.99

$

Usually ships in 3-6 days

0

18

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

19

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

20

Toro 102035

ROD-LEVELER

$60.99

$

Usually ships in 3-6 days

0

21

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

22

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

23

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

24

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

25

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

26

Toro 103361

PLATE-BUMPER R

$

$

Not available

27

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

28

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

29

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 14

0

30

Toro 101775

Bracket-L.H.
(Superseded to 101775-01)

$39.99

$

Usually ships in 3-6 days

0

31

Toro 102029

LIFT ROD

$54.99

$

Usually ships in 3-6 days

0

32

Toro 103357

LH FT DECK BRKT A R

$

$

Not available

33

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

34

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

35

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

36

Toro 100983

HITCH ADJ SCREW

$

$

Not available

37

Toro 102861

Detent Spring

$

$

Not available

38

Toro 100996

Hitch Adjustment Link

$

$

Not available

39

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

40

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

41

Toro 100283

SPACER

$16.99

$

Usually ships in 3-6 days

0

42

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

43

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

44

Toro 102263

SPACER FRONT PULL R

$

$

Not available

45

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 3 left!

0

46

Toro 102264

SHAFT FRONT PULLEY

$

$

Not available

47

Toro 102260

Shield Assy.

$

$

Not available

48

Toro 102868

V BELT

$89.99

$

Usually ships in 3-6 days

0

49

Toro 104192

SPACER-FRONT PULLEY

$

$

Not available

50

Toro 101652

S.A. Front Idler-Complete

$

$

Not available

51

Toro 103360

SHAFT-FRONT R

$

$

Not available
