75-48XS01 - Toro 48" Side-Discharge Mower Deck (1977) 48" ROTARY MOWER(VEHICLE IDENTIFICATION NUMBER 75-48XS01) Parts Diagram

48" Side-Discharge Mower Deck

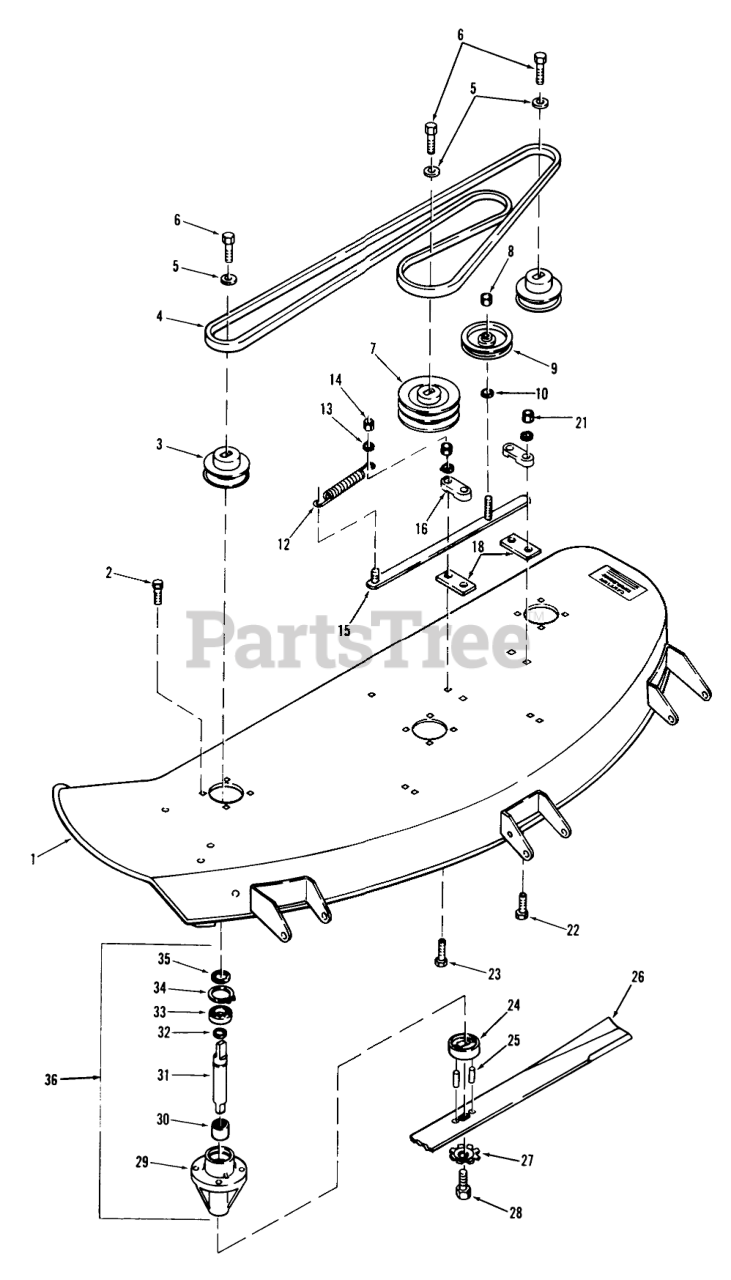

48" ROTARY MOWER(VEHICLE IDENTIFICATION NUMBER 75-48XS01) Parts Diagram

  • Title
1

Toro 105966

Deck
(Superseded to 106151-01)

$

$

Not available

2

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

3

Toro 6757

Pulley-Right & Left
(Superseded to 106849)

$268.99

$

Usually ships in 3-6 days

0

4

Toro 1594

V-BELT

$39.99

$

In Stock, only 1 left!

0

5

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

6

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

7

Toro 6756

Pulley-Center
(Superseded to 106848)

$

$

Not available

8

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

9

Toro 6769

Pulley-Idler
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

10

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

12

Toro 6651

SPRING R

$24.99

$

In Stock, only 1 left!

0

13

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

14

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

15

Toro 6715

ASSY BAR IDLER SUPPO

$

$

Not available

16

Toro 6720

Side Block
(Superseded to 742659)

$

$

Not available

18

Toro 6748

SLIDE

$

$

Not available

21

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

22

Toro 900039

Bolt-Carriage
(Superseded to 3230-3)

$1.49

$

In Stock, Qty 20+

0

23

Toro 900040

Bolt-Carriage
(Superseded to 3230-4)

$3.99

$

In Stock, Qty 6

0

24

Toro 104374

Cup-Spindle
(Superseded to 102784)

$

$

Not available

25

Toro 933210

SPIROL ROLL PIN

$3.49

$

Usually ships in 3-6 days

0

26

Toro 100202

BLADE KIT 48 LF

$

$

Not available

27

Toro 1336

WASHER

$

$

Not available

28

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

29

Toro 102775

HOUSING SPINDLE

$

$

Not available

30

Toro 100289

NEEDLE BEARING

$68.99

$

Usually ships in 3-6 days

0

31

Toro 104890

SHAFT SPINDLE

$157.99

$

Usually ships in 3-6 days

0

32

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

33

Toro 101411

BEARING

$130.99

$

Usually ships in 3-6 days

0

34

Toro 936029

INT SNAP RING

$3.49

$

Usually ships in 3-6 days

0

35

Toro 1536

BUSHING

$

$

Not available

36

Toro 104891

Spindle Assy.

$

$

Not available
