75 (0340012U) - International Harvester Riding Mower (1972 - 1981) Transmission Drive & Clutch Controls Parts Diagram

Riding Mower

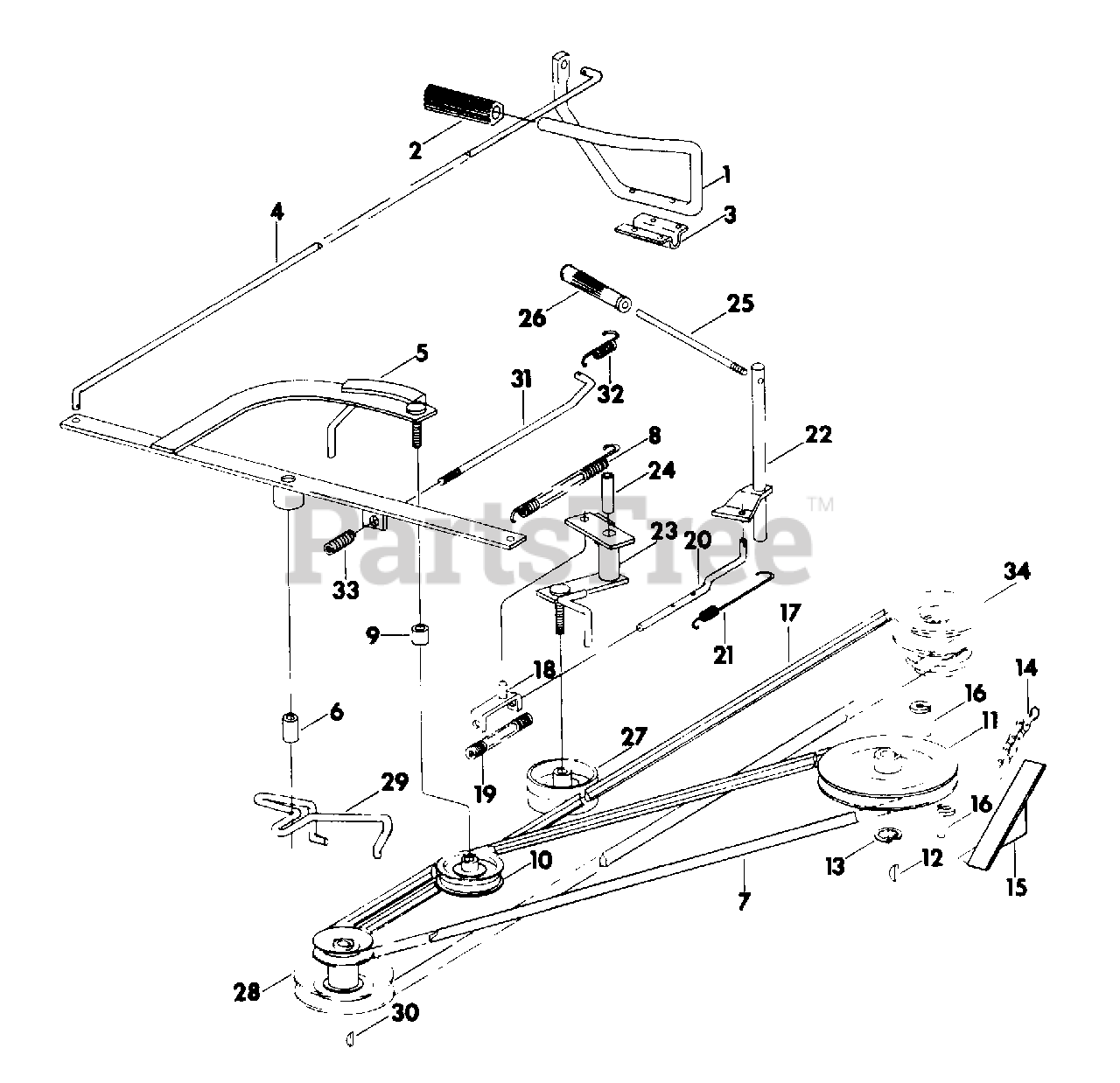

Transmission Drive & Clutch Controls Parts Diagram

  • Title

1

Cub Cadet IH-493530-R1

PEDAL, CLUTCH AND BRAKE

$

$

Not available

Cub Cadet IH-19372-R1

PIN, 1/8 X 7/8 C-Z HV COILED SPRING
(Superseded to 715-3017)

$

$

Not available

2

Cub Cadet IH-487961-R1

PAD, PEDAL

$

$

Not available

3

Cub Cadet IH-488034-R1

CLAMP, PEDAL PIVOT

$

$

Currently unavailable

Cub Cadet IH-180020

SCREW, 1/4-20 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

4

Cub Cadet IH-549100-R2

ROD, CLUTCH CONTROL

$

$

Not available

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .051 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-177923

PIN, 1/8 X 3/4 C-Z COT.
(Superseded to 914-0474)

$

$

Not available

5

Cub Cadet IH-549101-R1

ARM ASSY, SHIFTER PIVOT

$

$

Not available

6

Cub Cadet IH-488015-R1

BUSHING, SHIFTER ARM

$

$

Not available

Cub Cadet IH-21403-R1

WASHER, 13/32 X 1 X 10 GA C-Z

$

$

Not available

Cub Cadet IH-297331-R1

SCREW, 3/8-16 X 2-1/4 W/NYLON PELLET HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-385525-R1

NUT, 3/8-16 CDP HEX LOCK
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

7

Cub Cadet IH-549107-R1

BELT, FORWARD DRIVE
(Superseded to 954-3014)

$30.99

$

In Stock, only 1 left!

0

8

Cub Cadet IH-549109-R1

SPRING, PEDAL RETURN
(Superseded to 932-3010)

$

$

Not available

9

Cub Cadet IH-135523-R1

SPACER, 3/8 STD X .906 PIPE

$

$

Currently unavailable

10

Cub Cadet IH-489074-R92

IDLER, BALL BRG

$

$

Not available

11

Cub Cadet IH-549598-R1

PULLEY, TRANS DRIVE

$

$

Not available

12

Cub Cadet IH-124549

KEY, 3/16 X 3/4 SAE 9 WOODRUFF
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

13

Cub Cadet IH-267805-R1

RING, RETAINING
(Superseded to 916-0115)

$

$

Not available

14

Cub Cadet IH-541312-R1

CHAIN, FINAL REDUCTION

$

$

Not available

Cub Cadet IH-1306D

LINK, #41 SINGLE PITCH CONNECTING
(Superseded to 913-0723)

$

$

Not available

15

Cub Cadet IH-541858-R1

SHIELD ASSY, DRIVE CHAIN

$

$

Currently unavailable

16

Cub Cadet IH-549088-R1

GUIDE, BELT
(Superseded to 747-3030)

$

$

Not available

Cub Cadet IH-611344-R1

WASHER, 11/32 X 7/8 X 16 GA C-Z
(Superseded to 736-0195)

$

$

Not available

Cub Cadet IH-369411-R1

SCREW, 5/16-18 X 5/8 W/NYLON PELLET HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-214168-R1

SCREW, 5/16-18 X 7/8 W/NYLON PELLET HEX-HD CAP

$

$

Currently unavailable

17

Cub Cadet IH-549599-R1

BELT, MOWER DRIVE

$

$

Not available

18

Cub Cadet IH-549276-R1

STRAP ASSY, IPTO

$

$

Not available

Cub Cadet IH-619855-R1

WASHER, 11/32 X 3/4 X 16 GA C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

19

Cub Cadet IH-549278-R1

SPRING, IPTO

$

$

Not available

20

Cub Cadet IH-549279-R1

ROD, MOWER SHIFTER

$

$

Not available

Cub Cadet IH-21872-R1

WASHER, 13/32 X 5/8 X 16 GA C-Z

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

21

Cub Cadet IH-549280-R1

SPRING, IPTO RETURN

$

$

Not available

22

Cub Cadet IH-549285-R2

LEVER ASSY, SHIFTER

$

$

Currently unavailable

23

Cub Cadet IH-549286-R1

LEVER ASSY, SHIFTER ARM

$

$

Currently unavailable

Cub Cadet IH-178372-R1

WASHER, 13/32 X 1-1/4 X 16 GA C-Z

$

$

Currently unavailable

Cub Cadet IH-186282

SCREW, 3/8-16 X 3-1/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-317598-R1

NUT, SPEED PUSH ON

$

$

Not available

24

Cub Cadet IH-549288-R1

BUSHING, IPTO 7 HP

$

$

Not available

25

Cub Cadet IH-549289-R1

ROD, SHIFTER HANDLE

$

$

Not available

Cub Cadet IH-124925

NUT, 3/8-24 ZND HEX JAM

$

$

Currently unavailable

26

Cub Cadet IH-549290-R1

GRIP, SHIFTER HANDLE

$

$

Not available

27

Cub Cadet IH-488094-R1

PULLEY, MOWER SHIFTER IDLER
(Superseded to 956-3013)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 6

0

28

Cub Cadet IH-549695-R1

PULLEY, ENG AND MOWER DRIVE

$

$

Not available

29

Cub Cadet IH-549613-R1

GUIDE, BELT PTO AND FORWARD DRIVE

$

$

Currently unavailable

Cub Cadet IH-490196-R1

WASHER, 13/32 X 1-1/4 X 7 GA C-Z
(Superseded to 936-3055)

$8.49

$

In Stock, only 2 left!

0

Cub Cadet IH-186307

BOLT, 3/8-24 X 2-1/8 ZND HEX-HD

$

$

Currently unavailable

30

Cub Cadet IH-124546

KEY, 5/32 X 5/8 SAE 6 WOODRUFF

$

$

Not available

31

Cub Cadet IH-549074-R1

ROD, BRAKE

$

$

Currently unavailable

Cub Cadet IH-103384

PIN, 1/8 X 3/4 COT.
(Superseded to 914-0474)

$

$

Not available

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X 065 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 HEX-HD
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-9411638

NUT, 5/16-18 CAD HEX. LOCK

$

$

Currently unavailable

32

Cub Cadet IH-549075-R1

SPRING, BRAKE RETURN

$

$

Not available

33

Cub Cadet IH-549076-R1

SPRING, COMPRESSION

$

$

Currently unavailable

34

PULLEY, CENTER

Note: REFER TO MOWER MAIN FRAME AND KNIFE UNIT

$

$

Not available

Cub Cadet IH-475879-R91

CHAIN

$

$

Currently unavailable
