75 (0340012U) - International Harvester Riding Mower (1972 - 1981) Ignition & Starting - Electric Start Parts Diagram

Riding Mower

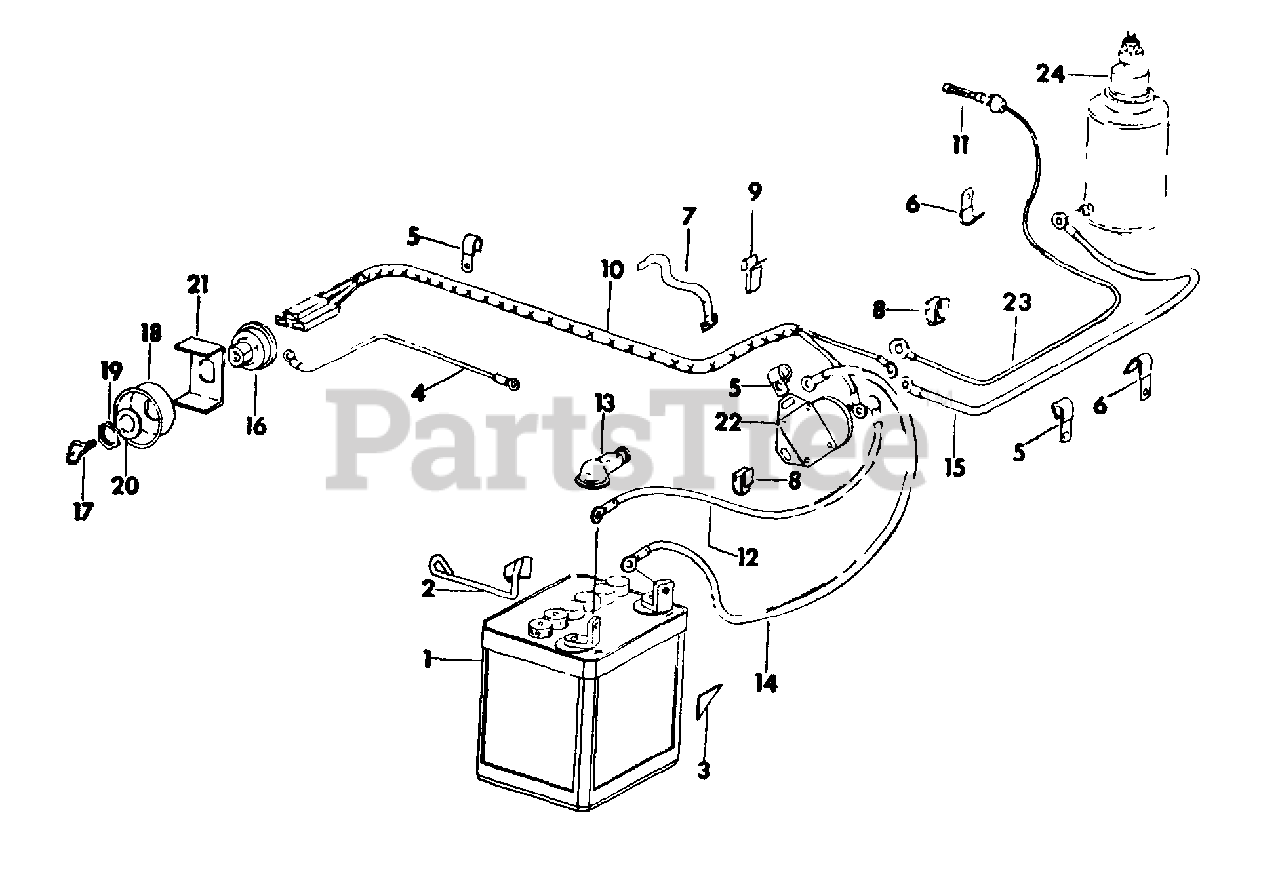

Ignition & Starting - Electric Start Parts Diagram

  • Title
1

Cub Cadet IH-STL-U2

BATTERY, LOW-MAINTENANCE -12 VOLT-

$

$

Currently unavailable

2

Cub Cadet IH-549092-R2

CLAMP ASSY, BATTERY

$

$

Not available

3

Cub Cadet IH-549632-R1

PAD, BATTERY

$

$

Currently unavailable

4

Cub Cadet IH-490192-R1

CABLE ASSY, SWITCH TO GROUND

$

$

Currently unavailable

Cub Cadet IH-455956

SCREW, 8-32 X 5/16 C-Z SLT-HEX-ND MACH

$

$

Currently unavailable

Cub Cadet IH-131182

WASHER, NO 8 C-Z LIGHT LOCK

$

$

Not available

Cub Cadet IH-120622

NUT, 8-32 C-Z HEX
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

5

$

$

Currently unavailable

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZN HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

6

Cub Cadet IH-395228-R1

CLIP, CABLE
(Superseded to 726-0175)

$

$

Not available

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Cub Cadet IH-395357-R1

CLIP, CABLE SPEED

$

$

Currently unavailable

10

Cub Cadet IH-55293-C1

HARNESS, CABLE

$

$

Currently unavailable

11

Cub Cadet IH-539399-R1

FUSE, 32 VOLT, 7-1/2 AMP

$

$

Not available

12

Cub Cadet IH-549634-R1

CABLE, BATTERY POSITIVE

$

$

Currently unavailable

Cub Cadet IH-16897-R1

BOLT, 5/16 X 3/4 C-Z SHORT 50-NK CRG
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet IH-130825-C1

COVER, BATTERY TERMINAL

$

$

Not available

14

Cub Cadet IH-549635-R1

CABLE, BATTERY GROUND

$

$

Not available

Cub Cadet IH-12653-R1

SCREW, 1/4-20 X 3/4 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

15

Cub Cadet IH-549636-R1

CABLE, SWITCH TO STARTER

$

$

Not available

16

Cub Cadet IH-488509-R1

SWITCH, MAGNETO IGNITION AND STARTING

$

$

Not available

17

Cub Cadet IH-131313-C1

KEY, IGNITION SWITCH
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 2 left!

0

18

Cub Cadet IH-402238-R1

SOCKET, IGNITION SWITCH

$

$

Currently unavailable

19

Cub Cadet IH-365502-R1

NUT, MAGNETO IGNITION KEY MOUNTING

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-375431-R1

WASHER, MAGNETO IGNITION KEY MOUNTING

$11.99

$

In Stock, only 1 left!

0

21

Cub Cadet IH-491539-R1

RETAINER, IGNITION SWITCH

$

$

Not available

22

Cub Cadet IH-121613-C1

SWITCH, MAGNETIC
(Superseded to 925-3001)

Note: REPLACES IH-545756-R2

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-114604

WASHER, 1/4 EXT. TOOTH LOCK
(Superseded to 936-0222)

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120367

NUT, 5/16-18 ZND NEW.
(Superseded to 912-0138)

$

$

Not available

Cub Cadet IH-120217

WASHER, NO. 10 ZND LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, 10-32 ZND HEX.
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-453049

SCREW, 1/4-20 X 3/4 C-Z SLT-PAN-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

23

Cub Cadet IH-55292-C1

CABLE, SWITCH TO FUSE

$

$

Not available

24

STARTING MOTOR

Note: FOR COMPONENTS SEE "STARTER MOTOR" ILLUSTRATION AND PARTS LIST.

$

$

Not available

Cub Cadet IH-545756-R2

USE 925-3001 SWITCH-SOLENOID
(Superseded to 925-3001)

$58.99

$

Usually ships in 3-6 days
