75 (0340012U) - International Harvester Riding Mower (1972 - 1981) Front Axle Parts Diagram

Riding Mower

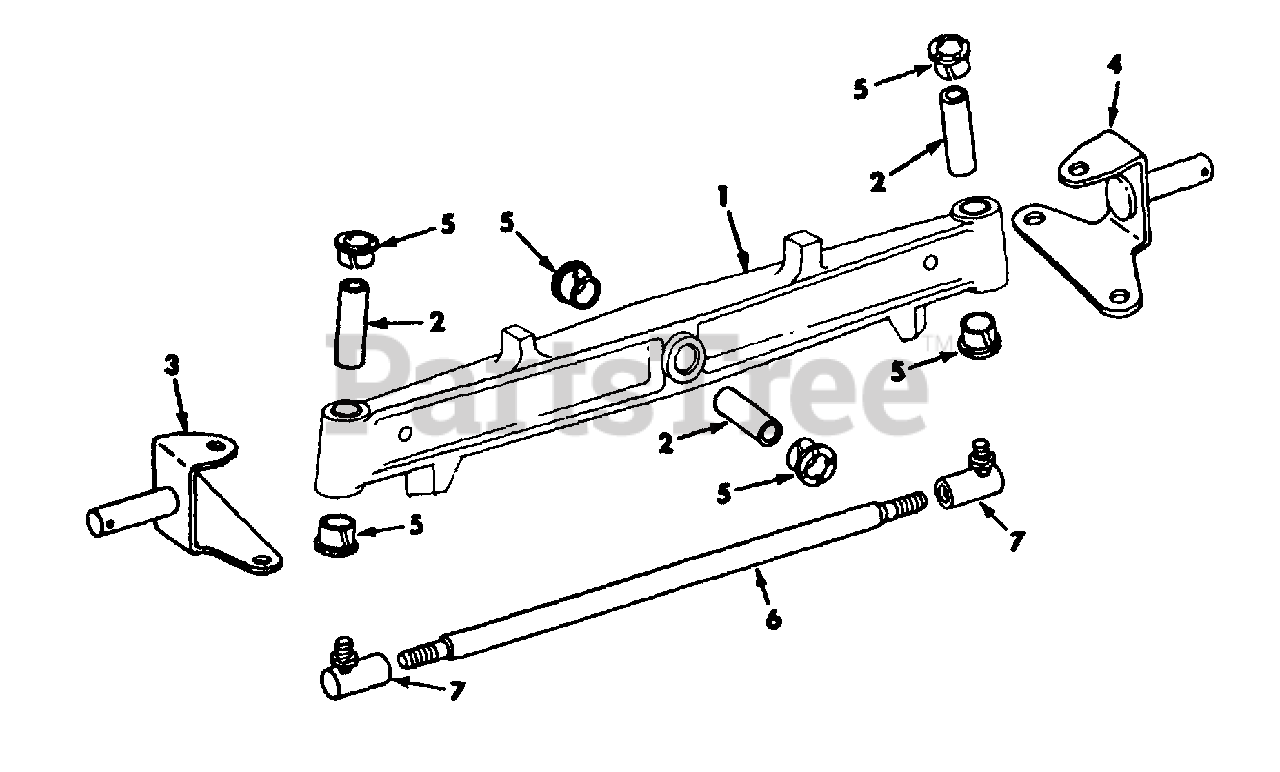

Front Axle Parts Diagram

  • Title

1

Cub Cadet IH-541305-R1

AXLE, FRONT

$

$

Not available

Cub Cadet IH-189305

SCREW, 3/8-16 X 3-1/2 ZND HEX-HD CAP
(Superseded to 710-3085)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-385525-R1

NUT, 3/8-16 GRIPCO LOCK
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

2

Cub Cadet IH-487943-R1

BUSHING, FRONT AXLE

$

$

Not available

3

Cub Cadet IH-487944-R1

ARM ASSY, SPINDLE RH

$

$

Not available

Cub Cadet IH-544258-R1

BOLT, SHOULDER

$

$

Currently unavailable

Cub Cadet IH-385525-R1

NUT, 3/8-16 GRIPCO LOCK
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet IH-487945-R1

ARM ASSY, SPINDLE LH

$

$

Not available

Cub Cadet IH-544258-R1

BOLT, SHOULDER

$

$

Currently unavailable

Cub Cadet IH-385525-R1

NUT, 3/8-16 GRIPCO LOCK
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet IH-307920-R1

BEARING, FRONT AXLE
(Superseded to 731-3015)

$

$

Not available

6

Cub Cadet IH-487949-R1

ROD, TIE

$

$

Not available

Cub Cadet IH-114494

NUT, 3/8-24 HEX, JAM
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

7

Cub Cadet IH-392594-R1

JOINT, TIE ROD
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9413243

NUT, 3/8-24 HEX. LOCK

$

$

Currently unavailable
