75 (0340012U) - International Harvester Riding Mower (1972 - 1981) Engine Parts Diagram

Riding Mower

Engine Parts Diagram

  • Title

Cub Cadet IH-549001-R91

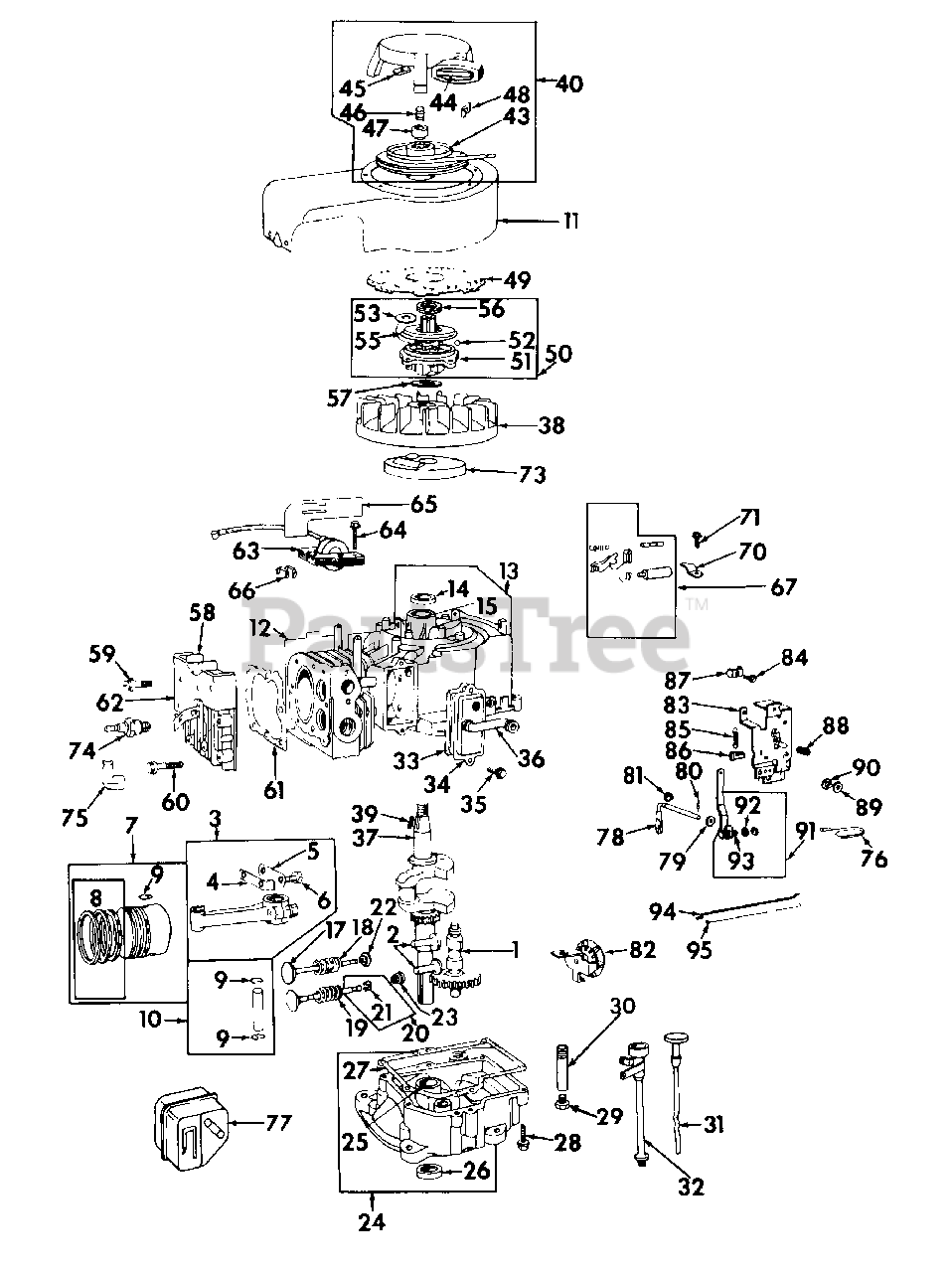

ENGINE ASSEMBLY

Note: BRIGGS & STRATTON 170702- -7 HP- -EQUIPPED WITH RECOIL STARTER-

$

$

Currently unavailable

Cub Cadet IH-549002-R92

ENGINE ASSEMBLY

$

$

Currently unavailable

Cub Cadet IH-57104-C91

VERTICAL CRANKSHAFT SHORT BLOCK ASSY

Note: BRIGGS & STRATTON 299781- -V-81-

$

$

Not available

1

Cub Cadet IH-549356-R1

CAMSHAFT

$

$

Currently unavailable

2

Cub Cadet IH-549357-R1

TAPPET, VALVE

$

$

Not available

3

Cub Cadet IH-539837-R91

ROD ASSY, CONNECTING STD

$

$

Not available

4

Cub Cadet IH-539838-R1

DIPPER, CONNECTING ROD

$

$

Currently unavailable

5

Cub Cadet IH-539839-R1

LOCK, SCREW HEAD

$

$

Not available

6

Cub Cadet IH-549365-R1

SCREW, CONNECTING ROD

$

$

Currently unavailable

7

Cub Cadet IH-539840-R91

PISTON ASSY, STD
(Superseded to BS-499907)

$

$

Not available

8

Cub Cadet IH-539663-R1

RING SET, PISTON CHROME- STD
(Superseded to BS-690014)

$

$

Not available

Cub Cadet IH-539664-R1

RING SET, PISTON-STD
(Superseded to BS-499921)

$47.99

$

Usually ships in 2-12 days

0

Cub Cadet IH-539667-R1

RING SET, PISTON - .030 U/S

$

$

Currently unavailable

9

Cub Cadet IH-549371-R1

LOCK, PISTON PIN

$

$

Currently unavailable

10

Cub Cadet IH-549370-R1

PIN, PISTON - STD

$

$

Not available

10

Cub Cadet IH-539657-R1

PIN, PISTON .005 U/S

$

$

Currently unavailable

11

Cub Cadet IH-539844-R1

HOUSING, BLOWER

$

$

Currently unavailable

Cub Cadet IH-539845-R1

RECOIL START

$

$

Currently unavailable

Cub Cadet IH-549374-R1

HOUSING, BLOWER

Note: -ELECTRIC START- SCREW, W/SPRING LOCKWASHER 1/4-20 X 1/2 ZND HEX-HD

$

$

Currently unavailable

12

Cub Cadet IH-549377-R1

SHIELD, CYLINDER

$

$

Not available

Cub Cadet IH-26091-R1

SCREW, W/SPRING LOCKWASHER 10-24 X 3/8 ZND HEX-HD

$

$

Currently unavailable

13

Cub Cadet IH-539846-R91

CYLINDER ASSY, ENGINE

$

$

Currently unavailable

14

Cub Cadet IH-549393-R1

SEAL, OIL

$

$

Not available

15

Cub Cadet IH-549392-R91

BUSHING & SEAL

$

$

Currently unavailable

17

Cub Cadet IH-549394-R1

VALVE, INTAKE
(Superseded to BS-261055S)

$32.99

$

In Stock, only 2 left!

0

18

Cub Cadet IH-549395-R1

SPRING, INTAKE VALVE
(Superseded to BS-65906)

$

$

Not available

19

Cub Cadet IH-549398-R1

SPRING, EXHAUST VALVE

$

$

Not available

20

Cub Cadet IH-549397-R1

VALVE, EXHAUST

$

$

Not available

21

Cub Cadet IH-549399-R1

RETAINER, ROTO-COIL
(Superseded to BS-494553)

$7.99

$

In Stock, only 2 left!

0

22

Cub Cadet IH-549396-R1

RETAINER, INTAKE VALVE
(Superseded to BS-690656)

$

$

Not available

23

Cub Cadet IH-549400-R1

ROTO-COIL, EXHAUST VALVE
(Superseded to BS-691939)

$27.99

$

In Stock, Qty 5

0

24

Cub Cadet IH-539849-R91

SUMP ASSY, OIL
(Superseded to BS-392548)

$110.99

$

Usually ships in 2-12 days

0

25

Cub Cadet IH-539850-R91

BUSHING & OIL SEAL

$

$

Currently unavailable

26

Cub Cadet IH-549410-R1

SEAL, OIL
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

27

GASKET, SUMP - STD

Note: PART OF GASKET KIT, IH-549470-R91

$

$

Not available

28

Cub Cadet IH-549412-R1

SCREW, SUMP MTG

$

$

Not available

29

Cub Cadet IH-444619

PLUG, 1/4-18 AUTOMOTIVE HEX-HD PIPE
(Superseded to 751-3001)

$

$

Not available

30

Cub Cadet IH-549096-R1

PIPE, OIL DRAIN

$

$

Not available

31

Cub Cadet IH-539851-R1

GAUGE, OIL LEVEL
(Superseded to BS-392066)

$

$

Not available

32

Cub Cadet IH-539852-R1

TUBE, OIL LEVEL GAUGE
(Superseded to BS-392066)

$

$

Not available

33

GASKET, BREATHER

Note: PART OF GASKET KIT, IH-549470-R91

$

$

Not available

34

Cub Cadet IH-539853-R1

BREATHER, VALVE CHAMBER

$

$

Not available

35

Cub Cadet IH-549422-R1

SCREW, BREATHER MTG
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

36

Cub Cadet IH-539854-R1

TUBE, BREATHER
(Superseded to BS-692293)

$10.99

$

In Stock, Qty 6

0

37

Cub Cadet IH-539855-R1

CRANKSHAFT

$

$

Currently unavailable

38

Cub Cadet IH-539857-R1

FLYWHEEL -RECOIL START-

$

$

Not available

Cub Cadet IH-539858-R1

FLYWHEEL -ELECTRIC START-

$

$

Currently unavailable

39

Cub Cadet IH-549434-R1

KEY, FLYWHEEL
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

40

Cub Cadet IH-549444-R91

STARTER ASSY, REWIND
(Superseded to BS-693900)

$131.99

$

In Stock, Qty 9

0

Cub Cadet IH-26090-R1

SCREW, 10-32 X 3/8 ZND SLT-HEX-HD W/SPLIT RING LOCKWASHER

$

$

Currently unavailable

43

Cub Cadet IH-549441-R1

SPRING, REWIND STARTER
(Superseded to BS-490179)

$

$

Not available

44

Cub Cadet IH-405563-R91

PACKAGE, REWIND STARTER HANDLE & INSERT

$

$

Not available

45

Cub Cadet IH-549442-R1

BUMPER, REWIND PULLEY

$

$

Not available

Cub Cadet IH-172300

SCREW, 8-32 X 1/2 ZND HEX-HD JAP

$

$

Currently unavailable

46

Cub Cadet IH-549911-R1

SPRING, RATCHET SPRING
(Superseded to BS-260414)

$

$

Not available

47

Cub Cadet IH-549910-R1

ADAPTER, RATCHET SPRING
(Superseded to BS-691920)

$11.99

$

In Stock, Qty 5

0

48

Cub Cadet IH-549443-R1

SPRING, ANCHOR INSERT

$

$

Currently unavailable

49

Cub Cadet IH-549437-R1

SCREEN, REWIND STARTER

$

$

Not available

Cub Cadet IH-20832-R1

SCREW, 8-32 X 1/2 ZND HEX-HD MACH W/SPRING LOCKWASHER

$

$

Currently unavailable

50

Cub Cadet IH-549425-R91

CLUTCH ASSY, REWIND STARTER
(Superseded to BS-399671)

$34.99

$

In Stock, Qty 20+

0

51

Cub Cadet IH-549426-R1

HOUSING, REWIND STARTER CLUTCH
(Superseded to BS-394897)

$36.99

$

In Stock, only 1 left!

0

52

Cub Cadet IH-17010-R1

BALL, 5/16 CR-STL- 25 GRADE

$

$

Not available

53

Cub Cadet IH-549427-R1

WASHER, THRUST

$

$

Currently unavailable

55

RETAINER, WASHER

Note: ORDER CLUTCH ASSY, IH-549425-R91

$

$

Not available

56

SEAL, RATCHET

Note: ORDER CLUTCH ASSY, IH-549425-R91

$

$

Not available

57

Cub Cadet IH-549431-R1

WASHER, SPRING

$

$

Currently unavailable

58

Cub Cadet IH-539923-R1

HEAD, CYLINDER

$

$

Currently unavailable

59

Cub Cadet IH-549455-R1

SCREW, CYLINDER HEAD-SHORT
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet IH-549456-R1

SCREW, CYLINDER HEAD-LONG

$

$

Not available

61

Cub Cadet IH-549457-R1

GASKET, CYLINDER HEAD
(Superseded to BS-272163S)

$7.99

$

In Stock, Qty 20+

0

62

Cub Cadet IH-549379-R1

COVER CYL HEAD

$

$

Not available

Cub Cadet IH-545579-R1

WASHER, CYL HEAD SCREW

$

$

Currently unavailable

63

Cub Cadet IH-549460-R1

ARMATURE ASSY, MAGNETO
(Superseded to BS-298968)

$

$

Not available

64

Cub Cadet IH-549461-R1

SCREW, ARMATURE MOUNTING

$

$

Currently unavailable

65

Cub Cadet IH-549462-R1

GUIDE, AIR

$

$

Not available

66

Cub Cadet IH-539882-R1

CLIP, WIRE

$

$

Currently unavailable

67

Cub Cadet IH-549471-R91

KIT, BREAKER POINT AND CONDENSER
(Superseded to BS-294628)

Note: REPLACES IH-549463-R91

$

$

Not available

70

Cub Cadet IH-549466-R1

CLAMP, CONDENSER

$

$

Currently unavailable

71

Cub Cadet IH-549376-R1

SCREW, CONDENSER CLAMP

$

$

Currently unavailable

73

Cub Cadet IH-539860-R1

COVER, BREAKER POINT

$

$

Not available

Cub Cadet IH-26000-R1

SCREW, 8-32 X 3/8 ZND HEX-WASHER-HD TAP.

$

$

Not available

74

IH-CJ8

PLUG, SPARK -CHAMPION-

$

$

Not available

75

Cub Cadet IH-267927-R1

ELBOW, SPARK PLUG INSULATOR

$

$

Currently unavailable

76

Cub Cadet IH-549892-R1

WIRE, GROUND

$

$

Not available

Cub Cadet IH-549890-R1

WIRE, JUMPER

$

$

Not available

77

Cub Cadet IH-539871-R1

MUFFLER, EXHAUST

$

$

Not available

78

Cub Cadet IH-539879-R1

CRANK, GOVERNOR

$

$

Currently unavailable

79

Cub Cadet IH-549898-R1

WASHER, GOVERNOR CRANK

$

$

Currently unavailable

80

Cub Cadet IH-549899-R1

COTTER, GOVERNOR CRANK
(Superseded to BS-93306)

$

$

Not available

81

Cub Cadet IH-268552-R1

RETAINER, GOVERNOR CRANK
(Superseded to BS-93307)

$5.99

$

In Stock, only 3 left!

0

82

Cub Cadet IH-539873-R1

GEAR, GOVERNOR

$

$

Not available

83

Cub Cadet IH-539874-R1

PLATE, GOVERNOR

$

$

Not available

Cub Cadet IH-26000-R1

SCREW, 8-32 X 3/8 ZND HEX-WASHER-HD TAP

$

$

Not available

Cub Cadet IH-172374

SCREW, 10-32 X 3/8 HEX-HD TAP.
(Superseded to 710-0432)

$

$

Not available

84

Cub Cadet IH-549888-R1

SCREW W/LOCKWASHER, HEX-HD
(Superseded to BS-690804)

$

$

Not available

85

Cub Cadet IH-539875-R1

SPRING, GOVERNOR

$

$

Not available

86

Cub Cadet IH-549886-R1

SWITCH, STOP

$

$

Currently unavailable

87

Cub Cadet IH-545887-R1

CLAMP, CASTING

$

$

Currently unavailable

88

Cub Cadet IH-549448-R1

SPRING, THROTTLE ADJ

$

$

Currently unavailable

Cub Cadet IH-131974

SCREW, 8-32 X 5/8 ZND FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138166

WASHER, NO 8 INT-TOOTH LOCK

$

$

Currently unavailable

Cub Cadet IH-120622

NUT, 8-32 HEX
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

89

Cub Cadet IH-539876-R1

WASHER, INSULATING

$

$

Currently unavailable

90

Cub Cadet IH-539877-R1

COLLAR, INSULATING

$

$

Currently unavailable

91

Cub Cadet IH-539871-R1

LEVER ASSY, GOVERNOR

$

$

Not available

Cub Cadet IH-120361

NUT, NO 10-24 ZND HEX

$

$

Not available

92

Cub Cadet IH-549896-R1

WASHER

$

$

Currently unavailable

93

Cub Cadet IH-549895-R1

BOLT

$

$

Currently unavailable

94

Cub Cadet IH-539880-R1

LINK, GOVERNOR

$

$

Not available

95

Cub Cadet IH-539881-R1

SPRING, GOVERNOR LINK
(Superseded to BS-692207)

$6.99

$

In Stock, only 2 left!

0

Cub Cadet IH-549470-R91

KIT, GASKET
(Superseded to BS-299577)

$35.99

$

In Stock, Qty 11

0

Cub Cadet IH-549457-R1

GASKET, CYL HEAD
(Superseded to BS-272163S)

$7.99

$

In Stock, Qty 20+

0

GASKET, BREATHER

Note: Not Available Seperately

$

$

Not available

GASKET, CRANKCASE 1/64 IN. THICK

Note: Not Available Seperately

$

$

Not available

GASKET, CRANKCASE .005 IN. THICK

Note: Not Available Seperately

$

$

Not available

GASKET, CRANKCASE .009 IN. THICK

Note: Not Available Seperately

$

$

Not available

Cub Cadet IH-539917-R1

GASKET, CARBURETOR

$

$

Currently unavailable

GASKET, CARBURETOR MOUNTING

Note: Not Available Seperately

$

$

Not available

GASKET, FILTER BOWL

Note: Not Available Seperately

$

$

Not available

GASKET, INTAKE ELBOW

Note: Not Available Seperately

$

$

Not available

GASKET, INTAKE ELBOW

Note: Not Available Seperately

$

$

Not available
