75 (0340012U) - International Harvester Riding Mower (1972 - 1981) Body, Frame & Drawbar Parts Diagram

Riding Mower

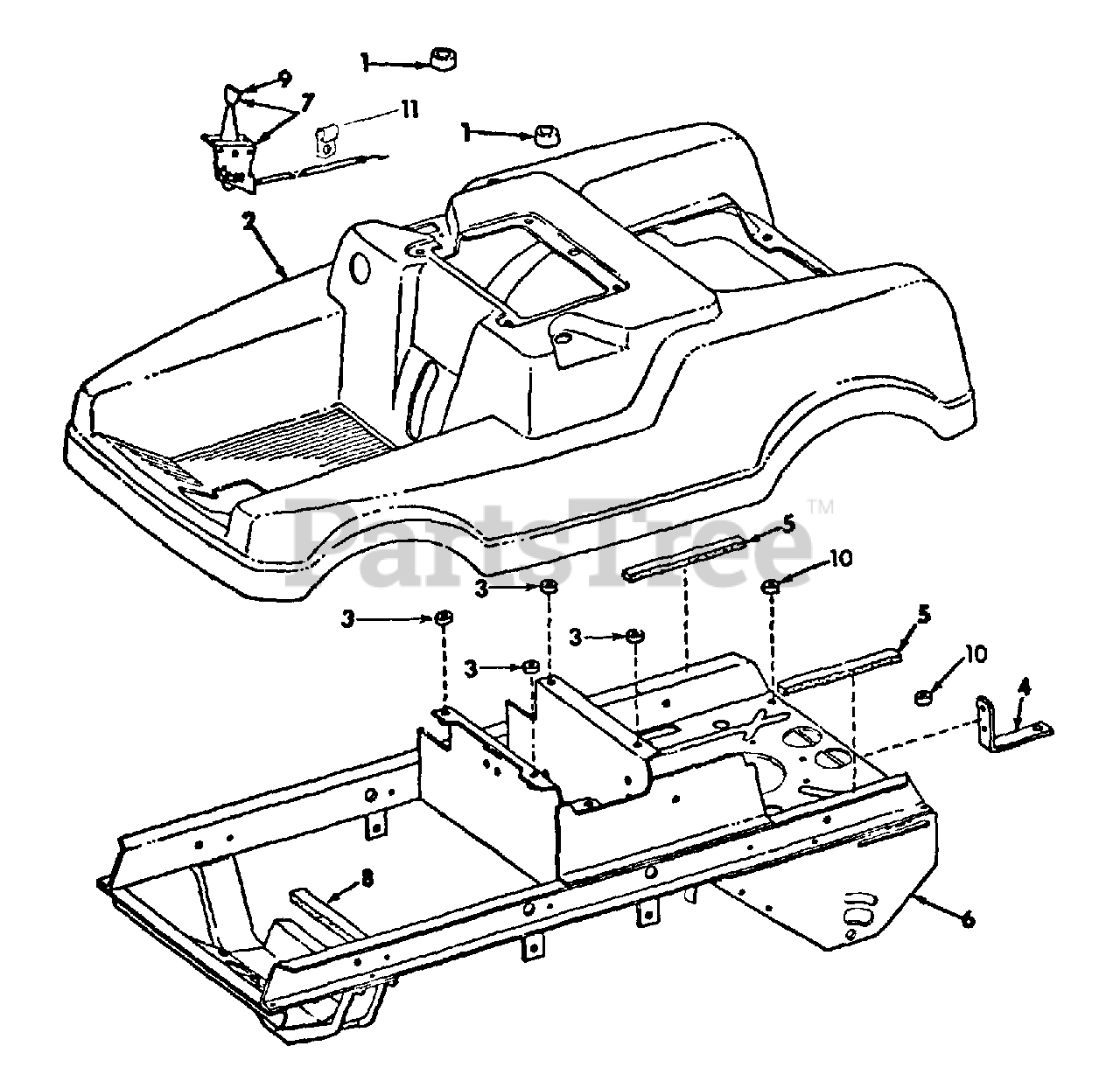

Body, Frame & Drawbar Parts Diagram

  • Title

1

Cub Cadet IH-487823-R1

BUMPER, SEAT SUPPORT REAR

$

$

Not available

Cub Cadet IH-491949-R1

BOLT, 5/16-18 X 1-3/8 C-Z HEX-HD LOCK

$

$

Currently unavailable

Cub Cadet IH-491948-R1

BOLT, 5/16-18 X 1-1/8 C-Z HEX-HD LOCK

$

$

Currently unavailable

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-134238-R1

WASHER, 11/32 X 1.0 X .060 C-Z

$

$

Currently unavailable

2

Cub Cadet IH-549089-R3

BODY W/PLUG, 432 485 AND PLUG, 432 580

$

$

Currently unavailable

Cub Cadet IH-432485

RIDING MOWER PLUG, 5/8 C-Z BUTTON -IGNITION HOLE-

$

$

Currently unavailable

Cub Cadet IH-432580

PLUG, 2-3/32 C-Z BUTTON -IGNITION HOLE-

$

$

Currently unavailable

3

Cub Cadet IH-487822-R1

SPACER, BODY MOUNTING

$

$

Not available

4

Cub Cadet IH-487953-R1

ANGLE, DRAWBAR

$

$

Currently unavailable

Cub Cadet IH-168078

SCREW, 5/16-18 X 7/8 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-411597-R1

NUT, 5/16-18 HEX. LOCK
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

5

Cub Cadet IH-487824-R1

SEAL, PRESSURIZED

$

$

Not available

6

Cub Cadet IH-139999-C91

FRAME W/PRODUCT GRAPHIC, MAIN

$

$

Currently unavailable

Cub Cadet IH-403276-R1

NUT, SPRING

$

$

Currently unavailable

Cub Cadet IH-541310-R1

CLIP, SEAT SUPPORT MTG

$

$

Currently unavailable

Cub Cadet IH-120391-C1

PRODUCT GRAPHIC, BOOSTER BATTERY
(Superseded to 779-3296)

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-549693-R1

CONTROL, THROTTLE
(Superseded to 746-3009)

$

$

Not available

Cub Cadet IH-436665

SCREW, 6-32 X 1/2 C-Z SIT-PAN-HD MACH

$

$

Currently unavailable

Cub Cadet IH-446130

WASHER, 11/64 X 13/32 X .036 C-Z

$

$

Currently unavailable

8

Cub Cadet IH-491719-R1

SEAL, PRESS FRT REST

$

$

Not available

9

Cub Cadet IH-530118-R1

KNOB, THROTTLE CONTROL
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

10

Cub Cadet IH-549611-R1

SPACER, BODY MTG REAR

$

$

Currently unavailable

11

Note: NOT USED THIS APPLICATION

$

$

Not available
