75 (0340008U) - International Harvester Riding Mower (1972 - 1981) Mower Main Frame & Knife Unit - Side Discharge Parts Diagram

Riding Mower

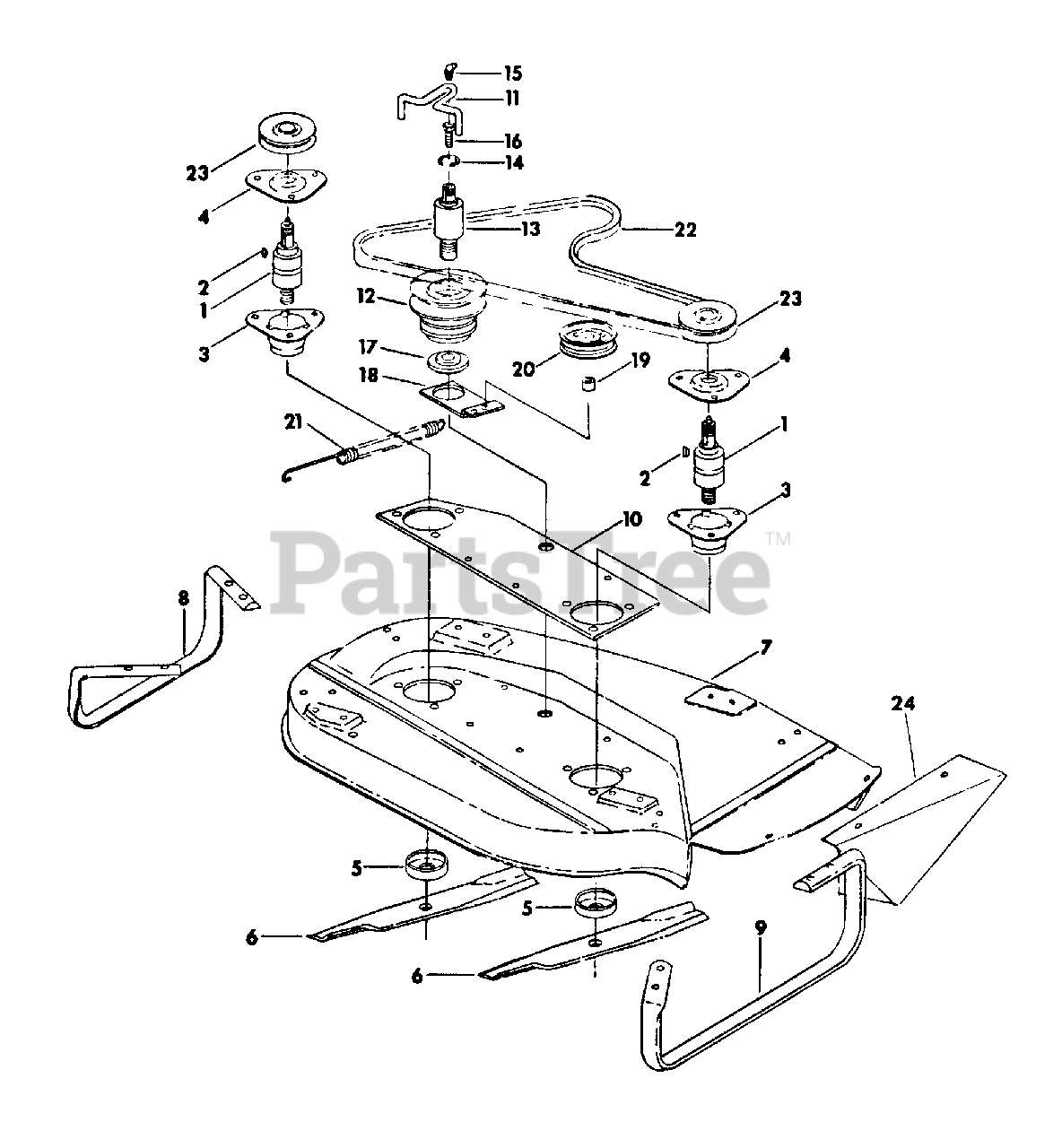

Mower Main Frame & Knife Unit - Side Discharge Parts Diagram

  • Title

1

Cub Cadet IH-ST744

BEARING, BALL AND FAN TYPE

$

$

Not available

2

Cub Cadet IH-218211

KEY, 1/4 X 3/4 WOODRUFF 91
(Superseded to 914-0135)

$

$

Not available

3

Cub Cadet IH-492106-R1

HOUSING, SPINDLE
(Superseded to 903-0117)

$

$

Not available

4

Cub Cadet IH-492105-R1

CAP, SPINDLE HOUSING
(Superseded to 703-0115-0499)

$38.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-17351

BOLT, 3/8 X 1 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120382

WASHER, 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet IH-492108-R1

CUP, SPINDLE
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

6

Cub Cadet IH-549130-R1

BLADE, 32 IN. MOWER
(Superseded to 742-3006)

$

$

Not available

Cub Cadet IH-62453-C1

BLADE, 32 IN. MOWER COATED EDGE

$

$

Not available

Cub Cadet IH-615168-R1

WASHER, 25/32 X 1-1/2 X 11 GA

$

$

Not available

Cub Cadet IH-219753

NUT, 3/4-16 HEX JAM
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 7

0

7

Cub Cadet IH-549125-R4

HOUSING ASSY, 32 IN MOWER

$

$

Currently unavailable

8

Cub Cadet IH-549127-R1

RUNNER, LH MOWER

$

$

Currently unavailable

9

Cub Cadet IH-549128-R1

RUNNER, RH MOWER

$

$

Not available

10

Cub Cadet IH-549129-R3

PLATE, SPINDLE MTG

$

$

Currently unavailable

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-MD CAP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .051 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet IH-490490-R1

GUIDE, PTO BELT

$

$

Currently unavailable

12

Cub Cadet IH-493017-R1

PULLEY, CENTER SPINDLE

$

$

Currently unavailable

13

Cub Cadet IH-ST749

BEARING, FAN AND WATER PUMP TYPE

$

$

Currently unavailable

14

Cub Cadet IH-272842-R1

RING, 2.072 INT RET

$

$

Currently unavailable

15

Cub Cadet IH-19700-R91

FITTING, 3/8 45 DEG DRIVE TYPE LUB
(Superseded to 737-0108)

$12.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-473435-R1

BOLT, END
(Superseded to 710-06455)

$14.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-614452-R1

WASHER, 13/32 X 1-1/4 X 11 GA C-Z
(Superseded to 936-0133)

$

$

Not available

Cub Cadet IH-173128

WASHER, 3/8 INT-EXT TOOTH LOCK
(Superseded to IH-178551P)

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet IH-493018-R1

SPACER, PULLEY

$

$

Currently unavailable

Cub Cadet IH-575814-R1

WASHER, 25/32 X 2 X 11 GA
(Superseded to 736-3014)

$4.49

$

In Stock, only 4 left!

0

Cub Cadet IH-219753

NUT, 3/4-16 HEX JAM
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 7

0

18

Cub Cadet IH-489073-R1

ARM IDLER

$

$

Currently unavailable

Cub Cadet IH-180128

SCREW, 3/8-16 X 1-3/4 ZND HEX-HD CAP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet IH-493354-R1

SPACER, IDLER PULLEY

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

20

Cub Cadet IH-489074-R92

IDLER, BALL BRG

$

$

Not available

21

Cub Cadet IH-53182D

SPRING, IDLER

$

$

Currently unavailable

22

Cub Cadet IH-488077-R1

BELT, BLADE DRIVE

$

$

Not available

23

Cub Cadet IH-481095-R92

PULLEY, BLADE
(Superseded to 756-3026)

$62.99

$

Usually ships in 3-6 days

0

24

Cub Cadet IH-57378-C1

SHIELD, DEFLECTOR 32 IN.

$

$

Not available
