75 (0340007U) - International Harvester Riding Mower (1972 - 1981) Steering Mechanism Parts Diagram

Riding Mower

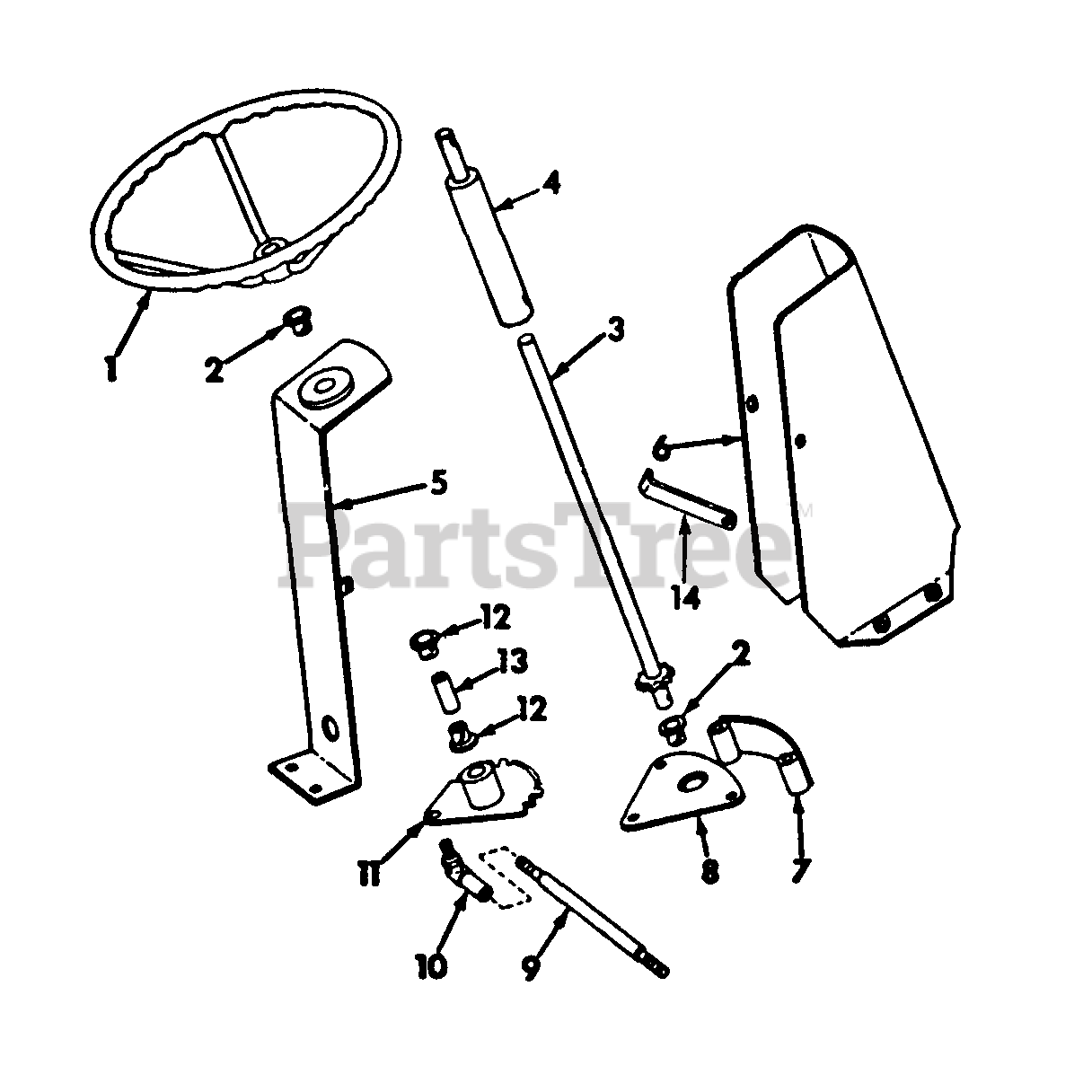

Steering Mechanism Parts Diagram

  • Title

1

Cub Cadet IH-488456-R1

WHEEL, STEERING

$

$

Not available

Cub Cadet IH-23670-R1

PIN, 1/4 X 1-3/8 HV COILED SPRING
(Superseded to 915-3000)

$

$

Not available

2

Cub Cadet IH-185062-R1

BEARING, STEERING SHAFT

$

$

Not available

3

Cub Cadet IH-106764-C2

SHAFT ASSY, LOWER STEERING

Note: REPLACES IH-549080-R1

$

$

Not available

Cub Cadet IH-23670-R1

PIN, 1/4 X 1-3/8 HV COILED SPRING
(Superseded to 915-3000)

$

$

Not available

Cub Cadet IH-108635

PIN, 1/8 X 1-1/8 COT.
(Superseded to 914-0470)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-16066-R1

WASHER, 25/32 X 1-1/2 X 16 GA
(Superseded to 936-0316)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet IH-549079-R1

SHAFT, UPPER STEERING

$

$

Not available

5

Cub Cadet IH-487980-R1

SUPPORT ASSY, STEERING

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

6

Cub Cadet IH-549094-R91

SHROUD ASSY, STEERING SUPPORT

$

$

Not available

Cub Cadet IH-104249

RIVET, 1/4 X 1/2 FL-HD

$

$

Currently unavailable

Cub Cadet IH-378341-R1

WASHER, SPRING

$

$

Not available

7

Cub Cadet IH-487987-R1

COVER, FRT STEERING GEAR

$

$

Currently unavailable

Cub Cadet IH-179827

SCREW, 5/16-18 X 2-1/4 HEX-HD CAP

$

$

Currently unavailable

8

Cub Cadet IH-487973-R1

COVER ASSY, STEERING GEAR

$

$

Not available

9

Cub Cadet IH-487985-R1

STUD, DRAG LINK ROD

$

$

Not available

Cub Cadet IH-114494

NUT, 3/8-24 HEX. JAM
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

10

Cub Cadet IH-392594-R1

JOINT, 3/8-24 BALL
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9413243

NUT, 3/8-24 HEX. LOCK

$

$

Currently unavailable

11

Cub Cadet IH-487976-R4

GEAR ASSY STEERING DRAG LINK
(Superseded to 703-0462)

$

$

Not available

Cub Cadet IH-541293-R1

BOLT, STEERING GEAR MTG

$

$

Not available

12

Cub Cadet IH-307920-R1

BEARING, STEERING GEAR
(Superseded to 731-3015)

$

$

Not available

13

Cub Cadet IH-487979-R1

BUSHING, STEERING GEAR DRAG LINK
(Superseded to 911-3056)

$

$

Not available

14

Cub Cadet IH-549091-R1

STOP, PEDAL

$

$

Currently unavailable

Cub Cadet IH-549080-R1

No Longer Available

$

$

Not available
