75 (0340007U) - International Harvester Riding Mower (1972 - 1981) Ignition & Starting - Recoil Start Parts Diagram

Riding Mower

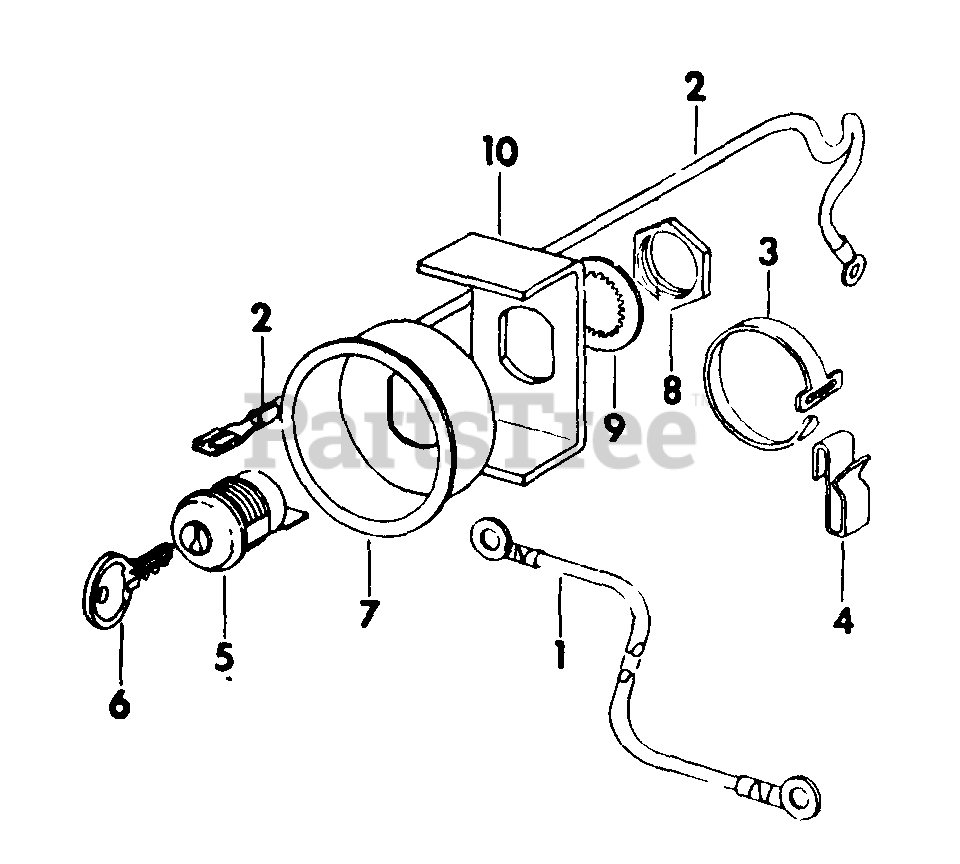

Ignition & Starting - Recoil Start Parts Diagram

  • Title

1

Cub Cadet IH-490192-R1

CABLE ASSY, SWITCH TO GROUND

$

$

Currently unavailable

2

Cub Cadet IH-57225-C1

CABLE ASSY, MAGNETO GROUND

$

$

Not available

Cub Cadet IH-455956

SCREW, 8-32 X 5/16 C-Z SLT-HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-131182

WASHER, NO. 8 C-Z LIGHT LOCK

$

$

Not available

Cub Cadet IH-120622

NUT, 8-32 C-Z HEX
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

3

Cub Cadet IH-702093-C1

CLAMP

$

$

Currently unavailable

4

Cub Cadet IH-395357-R1

CLIP, CABLE SPEED

$

$

Currently unavailable

5

Cub Cadet IH-379593-R92

SWITCH, IGNITION KEY

$

$

Currently unavailable

6

Cub Cadet IH-131313-C1

KEY, IGNITION SWITCH
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 2 left!

0

7

Cub Cadet IH-402238-R1

SOCKET, IGNITION SWITCH

$

$

Currently unavailable

8

Cub Cadet IH-365502-R1

NUT, MAGNETO IGNITION KEY MOUNTING

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet IH-375431-R1

WASHER, MAGNETO IGNITION KEY MOUNTING

$11.99

$

In Stock, only 1 left!

0

10

Cub Cadet IH-491539-R1

RETAINER, IGNITION SWITCH

$

$

Not available
