75 (0340007U) - International Harvester Riding Mower (1972 - 1981) Electrical & Starting Parts Diagram

Riding Mower

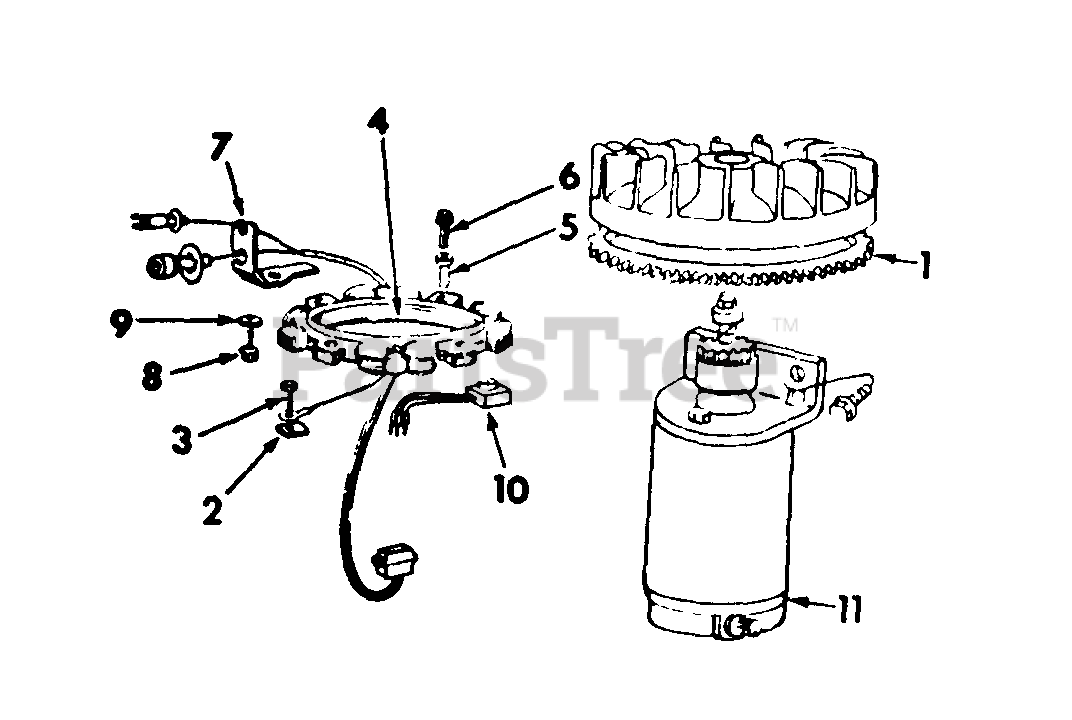

Electrical & Starting Parts Diagram

  • Title

1

Cub Cadet IH-549447-R91

GEAR, FLYWHEEL RING

$

$

Currently unavailable

Cub Cadet IH-549448-R1

SCREW, 10-32 X 1-3/4 SLT-F-HD MACH

$

$

Currently unavailable

IH-107377H

NUT, NO. 10-NF CAD P/T LOCK TYPE 5

$

$

Not available

2

Cub Cadet IH-539887-R1

RETAINER

$

$

Currently unavailable

3

Cub Cadet IH-539888-R1

SCREW, 8-32 X 3/8 HEX-HD
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

4

Cub Cadet IH-77988-C1

STATOR W/BRACKET, ALTERNATOR
(Superseded to BS-592828)

$124.99

$

Usually ships in 2-12 days

0

Cub Cadet IH-223502-C1

CABLE ASSY, DIODE AND CONNECTOR
(Superseded to BS-393814)

$18.99

$

In Stock, only 2 left!

0

5

Cub Cadet IH-539883-R1

BUSHING, STATOR

$

$

Not available

6

Cub Cadet IH-539884-R1

SCREW, STATOR MTG
(Superseded to BS-93621)

$

$

Not available

7

Cub Cadet IH-539885-R1

BRACKET, FUSE

$

$

Not available

8

Cub Cadet IH-549422-R1

SCREW, BRACKET MTG
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

9

Cub Cadet IH-549896-R1

WASHER, BRACKET

$

$

Currently unavailable

10

Cub Cadet IH-539886-R1

RECTIFIER

$

$

Not available

11

Cub Cadet IH-539889-R91

MOTOR ASSY, STARTER

Note: FOR COMPONENTS SEE "STARTER MOTOR" ILLUSTRATION & PARTS LIST.

$

$

Currently unavailable
