74977 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) BRAKE HANDLE ASSEMBLY NO. 116-7551 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

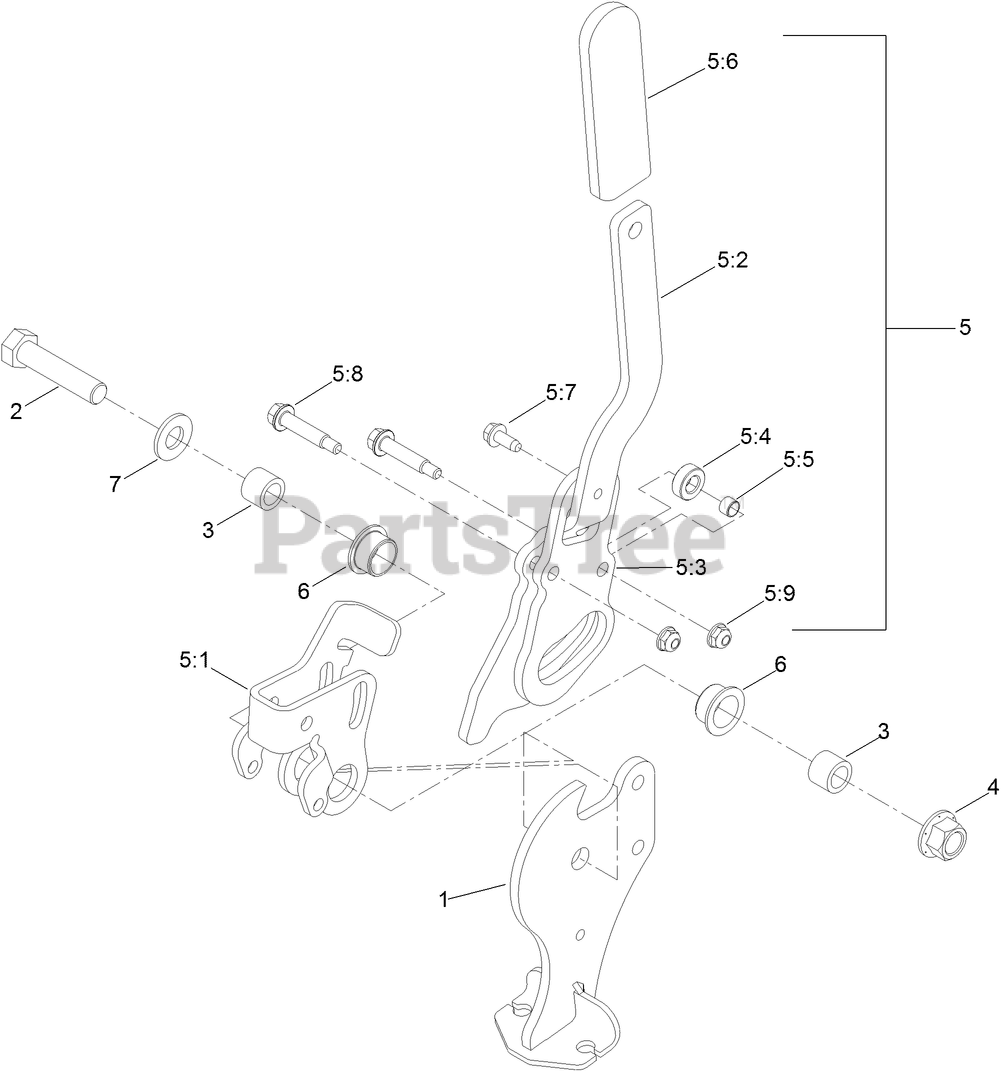

BRAKE HANDLE ASSEMBLY NO. 116-7551 Parts Diagram

  • Title

1

Toro 116-7263

PIVOT-BRAKE

$95.99

$

Usually ships in 3-6 days

0

2

Toro 325-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

3

Toro 116-5384

SPACER

$7.49

$

In Stock, only 1 left!

0

4

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

5

Toro 116-6860

HANDLE ASM

$99.99

$

Usually ships in 3-6 days

0

5:1

Toro 116-6856

BELLCRANK-BRAKE

$26.99

$

Usually ships in 3-6 days

0

5:2

Toro 116-6857

HANDLE-BRAKE

$46.99

$

Usually ships in 3-6 days

0

5:3

Toro 116-6858

PLATE-HANDLE

$12.99

$

Usually ships in 3-6 days

0

5:4

Toro 116-6846

ROLLER-BRAKE

$19.99

$

In Stock, only 2 left!

0

5:5

Toro 116-6852

BEARING-SLEEVE

$2.99

$

Usually ships in 3-6 days

0

5:6

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

5:7

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

5:8

Toro 116-6876

SCREW-SHOULDER

$2.99

$

In Stock, only 4 left!

0

5:9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 109-8054

BUSHING-FLANGE

$5.49

$

In Stock, Qty 20+

0

7

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
