74977 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000125 - 311999999) (2011) FRONT FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

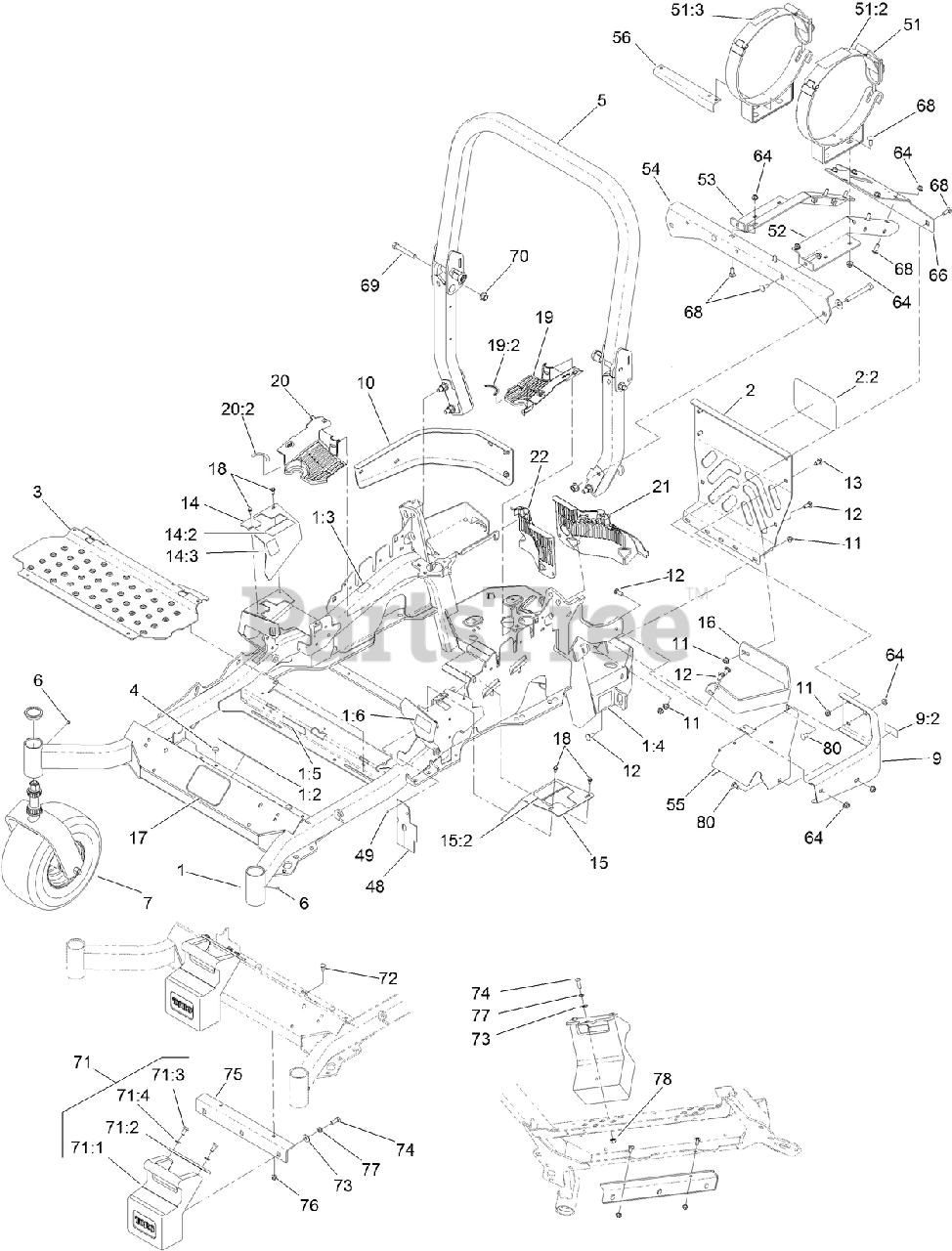

FRONT FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 116-2128

MAIN FRAME ASM

$4659.99

$

Usually ships in 3-6 days

0

1:2

Toro 103-2076

DECAL-CAUTION

$6.49

$

Usually ships in 3-6 days

0

1:3

Toro 116-3303

DECAL-SLOPE

$17.99

$

Usually ships in 3-6 days

0

1:4

Toro 116-0205

DECAL-BELT DRIVE

$8.49

$

Usually ships in 3-6 days

0

1:5

Toro 116-4858

DECAL-SPARK ARRESTER

$3.49

$

Usually ships in 3-6 days

0

1:6

Toro 116-1654

DECAL-FUEL FILL

$5.49

$

Usually ships in 3-6 days

0

2

Toro 119-4237

REAR GUARD ASM

$

$

Not available

2:2

Toro 68-3640

DECAL

$20.99

$

In Stock, Qty 17

0

3

Toro 116-0024-01

FLOORPAN
(Superseded to 116-8898-01)

$108.99

$

Usually ships in 3-6 days

0

4

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 20+

0

5

Toro 116-0231

ROPS ASM

$816.99

$

Usually ships in 3-6 days

0

6

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

7

Caster Wheel ASM

Note: Not serviced separately

$

$

Not available

9

Toro 116-0180

LH BUMPER ASM

$148.99

$

Usually ships in 3-6 days

0

9:2

Toro 103-2076

DECAL-CAUTION

$6.49

$

Usually ships in 3-6 days

0

10

Toro 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

14

Toro 116-0579

RH MOTION CONTROL COVER ASM
(Superseded to 116-5899)

$49.99

$

Usually ships in 3-6 days

0

14:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

14:3

Toro 109-7929

DECAL-PARK BRAKE
(Superseded to 116-5944)

$14.99

$

In Stock, Qty 14

0

15

Toro 116-0580

LH MOTION CONTROL COVER ASM

$28.99

$

Usually ships in 3-6 days

0

15:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

16

Toro 116-0043-03

GUARD-MUFFLER
(Superseded to 126-2067-03)

$60.99

$

Usually ships in 3-6 days

0

17

Toro 68-3640

DECAL

$20.99

$

In Stock, Qty 17

0

18

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

19

Toro 116-0170

LH HYDRO GUARD ASM

$85.99

$

In Stock, only 3 left!

0

19:2

Toro 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

20

Toro 116-0171

RH HYDRO GUARD ASM

$85.99

$

Usually ships in 3-6 days

0

20:2

Toro 116-0157

DECAL-HYDRO OIL
(Superseded to 116-8726)

$5.49

$

In Stock, Qty 20+

0

21

Toro 109-9057

GUARD-HYDRO, REAR (LH)

$23.99

$

In Stock, only 2 left!

0

22

Toro 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 2 left!

0

48

Toro 116-2362

DEFLECTOR-AIR FLOW

$6.49

$

Usually ships in 3-6 days

0

49

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

51

Toro 116-2817

TANK BRACKET ASM (SET)

$358.99

$

Usually ships in 3-6 days

0

51:2

Toro 109-9875

DECAL-LPG WARNING

$12.99

$

Usually ships in 3-6 days

0

51:3

Toro 116-1714

DECAL-LPG 43.5LB TANK

$31.99

$

Usually ships in 3-6 days

0

52

Toro 116-2819-03

LH LPG FRAME ASM

$

$

Not available

53

Toro 116-2820-03

RH LPG FRAME ASM

$

$

Not available

54

Toro 116-2285-03

SUPPORT-LPG FRAME, FRONT

$

$

Not available

55

Toro 116-4017-03

PANEL-LPG, AC

$98.99

$

Usually ships in 3-6 days

0

56

Toro 116-2301-03

PLATE-INDEX, LPG TANK

$

$

Not available

64

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

66

Toro 116-2553-03

SUPPORT-REAR FRAME, LPG

$

$

Not available

68

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

69

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

70

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

71

Toro 120-7885

WEIGHT ASM

$844.99

$

Usually ships in 3-6 days

0

71:1

Toro 120-7881

WEIGHT-43 LB

$817.99

$

Usually ships in 3-6 days

0

71:2

Toro 115-3616-01

TAB-SUPPORT, WEIGHT

$30.99

$

In Stock, only 1 left!

0

71:3

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

71:4

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

72

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

73

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

74

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

75

Toro 115-3615-01

BRACKET-MOUNT, WEIGHT

$47.99

$

Usually ships in 3-6 days

0

76

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

77

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

78

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

80

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!
