74977 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311000124) (2011) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

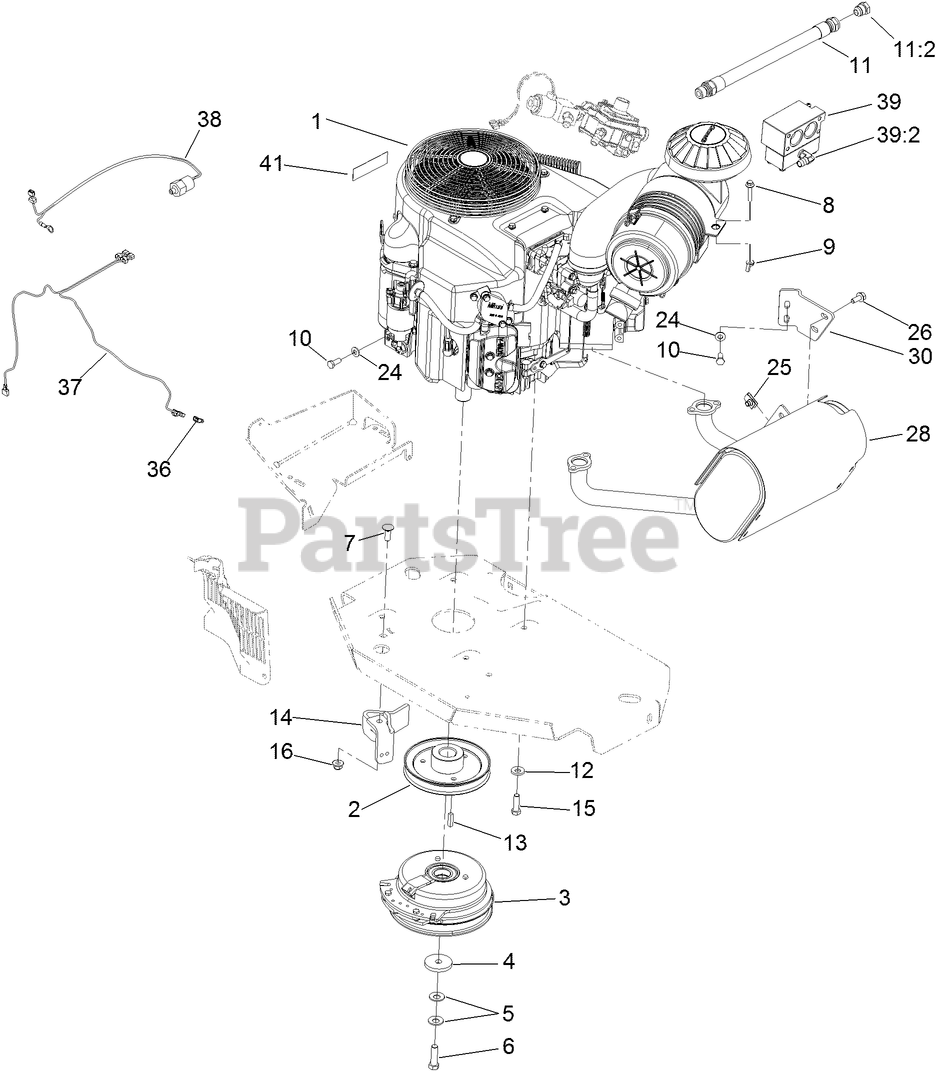

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title
1

ENGINE-KAWASAKI, FX801V-S04-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FX801V-S04-R

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

3

Toro 116-1620

CLUTCH KIT

$359.99

$

In Stock, only 3 left!

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

6

Toro 109-9761

SCREW-HH, W/LOCTITE

$5.49

$

In Stock, Qty 6

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

9

Toro 1-803038

Wingnut

$1.49

$

Usually ships in 3-6 days

0

10

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 109-4490

OIL DRAIN HOSE ASM
(Superseded to 116-4924)

$37.99

$

In Stock, Qty 5

0

11:2

$8.49

$

Usually ships in 3-6 days

0

12

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

13

$2.99

$

In Stock, only 2 left!

0

14

Toro 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

15

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

25

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

26

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

28

Toro 116-1712

MUFFLER

$216.99

$

Usually ships in 3-6 days

0

30

Toro 116-0203

BRACKET-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

36

Toro 32170-079

TERMINAL-TAB

$

$

Not available

37

Toro 116-2857

WIRE HARNESS

$163.99

$

Usually ships in 3-6 days

0

38

Toro 116-2842

OIL PRESSURE SWITCH ASM
(Superseded to 126-1778)

$362.99

$

In Stock, only 4 left!

0

39

Toro 116-4689

MIXER ASM

$

$

Not available

39:2

Toro 116-1127

ELBOW-90 DEG

$99.99

$

Usually ships in 3-6 days

0

41

Toro 116-2852

DECAL-LPG ENGINE

$

$

Currently unavailable
