74975 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) LPG VALVE, TANK AND HOSE ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

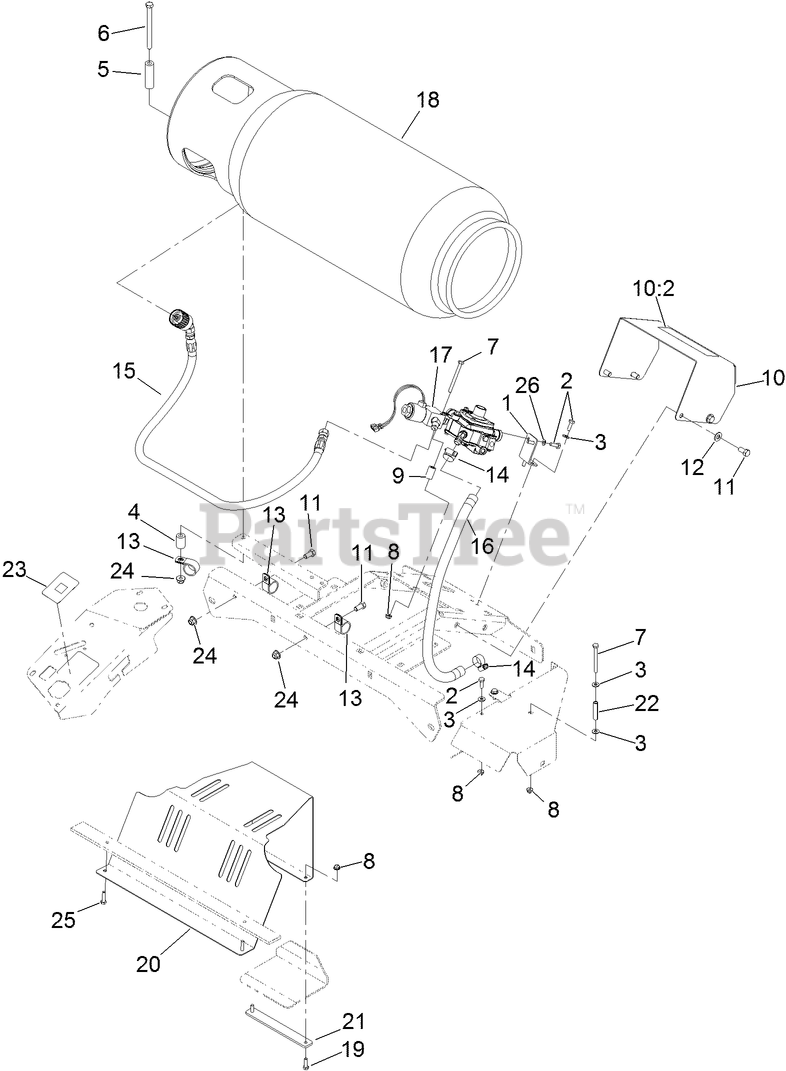

LPG VALVE, TANK AND HOSE ASSEMBLY Parts Diagram

  • Title
1

Toro 116-2571-03

BRACKET-REGULATOR

$22.99

$

Usually ships in 3-6 days

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

5

Toro 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 2 left!

0

6

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

7

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

8

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

10

Toro 116-2818

COVER ASM

$118.99

$

Usually ships in 3-6 days

0

10:2

Toro 109-9906

DECAL-TANK REPLACEMENT

$18.99

$

In Stock, only 2 left!

0

11

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

14

Toro 1-543892

CLAMP-HOSE

$7.49

$

Usually ships in 3-6 days

0

15

Toro 116-2821

LPG FUEL HOSE ASM

$

$

Not available

16

Toro 116-5637

HOSE-LPG
(Superseded to 116-7817)

$

$

Not available

17

Toro 116-5638

LPG REGULATOR SOLENOID ASM
(Superseded to 116-9162)

$1037.99

$

Usually ships in 3-6 days

0

18

Toro 116-1694

TANK-LPG
(Superseded to 126-4507)

$648.99

$

In Stock, only 2 left!

0

19

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 116-3358-03

SHEILD-FAN

$124.99

$

Usually ships in 3-6 days

0

21

$21.99

$

Usually ships in 3-6 days

0

22

Toro 56-7740

SPACER-SPLIT

$

$

Not available

23

Toro 116-3446

DECAL-METER, HOUR

$60.99

$

Usually ships in 3-6 days

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0
