74969 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 402505319 - 999999999) Electrical Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

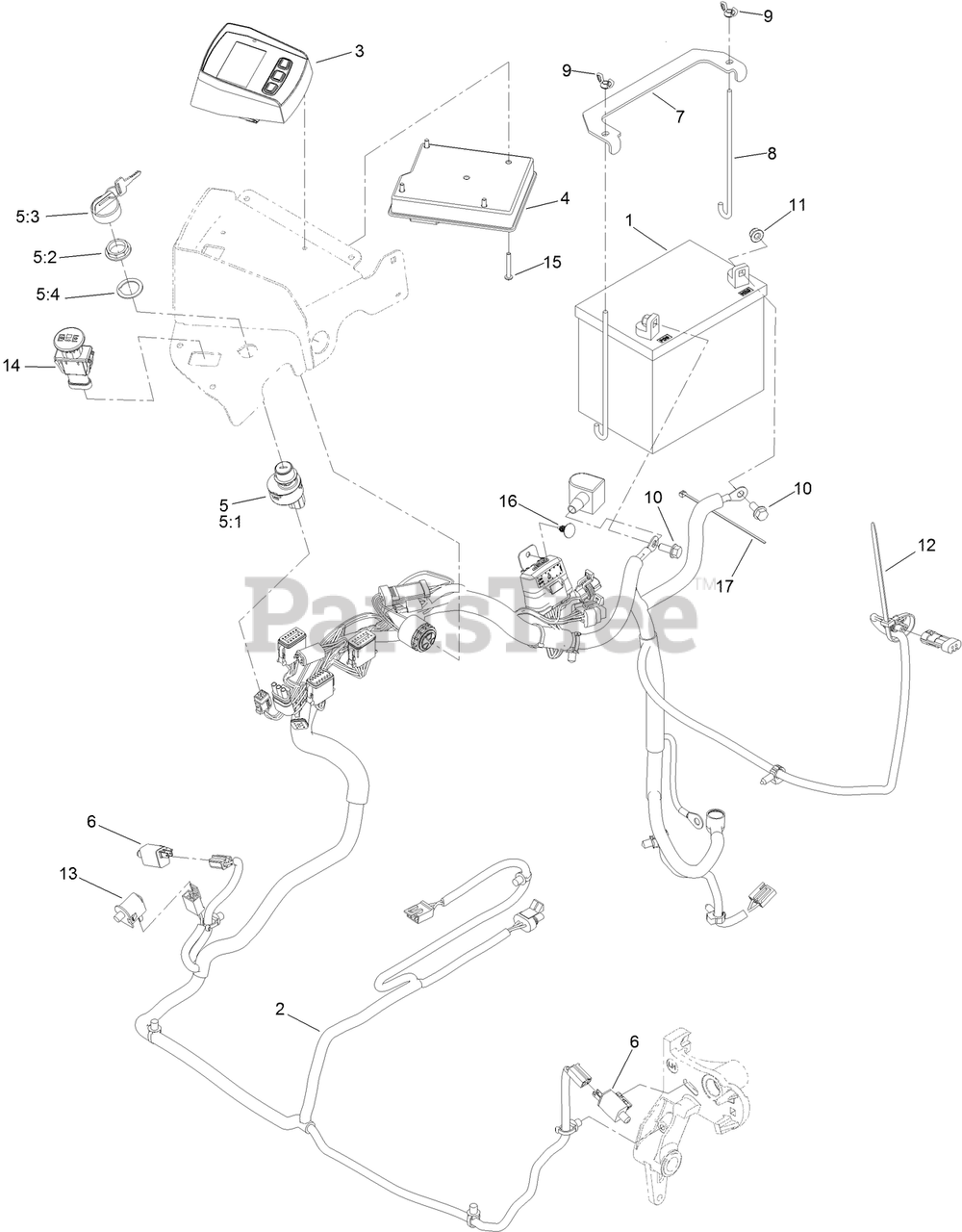

Electrical Assembly Parts Diagram

  • Title

1

Toro 104-8162

BATTERY-DRY

$

$

Not available

2

Toro 135-2305

HARNESS-WIRING

$

$

Not available

3

Toro 126-9976

MODULE-HORIZON

$581.99

$

Usually ships in 3-6 days

0

4

Toro 126-4233

MODULE

$

$

Currently unavailable

5

Toro 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

5:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

5:2

Toro 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

5:3

Toro 106-5270

IGNITION KEY SET

$21.99

$

In Stock, Qty 18

0

5:4

Toro 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

6

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

7

Toro 116-0042-03

STRAP-TIE DOWN, BATTERY

$22.99

$

In Stock, only 2 left!

0

8

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 9

0

9

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

10

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

12

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

13

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

14

Toro 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

15

Toro 126-5092

SCREW-PPH

$3.49

$

In Stock, Qty 8

0

16

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 10

0

17

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
