74967 CP - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) SEAT MOUNTING ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

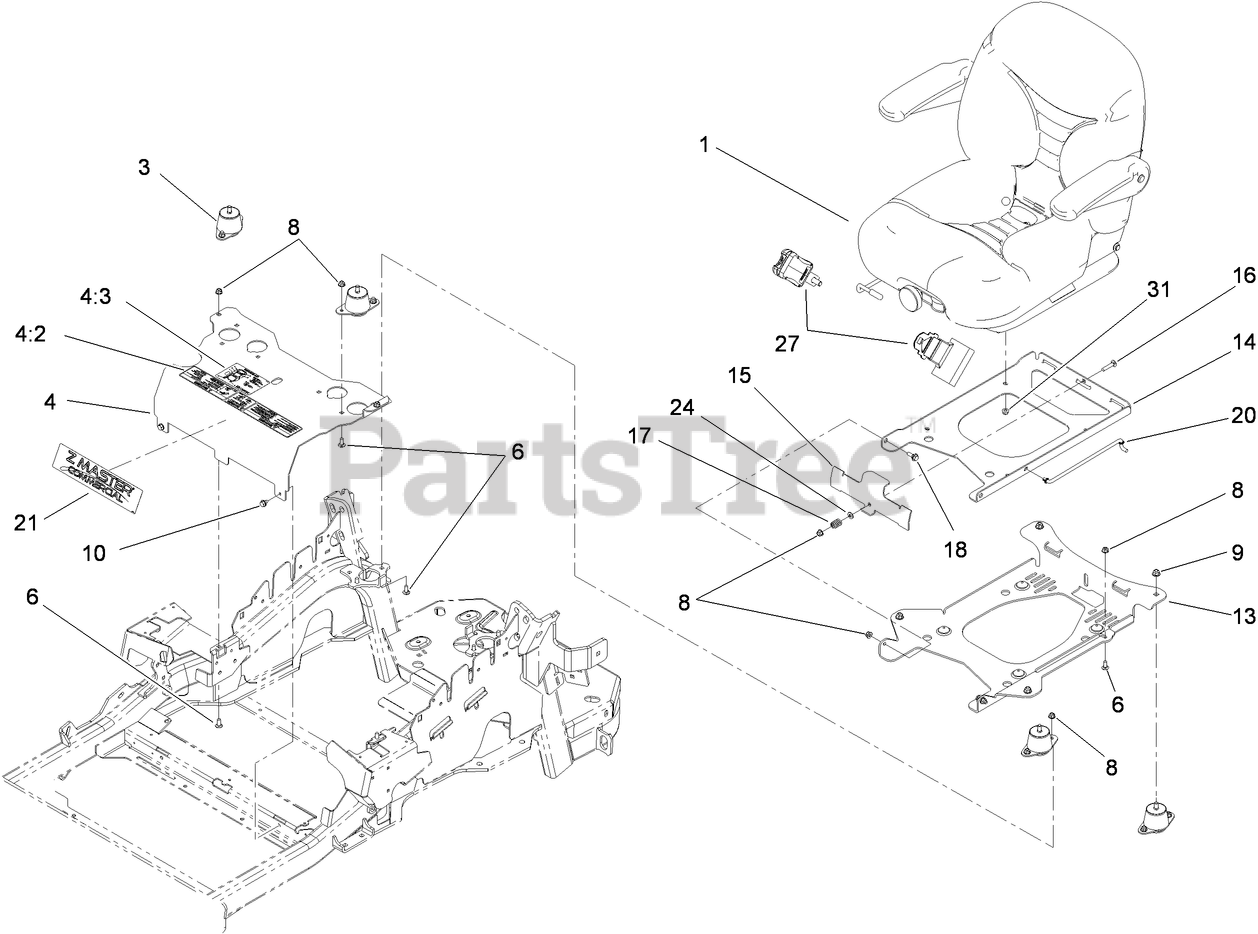

SEAT MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 109-9903

SEAT ASM
(Superseded to 116-3998)

$1115.99

$

Usually ships in 3-6 days

0

3

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

4

Toro 116-2323

MOUNT-SEAT

$266.99

$

Usually ships in 3-6 days

0

4:2

Toro 109-7069

DECAL-CONSOLE

$17.99

$

In Stock, only 1 left!

0

4:3

Toro 116-0211

DECAL-SERVICE AID

$12.99

$

In Stock, only 1 left!

0

6

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 9266934

SCREW

$8.99

$

In Stock, only 3 left!

0

13

Toro 116-0181-03

PLATE-SUPPORT, SEAT TILT

$

$

Not available

14

Toro 116-0179-03

PLATE-FRAME, SEAT TILT

$190.99

$

Usually ships in 3-6 days

0

15

Toro 109-9881-03

PLATE-LATCH, SEAT

$19.99

$

Usually ships in 3-6 days

0

16

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

17

Toro 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

18

Toro 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

20

Toro 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

21

Toro 114-5878

DECAL

$22.99

$

In Stock, Qty 8

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 116-0751

SEAT BELT KIT (SHORT)

$311.99

$

Usually ships in 3-6 days

0

31

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0
