74967 CP - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) REAR WHEEL AND PARK BRAKE ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

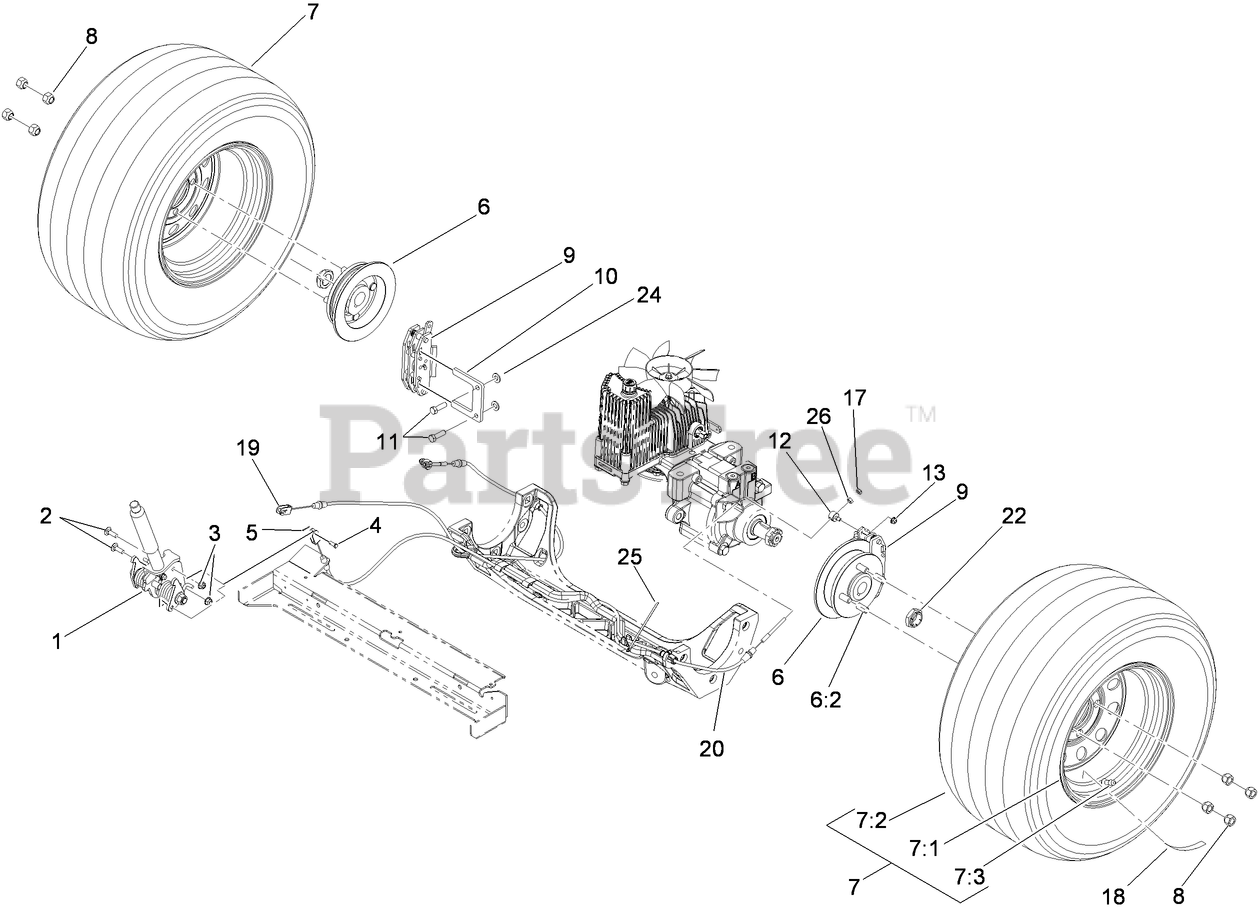

REAR WHEEL AND PARK BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 116-1878

BRAKE HANDLE ASM

$327.99

$

Usually ships in 3-6 days

0

2

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 60-1730

PIN-CLEVIS

$5.49

$

In Stock, Qty 12

0

5

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

6

Toro 116-1746

WHEEL HUB ASM
(Superseded to 142-2701)

$114.99

$

In Stock, Qty 15

0

6:2

Toro 116-1696

STUD-WHEEL

$3.99

$

In Stock, Qty 20+

0

7

Toro 109-3158

WHEEL AND TIRE ASM

$

$

Not available

7:1

Toro 109-3156

RIM

$243.99

$

In Stock, Qty 10

0

7:2

Toro 103-2744

TIRE

$326.99

$

In Stock, only 4 left!

0

7:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

8

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

9

Toro 109-2889

CALIPER-BRAKE

$184.99

$

In Stock, only 2 left!

0

10

Toro 109-0958

PLATE-MOUNT, BRAKE

$15.99

$

In Stock, Qty 8

0

11

Toro 92-5727

SCREW-LOCK, PATCH

$3.99

$

In Stock, Qty 19

0

12

Toro 112-8379

SWIVEL

$12.99

$

In Stock, Qty 10

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

18

Toro 116-2643

DECAL-WHEEL NUT TORQUE
(Superseded to 126-2055)

$6.49

$

In Stock, Qty 11

0

19

Toro 115-3584

CABLE

$67.99

$

In Stock, Qty 7

0

20

Toro 115-3585

CABLE

$67.99

$

In Stock, Qty 6

0

22

Toro 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 116-0940

TIE-CABLE

$6.49

$

Usually ships in 3-6 days

0

26

Toro 3219-1

NUT-HEX

$0.99

$

In Stock, Qty 11

0
