74961 CP (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

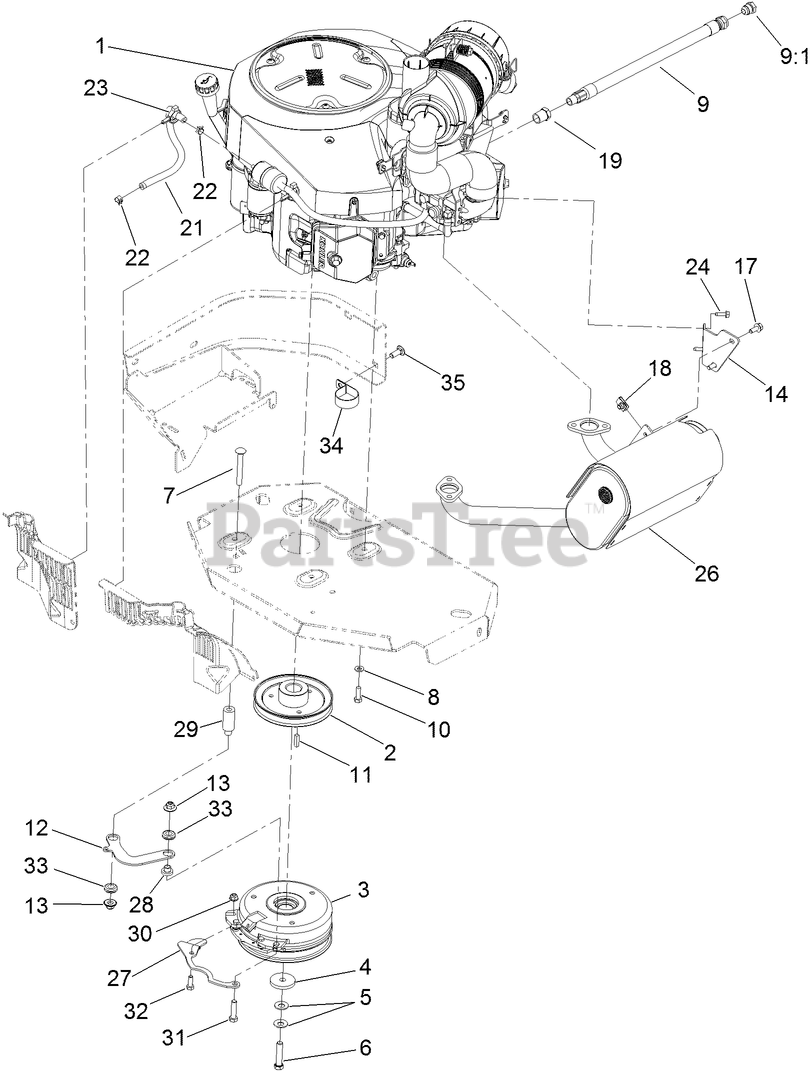

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title
1

ENGINE-KOHLER, CV940-2010

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

ENGINE-KOHLER, CV940-2010

Note: Not serviced separately

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

3

Toro 116-1621

CLUTCH KIT
(Superseded to 126-4185)

$711.99

$

In Stock, Qty 6

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 6

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

6

Toro 109-9762

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 9

0

7

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

8

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

9

Toro 116-0013

OIL DRAIN HOSE ASM
(Superseded to 116-5316)

$54.99

$

In Stock, Qty 14

0

9:1

$8.49

$

Usually ships in 3-6 days

0

10

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

11

$2.49

$

In Stock, Qty 20+

0

12

Toro 116-3317-01

LINK-ANCHOR, CLUTCH

$15.99

$

Usually ships in 3-6 days

0

13

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 109-9218

BRACKET-MUFFLER
(Superseded to 116-9048)

$22.99

$

Usually ships in 3-6 days

0

17

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

18

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

19

Toro 103-1390

BUSHING

$6.49

$

Usually ships in 3-6 days

0

21

Toro 109-0305

HOSE-FUEL
(Superseded to 1-603954)

$8.99

$

In Stock, only 1 left!

0

22

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

23

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

24

$1.49

$

Usually ships in 3-6 days

0

26

Toro 109-9880

MUFFLER

$532.99

$

Usually ships in 3-6 days

0

27

Toro 116-3331-01

BELT-GUIDE

$27.99

$

In Stock, only 1 left!

0

28

Toro 116-3318

SPACER

$19.99

$

In Stock, only 3 left!

0

29

Toro 116-3319

SPACER

$25.99

$

Usually ships in 3-6 days

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 93-5108

GROMMET-RUBBER

$16.99

$

Usually ships in 3-6 days

0

34

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

35

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+
