74959 (3000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) DECK ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

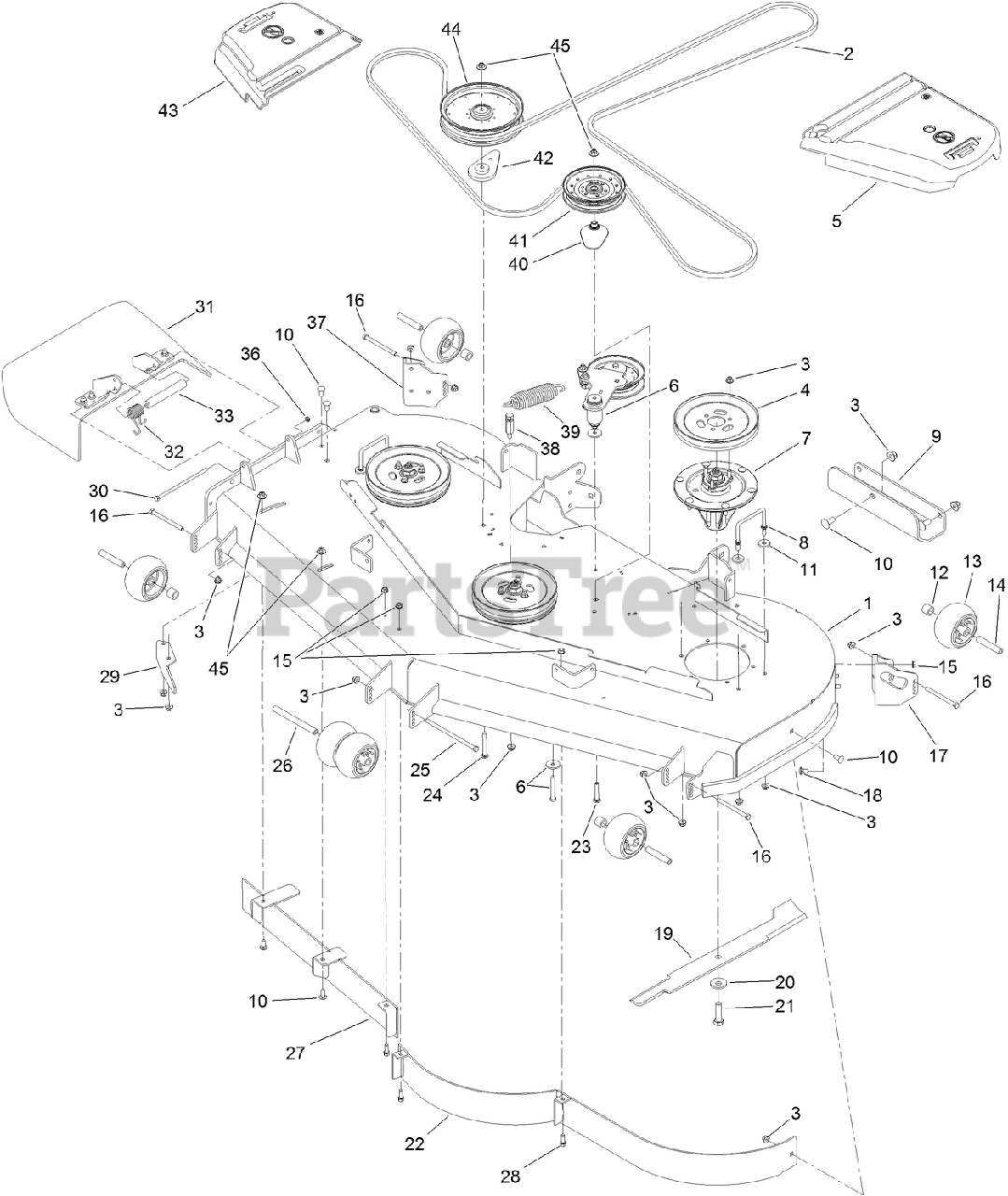

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 114-5820

DECK DECAL ASM
(Superseded to 136-8640)

$3998.99

$

Usually ships in 3-6 days

0

2

Toro 114-5859

BELT-V

$182.99

$

In Stock, only 3 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 105-7733

Pulley

$72.99

$

In Stock, only 1 left!

0

5

Toro 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

6

IDLER ARM ASM

Note: Not serviced separately

$

$

Not available

7

Toro 119-8560

SPINDLE ASM

$581.99

$

In Stock, Qty 11

0

8

Toro 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

9

Toro 121-7975-01

PLATE-SKID

$58.99

$

Usually ships in 3-6 days

0

10

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

11

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

13

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 8

0

14

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

15

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

17

Toro 106-7354-01

MOUNT-WHEEL, LH

$107.99

$

In Stock, only 1 left!

0

18

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

19

Toro 105-7784-03

BLADE-HI FLOW, 24.5 INCH

$45.99

$

In Stock, Qty 20+

0

20

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

21

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

22

Toro 114-5843-01

BAFFLE

$271.99

$

In Stock, only 1 left!

0

23

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

0

24

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

25

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

26

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

27

Toro 115-7465-01

BAFFLE

$163.99

$

Usually ships in 3-6 days

0

28

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

29

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

30

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

31

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

In Stock, only 1 left!

0

32

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

33

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

36

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

37

Toro 106-7355-01

MOUNT-WHEEL, RH

$107.99

$

Usually ships in 3-6 days

0

38

Toro 114-5867

ANCHOR-SPRING, TALL

$14.99

$

In Stock, only 2 left!

0

39

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

40

Toro 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

41

Toro 116-4670

PULLEY-IDLER, FLAT
(Superseded to 136-5404)

$60.99

$

In Stock, only 1 left!

0

42

Toro 109-9416

SPACER-IDLER

$67.99

$

In Stock, only 1 left!

0

43

Toro 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

0

44

Toro 109-8590

PULLEY-IDLER

$180.99

$

In Stock, Qty 6

0

45

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0
