74957 CP - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) COOLING EQUIPMENT ASSEMBLY KAWASAKI FX921V-AS04 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

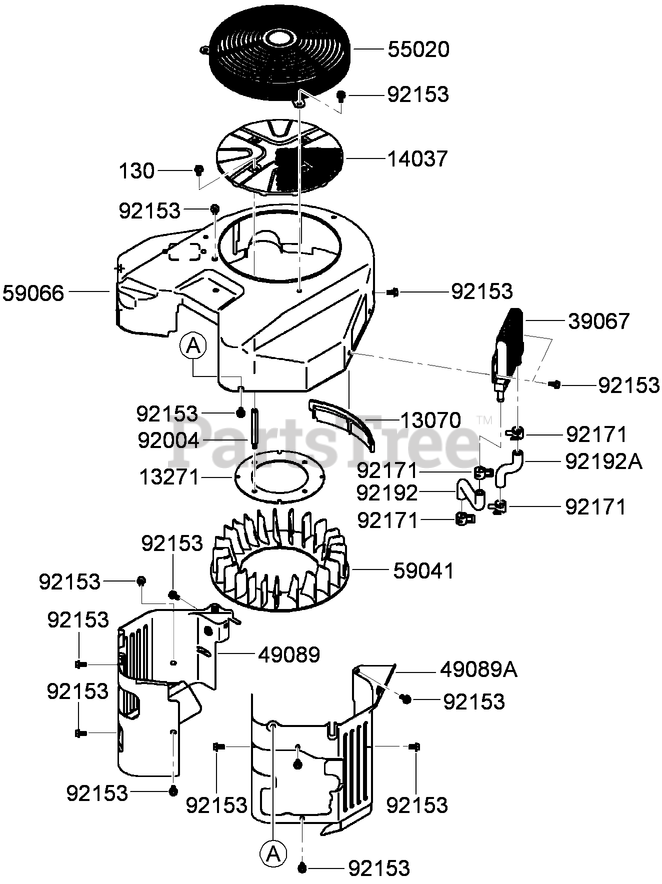

COOLING EQUIPMENT ASSEMBLY KAWASAKI FX921V-AS04 Parts Diagram

  • Title
130

Kawasaki 130AA0610

BOLT-FLANGED (6X10)
(Superseded to 130B0610)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

13070

Kawasaki 13070-7013

GUIDE

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

Usually ships in 2-5 days

0

13271

Kawasaki 13271-7035

PLATE-FAN
(Superseded to 13272-1485)

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

In Stock, only 1 left!

0

14037

Kawasaki 14037-7029-9H

SCREEN

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

39067

Kawasaki 39067-7007

COOLER-OIL
(Superseded to 39067-0018)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

49089

Toro 49089-7062-753

SHROUD-ENGINE

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

49089A

Kawasaki 49089-7063-753

SHROUD-ENGINE

Note: Obtain parts from www.kawpowerepc.com

$39.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 55020-7016-9H

GUARD

Note: Obtain parts from www.kawpowerepc.com

$51.99

$

In Stock, only 1 left!

0

59041

Kawasaki 59041-7013

FAN
(Superseded to 59041-7019)

Note: Obtain parts from www.kawpowerepc.com

$19.99

$

In Stock, Qty 5

0

59066

Kawasaki 59066-7043-753

HOUSING-FAN
(Superseded to 59066-0746-753)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92004

Kawasaki 92004-7021

STUD-SCREEN

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92171

Kawasaki 92171-7015

CLAMP
(Superseded to 92173-1619)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 20+

0

92192

Kawasaki 92192-7078

TUBE

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

In Stock, Qty 19

0

92192A

Kawasaki 92192-7079

TUBE

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, Qty 20+

0
