74956 (3000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) SEAT MOUNTING ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

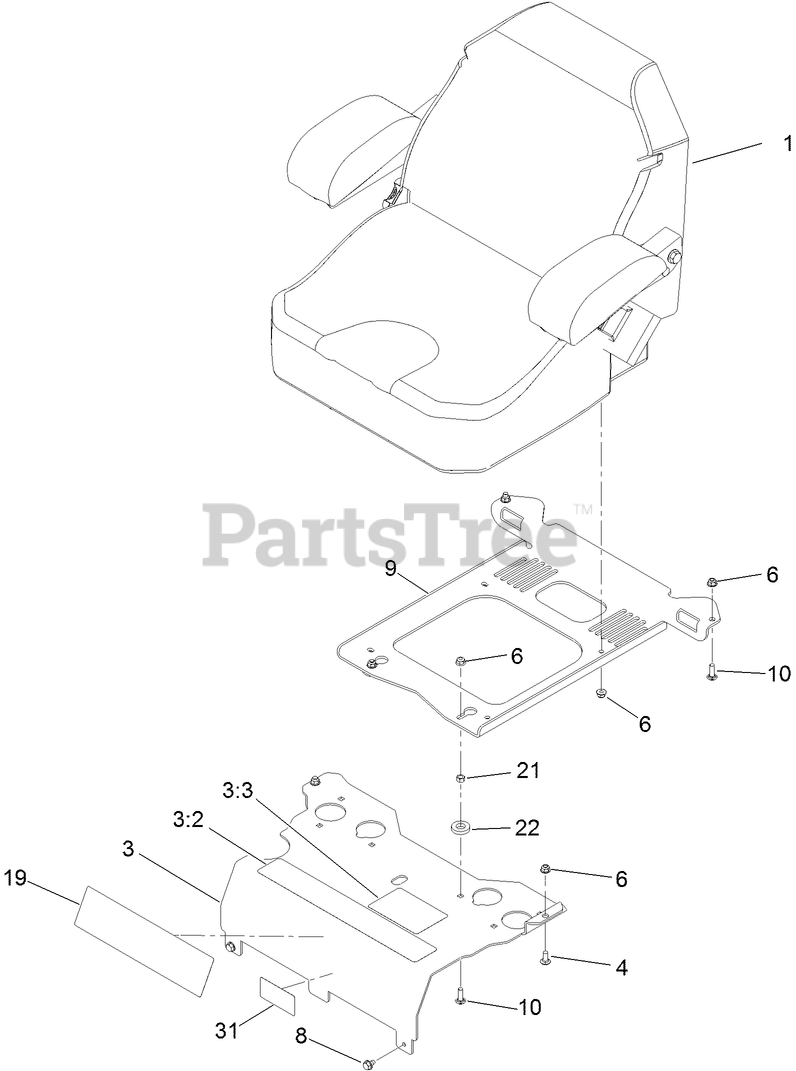

SEAT MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 116-0038

SEAT ASM

$683.99

$

Usually ships in 3-6 days

0

3

Toro 116-2323

MOUNT-SEAT

$266.99

$

Usually ships in 3-6 days

0

3:2

Toro 109-7069

DECAL-CONSOLE

$17.99

$

In Stock, only 1 left!

0

3:3

Toro 116-0211

DECAL-SERVICE AID

$12.99

$

In Stock, only 1 left!

0

4

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 9266934

SCREW

$8.99

$

In Stock, only 3 left!

0

9

Toro 116-0192-03

PLATE-SUPPORT, SEAT

$257.99

$

Usually ships in 3-6 days

0

10

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

19

Toro 114-5878

DECAL

$22.99

$

In Stock, Qty 8

0

21

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

22

Toro 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

31

Toro 121-7560

DECAL-EFI

$8.49

$

Usually ships in 3-6 days

0
