74956 (3000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

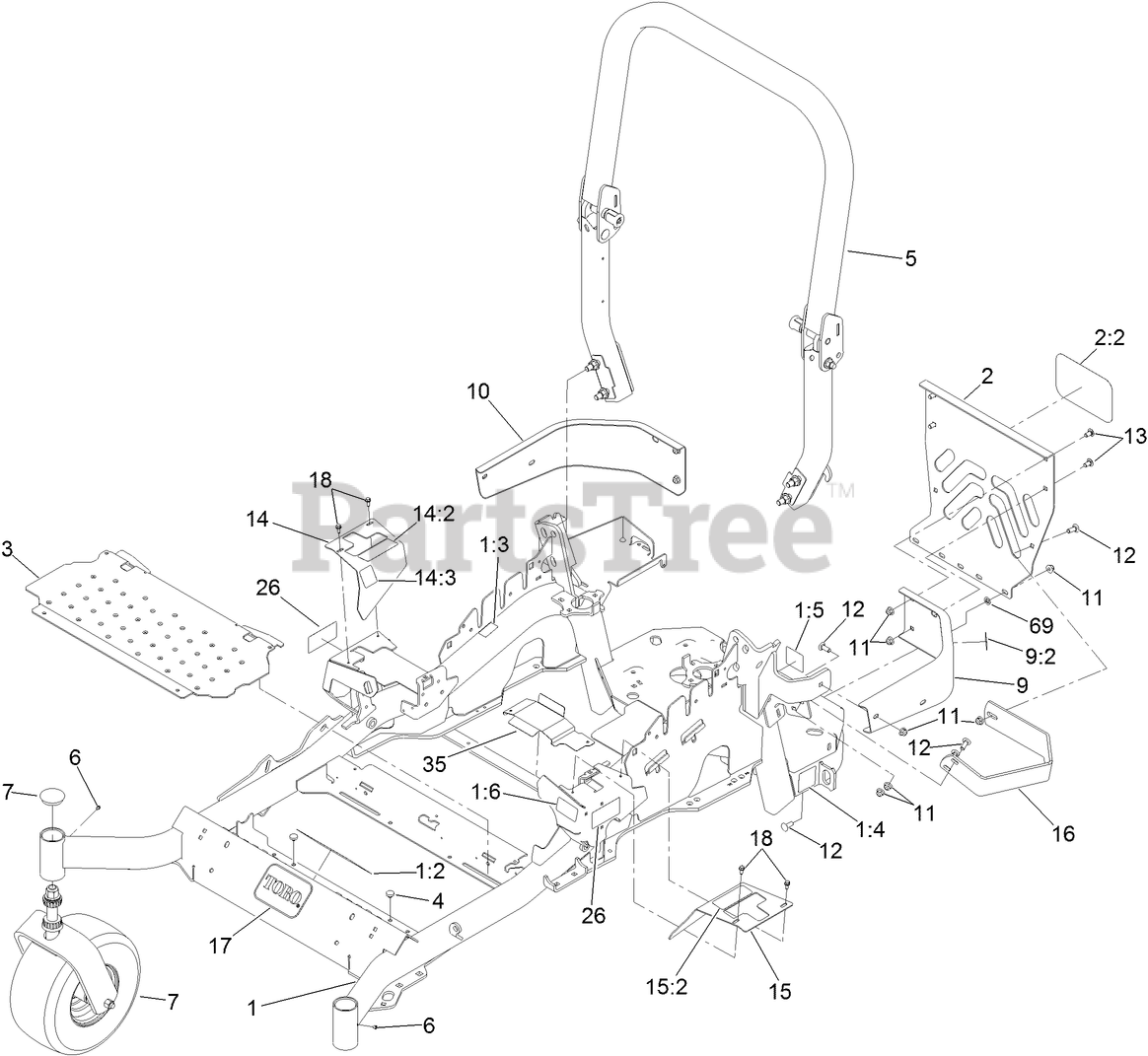

FRAME AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 116-5902

MAINFRAME ASM

$

$

Not available

1:2

Toro 116-3303

DECAL-SLOPE

$18.99

$

Usually ships in 3-6 days

0

1:3

Toro 103-2076

DECAL-CAUTION

$6.99

$

Usually ships in 3-6 days

0

1:4

Toro 116-0205

DECAL-BELT DRIVE

$8.99

$

Usually ships in 3-6 days

0

1:5

Toro 116-4858

DECAL-SPARK ARRESTER

$3.99

$

Usually ships in 3-6 days

0

1:6

Toro 116-1654

DECAL-FUEL FILL

$5.99

$

Usually ships in 3-6 days

0

2

Toro 115-7410

REAR GUARD ASM

$219.99

$

Usually ships in 3-6 days

0

2:2

Toro 67-7320

DECAL

$39.99

$

In Stock, only 2 left!

0

3

Toro 116-8898-01

FLOORPAN

$115.99

$

Usually ships in 3-6 days

0

4

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

5

Toro 116-0231

ROPS ASM

$865.99

$

Usually ships in 3-6 days

0

6

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

7

FRONT CASTER W/FORK ASM

Note: Not serviced separately

$

$

Not available

9

Toro 116-0180

LH BUMPER ASM

$157.99

$

Usually ships in 3-6 days

0

9:2

Toro 103-2076

DECAL-CAUTION

$6.99

$

Usually ships in 3-6 days

0

10

Toro 116-0057-03

BUMPER-RH

$233.99

$

Usually ships in 3-6 days

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, only 1 left!

0

14

Toro 116-5899

RH MOTION CONTROL COVER ASM

$52.99

$

Usually ships in 3-6 days

0

14:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

14:3

Toro 116-5944

DECAL-PARK BRAKE

$15.99

$

In Stock, Qty 14

0

15

Toro 116-0580

LH MOTION CONTROL COVER ASM

$29.99

$

Usually ships in 3-6 days

0

15:2

Toro 109-7232

DECAL-MOTION CONTROL

$5.49

$

In Stock, only 3 left!

0

16

Toro 116-0043-03

GUARD-MUFFLER
(Superseded to 126-2067-03)

$63.99

$

Usually ships in 3-6 days

0

17

Toro 68-3640

DECAL

$21.99

$

In Stock, Qty 16

0

18

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

26

Toro 120-5892

DECAL

$5.99

$

In Stock, Qty 10

0

35

Toro 116-2999-01

GUARD-BELT

$41.99

$

Usually ships in 3-6 days

0

69

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0
