74955 CP - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) FUEL TANK AND FUEL VALVE ASSEMBLY KAWASAKI FX921V-AS04 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

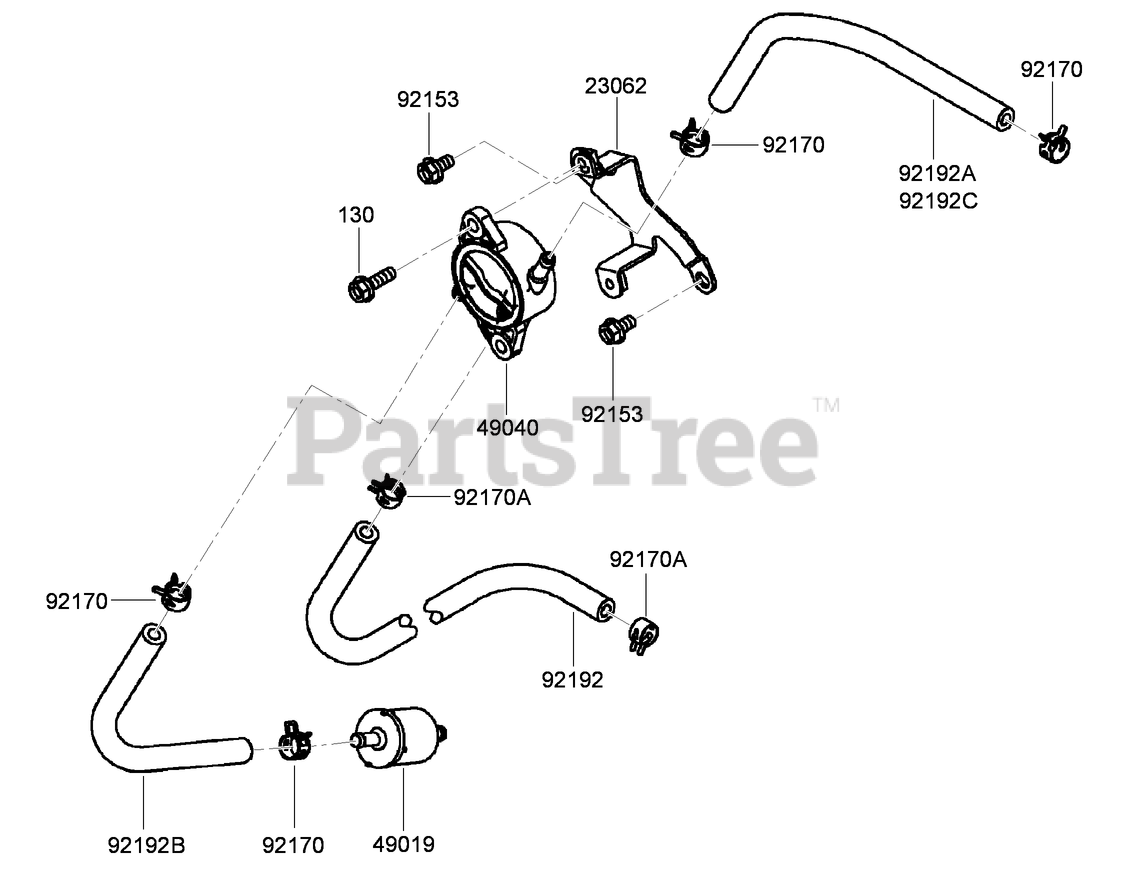

FUEL TANK AND FUEL VALVE ASSEMBLY KAWASAKI FX921V-AS04 Parts Diagram

  • Title

130

Kawasaki 130AA0620

BOLT-FLANGED (6X20)
(Superseded to 130B0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

23062

Kawasaki 23062-7020

BRACKET ASM

Note: Obtain parts from www.kawpowerepc.com

$6.49

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-7001

Filter-Fuel
(Superseded to 49019-0027)

Note: Obtain parts from www.kawpowerepc.com

$9.99

$

In Stock, Qty 20+

0

49040

Kawasaki 49040-7009

PUMP-FUEL

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92170

Kawasaki 92170-2009

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92170A

Kawasaki 92170-2088

Clamp

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92192

Kawasaki 92192-7077

TUBE (6.4X12.7X318)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-7140

TUBE (6.35X12.7X220) (part can be used as substitute on the product and is supplied until stock is exhausted)
(Superseded to 92192-7176)

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

Usually ships in 2-5 days

0

92192B

Toro 92192-7145

TUBE (6.35X12.7X185)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92192C

Kawasaki 92192-7160

TUBE (6.35X12.7X230)
(Superseded to 92192-7177)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available
