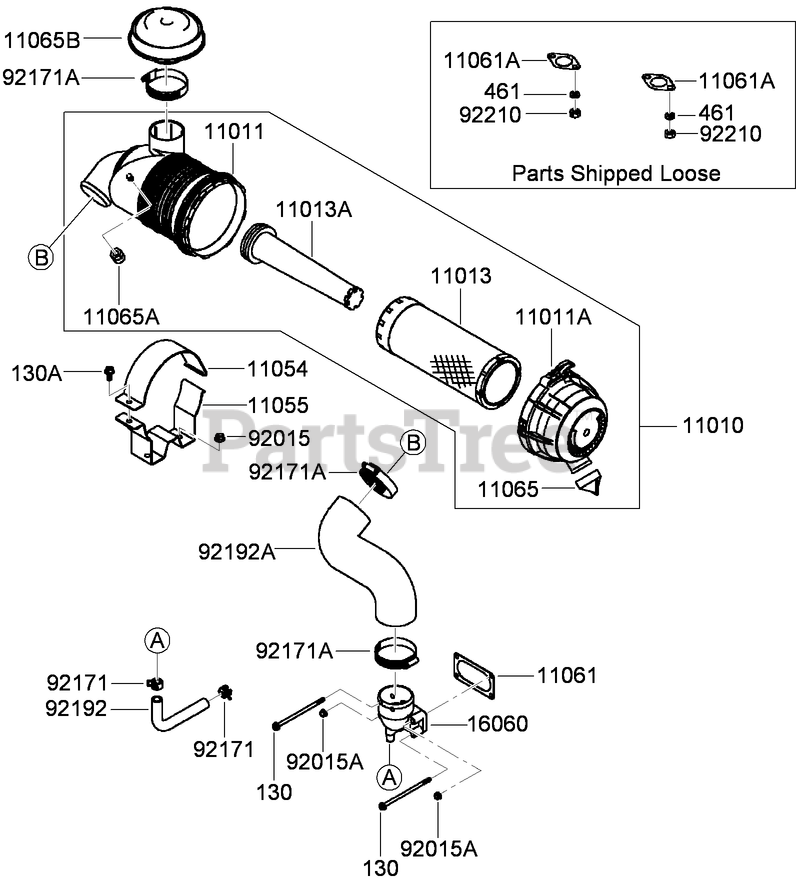

74955 CP - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FX921V-AS04 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

AIR FILTER AND MUFFLER ASSEMBLY KAWASAKI FX921V-AS04 Parts Diagram

  • Title
130

Kawasaki 130AA06120

BOLT-FLANGED (6X120)

Note: Obtain parts from www.kawpowerepc.com

$3.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0816

BOLT-FLANGED (8X16)
(Superseded to 130B0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0800

WASHER-SPRING (8MM)
(Superseded to 92200-0918)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

11010

Kawasaki 11010-7020

AIR FILTER ASM
(Superseded to 99999-7083)

Note: Obtain parts from www.kawpowerepc.com

$224.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 11011-7047

CASE-FILTER, AIR

Note: Obtain parts from www.kawpowerepc.com

$63.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-7050

CASE-FILTER, AIR
(Superseded to 11011-7048)

Note: Obtain parts from www.kawpowerepc.com

$48.99

$

In Stock, only 2 left!

0

11013

Kawasaki 11013-7038

ELEMENT-FILTER, AIR

Note: Obtain parts from www.kawpowerepc.com

$36.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7039

ELEMENT-FILTER, AIR

Note: Obtain parts from www.kawpowerepc.com

$48.99

$

In Stock, Qty 12

0

11054

Kawasaki 11054-7013-9X

BRACKET

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

11055

Kawasaki 11055-7010-9H

BRACKET

Note: Obtain parts from www.kawpowerepc.com

$22.99

$

Usually ships in 2-5 days

0

11061

Kawasaki 11061-7056

GASKET-PIPE, INTAKE

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 20+

0

11061A

Kawasaki 11061-7061

GASKET-MUFFLER
(Superseded to 11060-2383)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7008

Cap

Note: Obtain parts from www.kawpowerepc.com

$19.99

$

In Stock, Qty 20+

0

11065A

Kawasaki 11065-7009

CAP

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, only 1 left!

0

11065B

Kawasaki 11065-7017

CAP
(Superseded to 11065-7034)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16060

Kawasaki 16060-6006

PIPE-INTAKE
(Superseded to 16060-0727)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92015

Kawasaki 92015-1143

Nut

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 10

0

92015A

Kawasaki 92015-1367

NUT

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92171

Toro 92171-7013

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92171A

Kawasaki 92171-7023

CLAMP-FILTER, AIR
(Superseded to 92173-7011)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

92192

Kawasaki 92192-7075

TUBE (12.6X18.6X183)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92192A

Kawasaki 92192-7096

TUBE-FILTER, AIR

Note: Obtain parts from www.kawpowerepc.com

$65.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7027

NUT (M8)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0
