74953 (3000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311000580) (2011) DECK LIFT ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

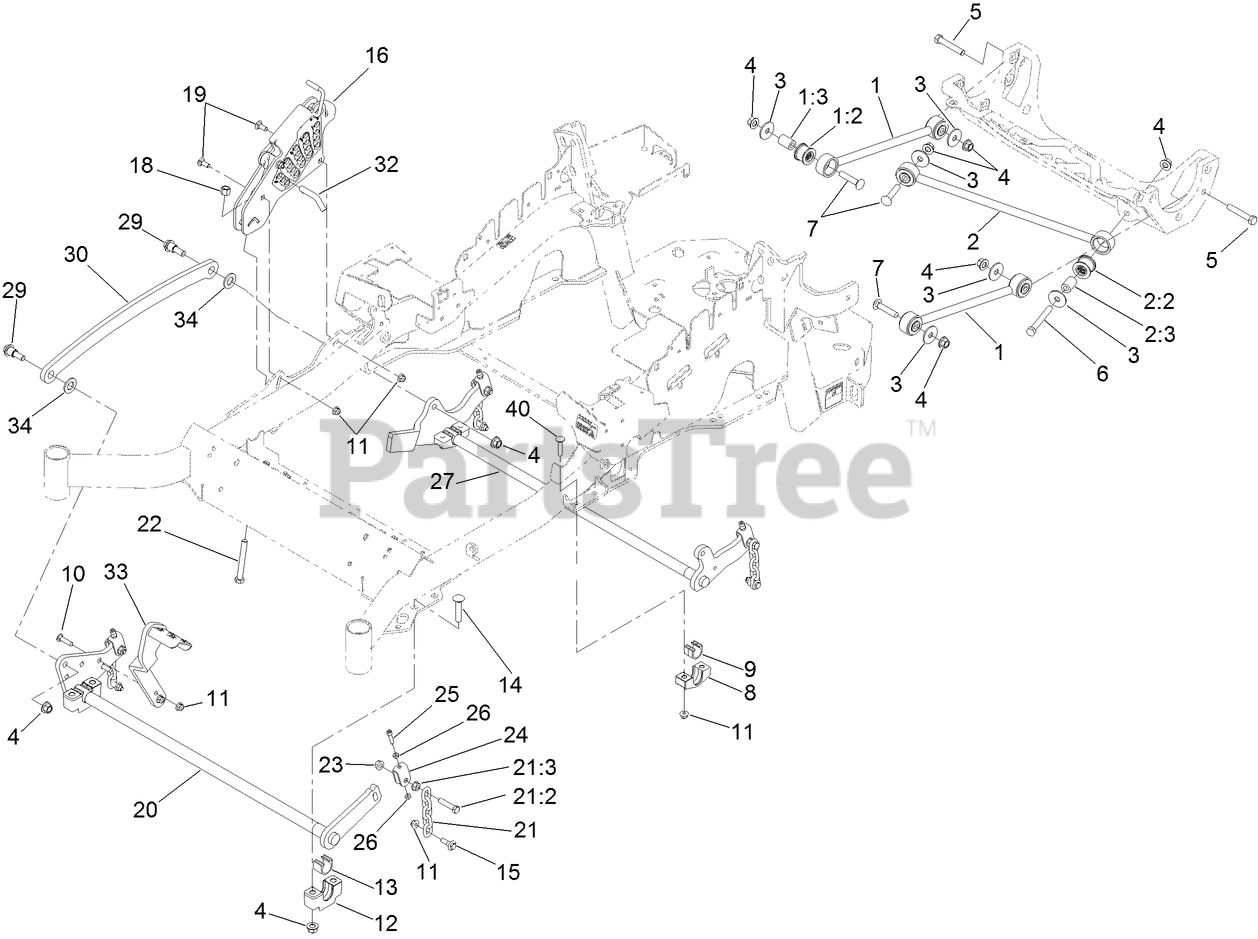

DECK LIFT ASSEMBLY Parts Diagram

  • Title
1

Toro 109-7952

DECK STRUT ASM

$144.99

$

In Stock, Qty 10

0

1:2

Toro 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 11

0

1:3

Toro 109-5010

SPACER

$13.99

$

In Stock, Qty 20+

0

2

Toro 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 5

0

2:2

Toro 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 11

0

2:3

Toro 109-5010

SPACER

$13.99

$

In Stock, Qty 20+

0

3

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

4

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

5

Toro 325-12

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

6

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

7

Toro 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

8

Toro 116-0818-03

SUPPORT-CROSS SHAFT, REAR BEARING
(Superseded to 132-4719)

$44.99

$

In Stock, Qty 12

0

9

Toro 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 20+

0

10

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, Qty 20+

0

13

Toro 109-9410

BEARING-CROSS SHAFT, FRONT

$5.49

$

In Stock, Qty 20+

0

14

Toro 116-1700

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

15

Toro 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 20+

0

16

Toro 116-1970

HEIGHT-OF-CUT ASM

$

$

Not available

18

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

20

Toro 116-2217-03

CROSS SHAFT-FRONT
(Superseded to 126-2475-03)

$172.99

$

Usually ships in 3-6 days

0

21

Toro 116-0756

DECK LIFT CHAIN ASM

$14.99

$

In Stock, Qty 8

0

21:2

Toro 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

21:3

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

22

Toro 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

0

23

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

24

Toro 109-9066

YOKE-ADJUST, DECK

$7.99

$

In Stock, Qty 5

0

25

Toro 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

26

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

27

Toro 116-0459-03

LIFT-DECK, REAR

$334.99

$

Usually ships in 3-6 days

0

29

Toro 116-0780

SCREW-SHOULDER, HHF

$9.49

$

In Stock, only 2 left!

0

30

Toro 116-0797-03

LINK-LIFT, DECK

$136.99

$

Usually ships in 3-6 days

0

32

Toro 109-8757

PIN-HOC

$8.99

$

In Stock, only 3 left!

0

33

Toro 116-3452-01

FOOT LEVER

$

$

Not available

34

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

40

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, Qty 20+
