74951 - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311000402) (2011) HYDRAULIC PUMP, IDLER AND BELT ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

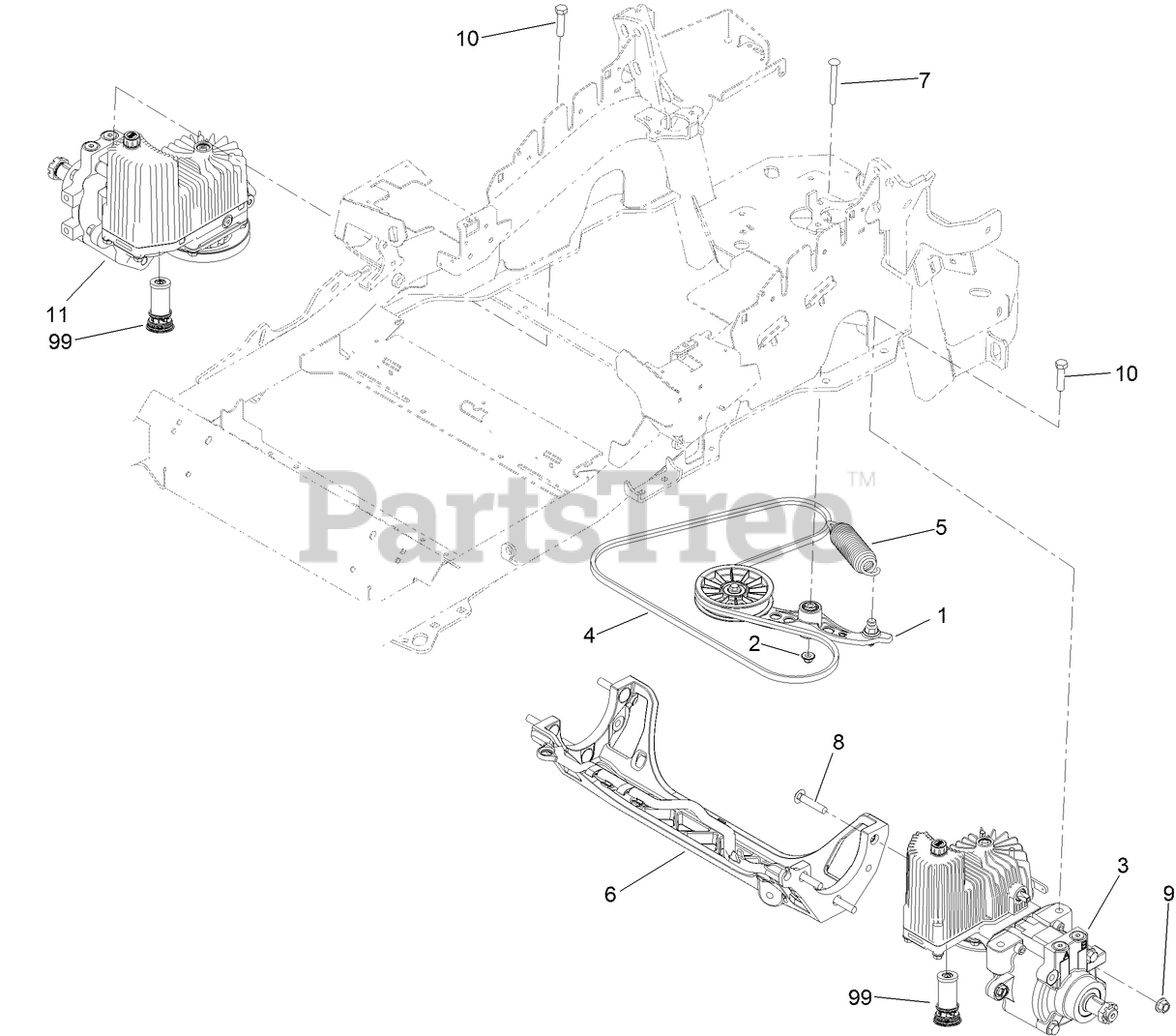

HYDRAULIC PUMP, IDLER AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 116-1255

PUMP IDLER ASM

$217.99

$

In Stock, only 4 left!

0

2

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 116-2976

HYDRO-LH 12CC NO FAN
(Superseded to 135-7901)

$2947.99

$

Usually ships in 3-6 days

0

4

Toro 116-1953

BELT-V
(Superseded to 126-8475)

$45.99

$

In Stock, only 4 left!

0

5

Toro 116-0133

EXTENSION-SPRING
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

6

Toro 109-9375

CRADLE-HYDRO
(Superseded to 116-7558)

$206.99

$

Usually ships in 3-6 days

0

7

Toro 116-1502

BOLT-SHOULDER, CARRIAGE

$7.99

$

In Stock, only 4 left!

0

8

Toro 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

0

9

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

11

Toro 116-2977

HYDRO-RH 12CC NO FAN
(Superseded to 135-7902)

$2947.99

$

Usually ships in 3-6 days

0

99

Toro 114-4713

HYPR-OIL 500 (QUART)

Note: Not illustrated

$16.99

$

Usually ships in 3-6 days

0

99

Toro 114-4714

HYPR-OIL 500 (GALLON)

Note: Not illustrated

$60.99

$

In Stock, Qty 6

0

99

Toro 114-4715

HYPR-OIL 500-5 (5 GALLON)

Note: Not illustrated

$313.99

$

Usually ships in 3-6 days

0

99

Toro 117-0390

FILTER-HYDRO

$56.99

$

In Stock, only 3 left!

0
