74951 - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311000402) (2011) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

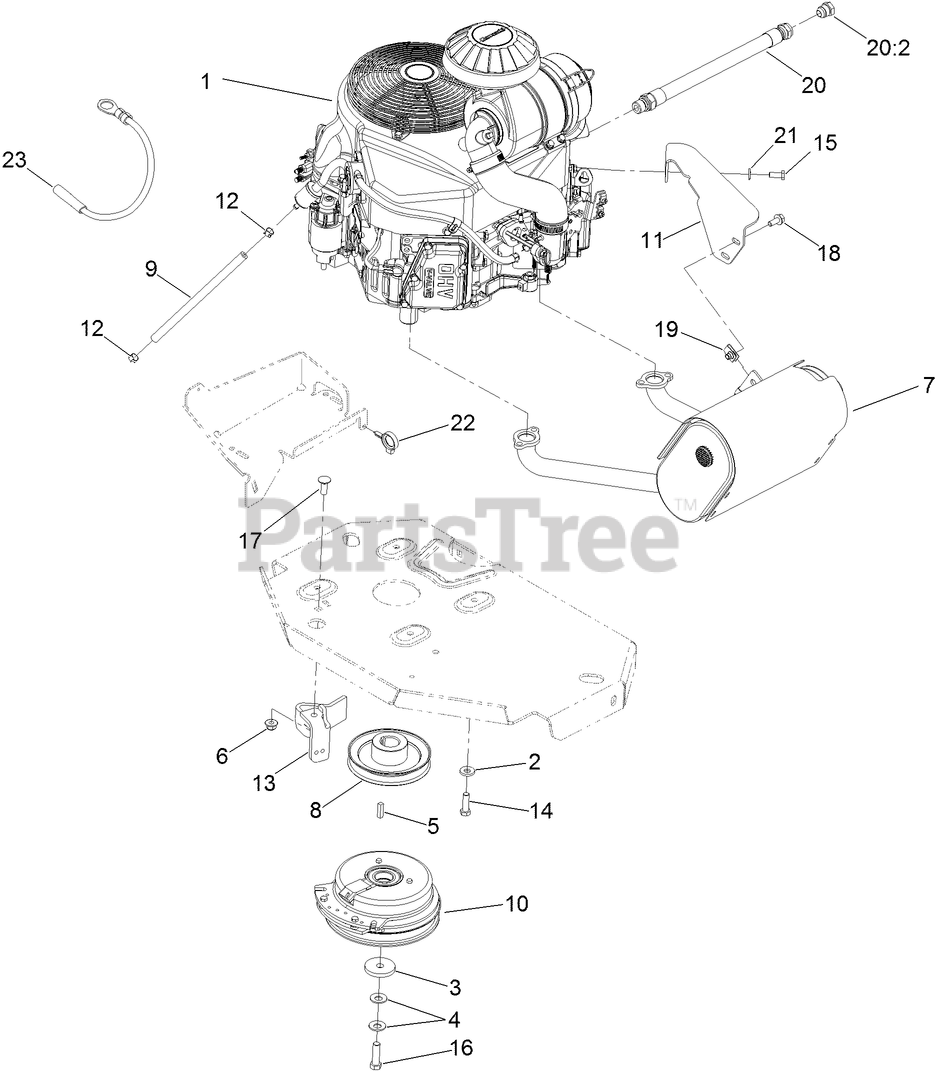

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FX600V-S13-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FX600V-S13-R

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 9

0

4

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

5

Toro 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 116-2117

MUFFLER

$519.99

$

Usually ships in 3-6 days

0

8

Toro 116-1946

SHEAVE-PUMP, DRIVE

$74.99

$

In Stock, only 1 left!

0

9

Toro 110-3447

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

10

Toro 116-1947

CLUTCH

$470.99

$

Usually ships in 3-6 days

0

11

Toro 116-2157

BRACKET-MUFFLER

$35.99

$

In Stock, only 1 left!

0

12

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Toro 116-2612-01

CLUTCH-ANCHOR

$55.99

$

In Stock, only 2 left!

0

14

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 109-9761

SCREW-HH, W/LOCTITE

$5.49

$

In Stock, Qty 7

0

17

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 14

0

19

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

20

Toro 109-4490

OIL DRAIN HOSE ASM
(Superseded to 116-4924)

$37.99

$

In Stock, Qty 5

0

20:2

Toro 109-1012

PLUG

$8.49

$

Usually ships in 3-6 days

0

21

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

22

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

23

Toro 116-4792

HARNESS-GROUND, SOLENOID

$

$

Not available
