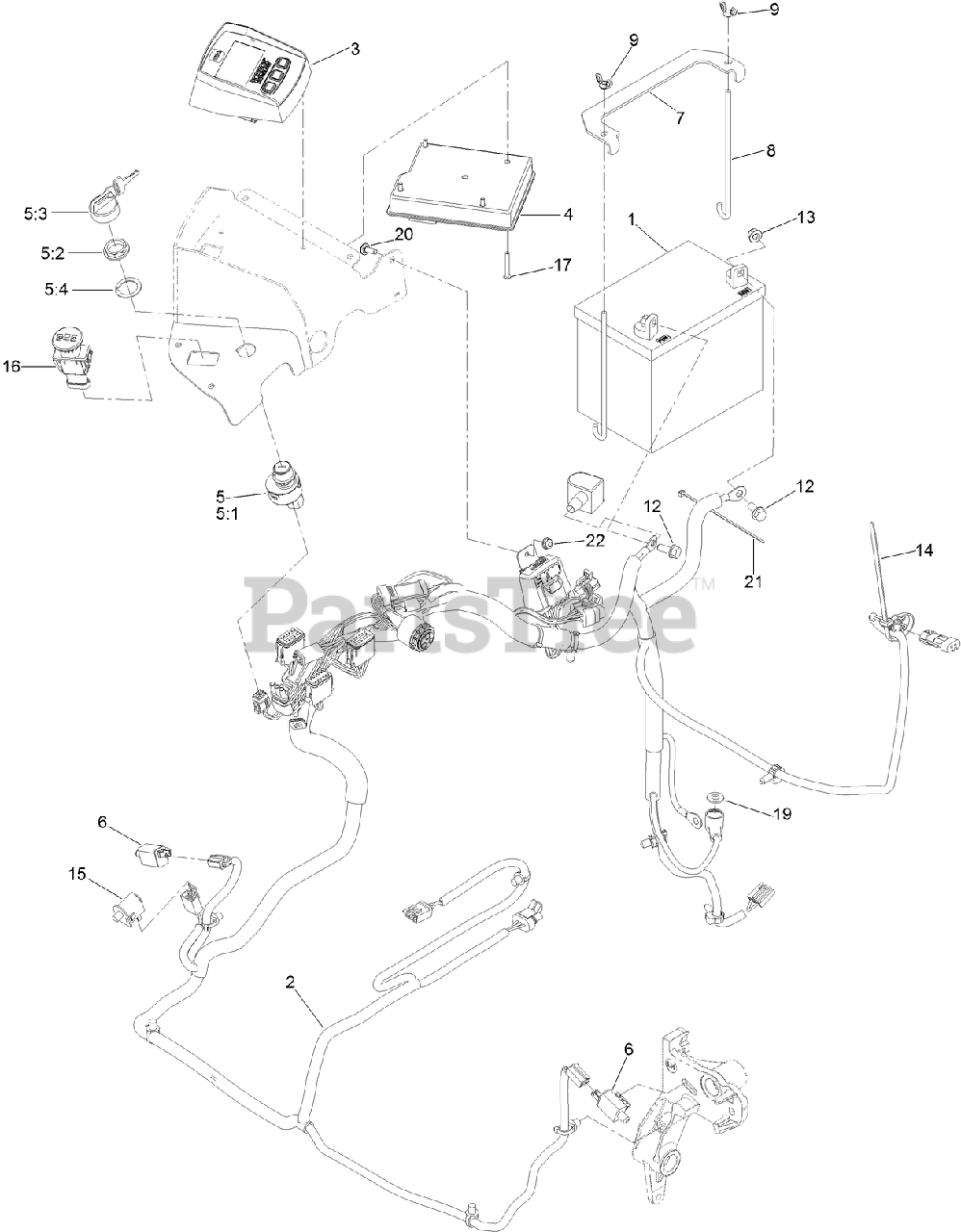

74947 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 402000000 - 403247299) Electrical Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

Electrical Assembly Parts Diagram

  • Title

1

BATTERY (340 CCA, WET)

Note: Not serviced separately

$

$

Not available

1

BATTERY (340 CCA, WET)

Note: Obtain locally.

$

$

Not available

2

Toro 135-3855

HARNESS-WIRE

$

$

Not available

3

Toro 126-9976

MODULE-HORIZON

$581.99

$

Usually ships in 3-6 days

0

4

Toro 135-3427

MODULE-MCU

$352.99

$

Usually ships in 3-6 days

0

5

Toro 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

5:1

Deck ASM

Note: Not serviced separately

$

$

Not available

5:2

Toro 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

5:3

Toro 106-5270

IGNITION KEY SET

$21.99

$

In Stock, Qty 18

0

5:4

Toro 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

6

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

7

Toro 116-0042-03

STRAP-TIE DOWN, BATTERY

$22.99

$

In Stock, only 2 left!

0

8

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 9

0

9

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

12

Toro 323-45

SCREW-HH

$4.49

$

In Stock, only 1 left!

0

13

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

14

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

15

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 10

0

16

Toro 126-6187

SWITCH-PTO, SEALED

$54.99

$

In Stock, Qty 20+

0

17

Toro 126-5092

SCREW-PPH

$3.49

$

In Stock, Qty 8

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

20

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

21

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
