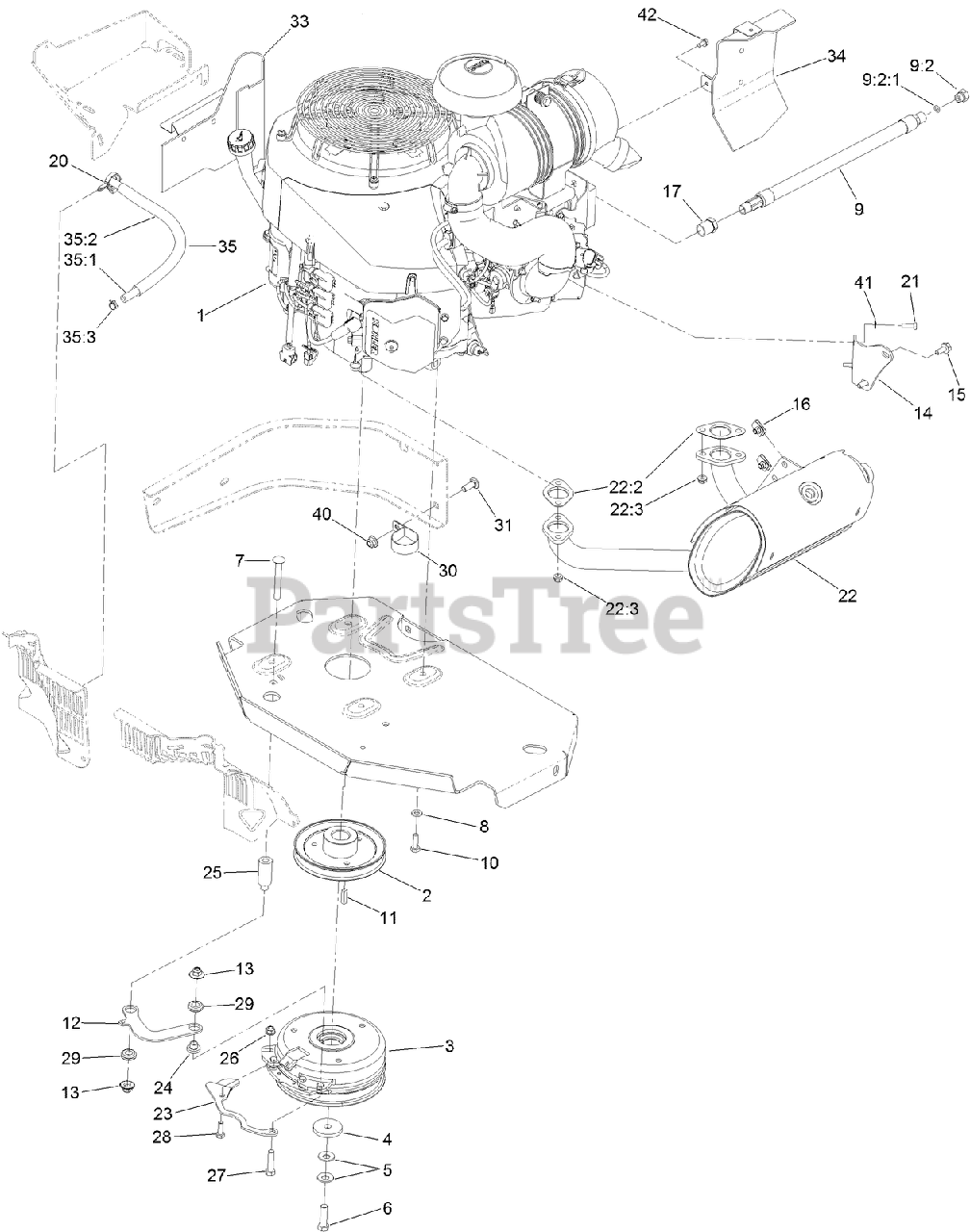

74947 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 315000001 - 315999999) (2015) ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

ENGINE, CLUTCH AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, ECV940 EFI-EGOV

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

ENGINE-KOHLER, ECV940 EFI-EGOV

Note: Not serviced separately

$

$

Not available

2

Toro 109-9905

SHEAVE
(Superseded to 142-9445)

$51.99

$

In Stock, Qty 19

0

3

Toro 126-4185

CLUTCH KIT

$711.99

$

In Stock, Qty 6

0

4

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

5

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

6

Toro 109-9761

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 6

0

7

Toro 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

8

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

9

Toro 116-5316

OIL DRAIN HOSE ASM

$54.99

$

In Stock, Qty 14

0

9:2

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

9:2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

11

Toro 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

12

Toro 116-3317-01

LINK-ANCHOR, CLUTCH

$15.99

$

Usually ships in 3-6 days

0

13

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 116-9048

Bracket-Muffler

$22.99

$

Usually ships in 3-6 days

0

15

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

16

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

17

Toro 103-1390

BUSHING

$6.49

$

Usually ships in 3-6 days

0

20

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

21

Toro 116-4295

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

22

Toro 126-2924

MUFFLER KIT
(Superseded to 126-5423)

$611.99

$

Usually ships in 3-6 days

0

22:2

Toro 126-0359

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

22:3

Toro 116-9626

NUT-FLANGE, LOCK

$1.49

$

Usually ships in 3-6 days

0

23

Toro 116-3331-01

BELT-GUIDE

$27.99

$

In Stock, only 1 left!

0

24

Toro 116-3318

SPACER

$19.99

$

In Stock, only 3 left!

0

25

Toro 116-3319

SPACER

$25.99

$

Usually ships in 3-6 days

0

26

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

27

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 93-5108

GROMMET-RUBBER

$16.99

$

Usually ships in 3-6 days

0

30

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

31

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

33

Toro 126-0212

BAFFLE-RH

$112.99

$

Usually ships in 3-6 days

0

34

Toro 126-2852

BAFFLE ASM

$

$

Not available

35

Toro 126-1414

FUEL LINE ASM

$42.99

$

Usually ships in 3-6 days

0

35:1

Toro 109-0286

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

35:2

Toro 126-1417

SLEEVE-THERMAL

$35.99

$

Usually ships in 3-6 days

0

35:3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

40

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

41

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

42

Toro 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0
