74945 (5000) - Toro 72" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 401800000 - 403226783) Deck Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Rear-Discharge Deck

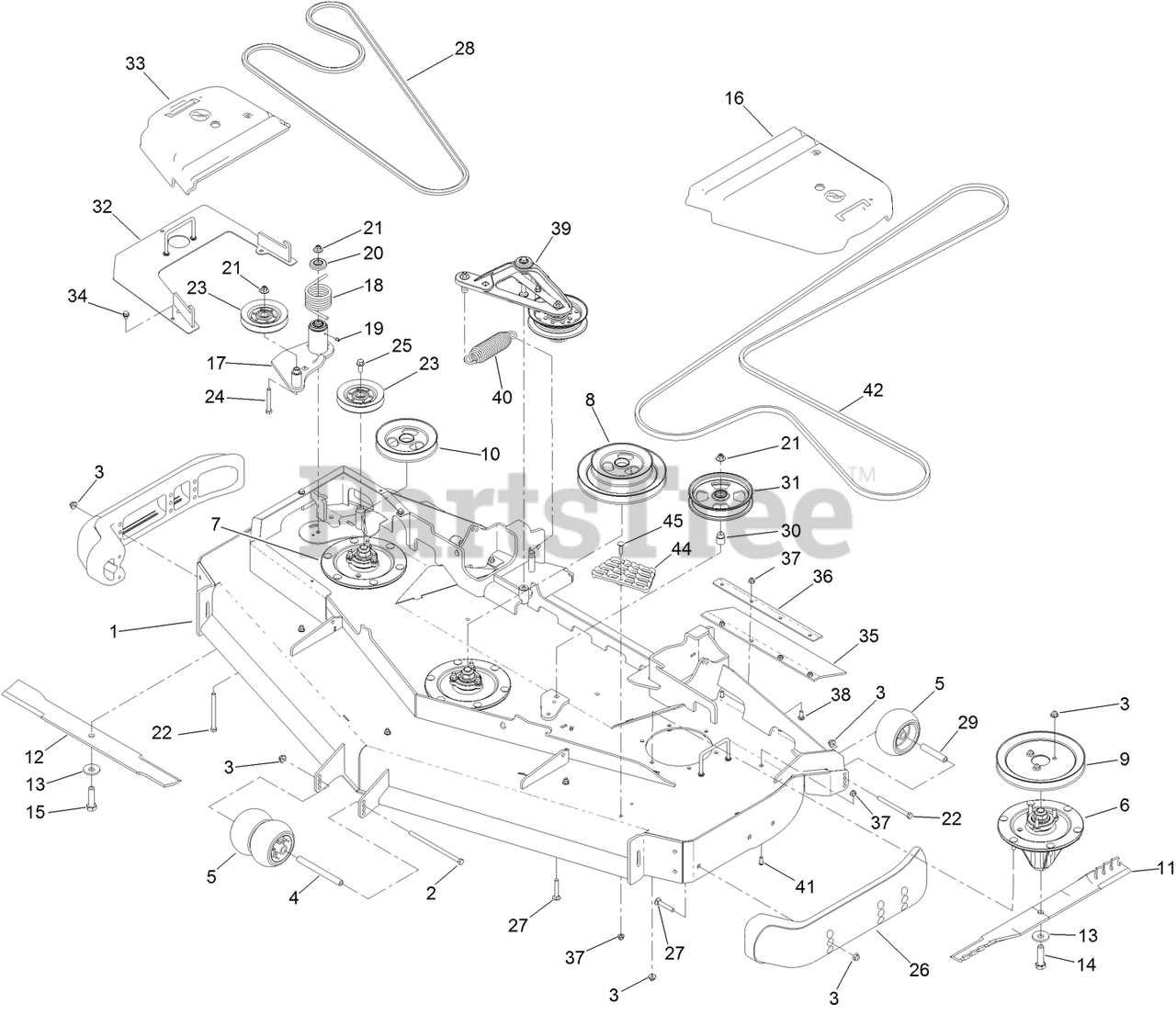

Deck Assembly Parts Diagram

  • Title

1

Toro 136-8633

DECK DECAL ASM

$3977.99

$

Usually ships in 3-6 days

0

2

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

5

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

6

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, Qty 12

0

7

Toro 127-0570

LH SPINDLE ASM

$518.99

$

Usually ships in 3-6 days

0

8

Toro 125-9315

PULLEY ASM

$191.99

$

Usually ships in 3-6 days

0

9

Toro 125-9318

SHEAVE

$67.99

$

Usually ships in 3-6 days

0

10

Toro 125-9316

PULLEY

$108.99

$

Usually ships in 3-6 days

0

11

Toro 105-7719-03

BLADE-ATOMIC, 24.5IN

$52.99

$

In Stock, only 4 left!

0

12

Toro 125-9327-01

BLADE-ROTARY, 24.5IN (LOW FLOW)

$37.99

$

In Stock, only 2 left!

0

13

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 20+

0

14

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

15

Toro 125-9326

SCREW-BLADE, LH

$24.99

$

In Stock, only 4 left!

0

16

Toro 109-6938

COVER-BELT, LH

$96.99

$

In Stock, Qty 20+

0

17

Toro 126-0853

IDLER ASM

$254.99

$

Usually ships in 3-6 days

0

18

Toro 108-1921

SPRING-TORSION

$30.99

$

Usually ships in 3-6 days

0

19

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

20

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

0

21

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

23

Toro 126-1478

SHEAVE

$50.99

$

In Stock, only 2 left!

0

24

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

25

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

26

Toro 112-1479

SKID-BUMPER, DECK

$104.99

$

Usually ships in 3-6 days

0

27

Toro 323-17

SCREW-HH

$5.99

$

In Stock, Qty 8

0

28

Toro 116-8501

BELT

$125.99

$

Usually ships in 3-6 days

0

29

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

30

Toro 1-633456

BUSHING-IDLER

$4.99

$

In Stock, Qty 20+

0

31

Toro 136-5404

PULLEY-IDLER, FLAT

$60.99

$

In Stock, Qty 18

0

32

Toro 125-9374-01

COVER-REVERSE DRIVE

$149.99

$

Usually ships in 3-6 days

0

33

Toro 116-0094

COVER-BELT, RH

$86.99

$

In Stock, Qty 15

0

34

Toro 9266934

SCREW

$8.99

$

In Stock, only 3 left!

0

35

Toro 125-9380

GUARD-TIRE

$26.99

$

In Stock, only 2 left!

0

36

Toro 126-0414-01

SUPPORT-OUTER FLAP

$23.99

$

Usually ships in 3-6 days

0

37

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

39

Toro 126-1720

DECK IDLER ASM

$254.99

$

In Stock, only 2 left!

0

40

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 20+

0

41

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

42

Toro 109-8070

BELT

$148.99

$

In Stock, Qty 8

0

44

Toro 126-4781-03

STEP-DECK

$28.99

$

In Stock, only 1 left!

0

45

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
