74943 (5000) - Toro 60" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 403011067 - 999999999) Deck Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Rear-Discharge Deck

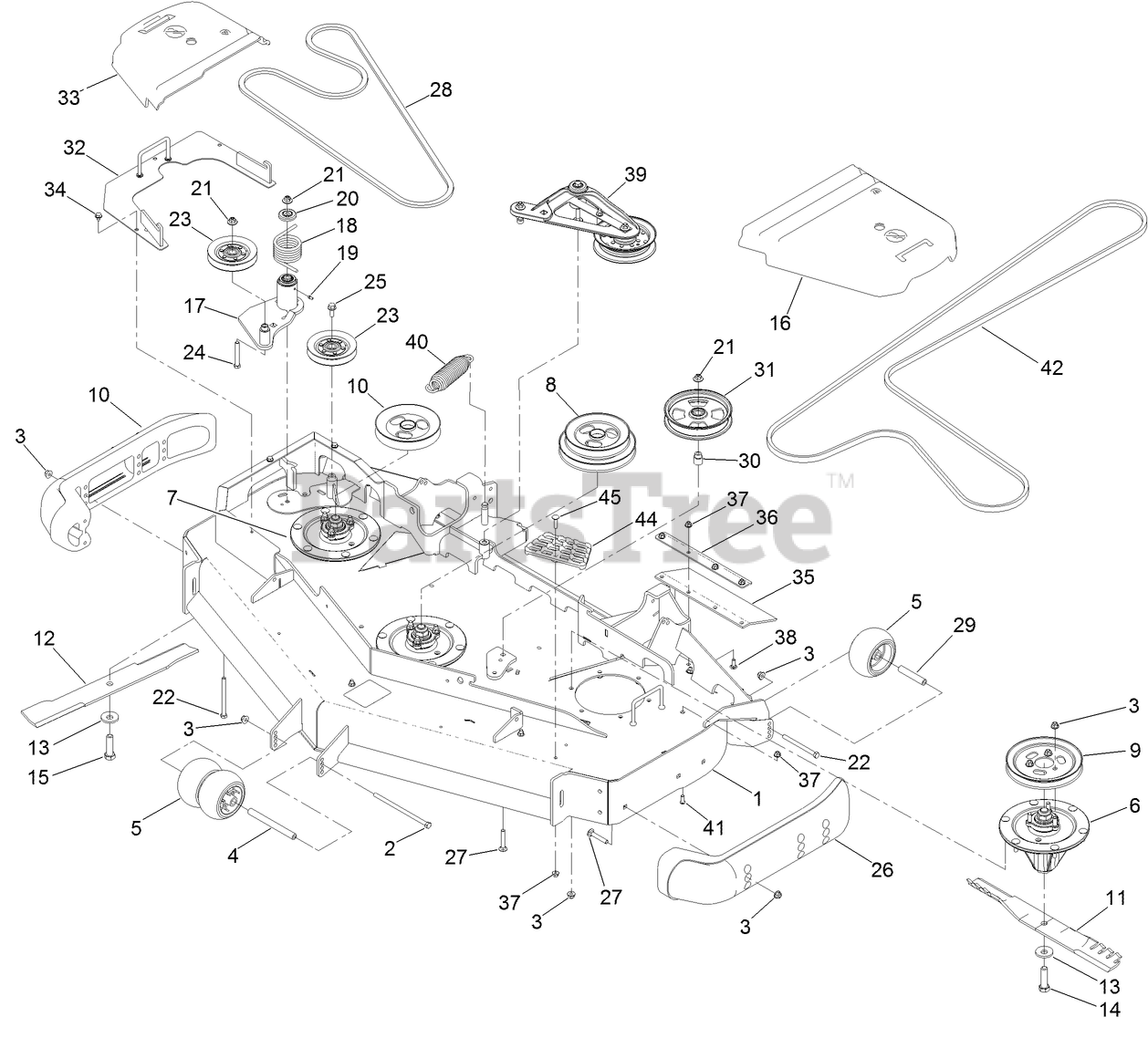

Deck Assembly Parts Diagram

  • Title

1

Toro 136-8646

DECK DECAL ASM

$3863.99

$

Usually ships in 3-6 days

0

2

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

5

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

6

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, only 2 left!

0

7

Toro 127-0570

LH SPINDLE ASM

$518.99

$

Usually ships in 3-6 days

0

8

Toro 125-9317

PULLEY

$217.99

$

In Stock, only 1 left!

0

9

Toro 105-7734

PULLEY

$49.99

$

In Stock, Qty 9

0

10

Toro 125-9316

PULLEY

$108.99

$

In Stock, only 1 left!

0

11

Toro 105-8777-03

BLADE-ATOMIC, 20.5IN

$45.99

$

In Stock, only 2 left!

0

12

Toro 125-9329-01

BLADE-ROTARY, 20.5IN LOW FLOW

$42.99

$

In Stock, only 3 left!

0

13

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

14

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

15

Toro 125-9326

SCREW-BLADE, LH

$24.99

$

In Stock, only 4 left!

0

16

Toro 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

17

Toro 126-0853

IDLER ASM

$243.99

$

Usually ships in 3-6 days

0

18

Toro 108-1921

SPRING-TORSION

$30.99

$

Usually ships in 3-6 days

0

19

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

20

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

21

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

23

Toro 126-1478

SHEAVE

$50.99

$

In Stock, only 2 left!

0

24

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

25

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

26

Toro 112-1479

SKID-BUMPER, DECK

$101.99

$

Usually ships in 3-6 days

0

27

Toro 323-17

SCREW-HH

$5.99

$

In Stock, only 2 left!

0

28

Toro 116-8187

BELT

$111.99

$

In Stock, Qty 8

0

29

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

30

Toro 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

31

Toro 136-5404

PULLEY-IDLER, FLAT

$60.99

$

In Stock, only 1 left!

0

32

Toro 116-8195-01

COVER-DRIVE REVERSE

$173.99

$

Usually ships in 3-6 days

0

33

Toro 116-8190

COVER-BELT, RH

$43.99

$

In Stock, only 1 left!

0

34

Toro 9266934

SCREW

$8.99

$

In Stock, only 2 left!

0

35

Toro 116-8191

GUARD-TIRE

$17.99

$

Usually ships in 3-6 days

0

36

Toro 126-0413-01

SUPPORT-OUTER FLAP

$20.99

$

Usually ships in 3-6 days

0

37

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

38

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

39

Toro 126-1720

DECK IDLER ASM

$243.99

$

In Stock, only 2 left!

0

40

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

41

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

42

Toro 125-9371

BELT

$157.99

$

In Stock, only 3 left!

0

44

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

45

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
