74943 (5000) - Toro 60" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 400000000 - 402099999) FUEL SYSTEM ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Rear-Discharge Deck

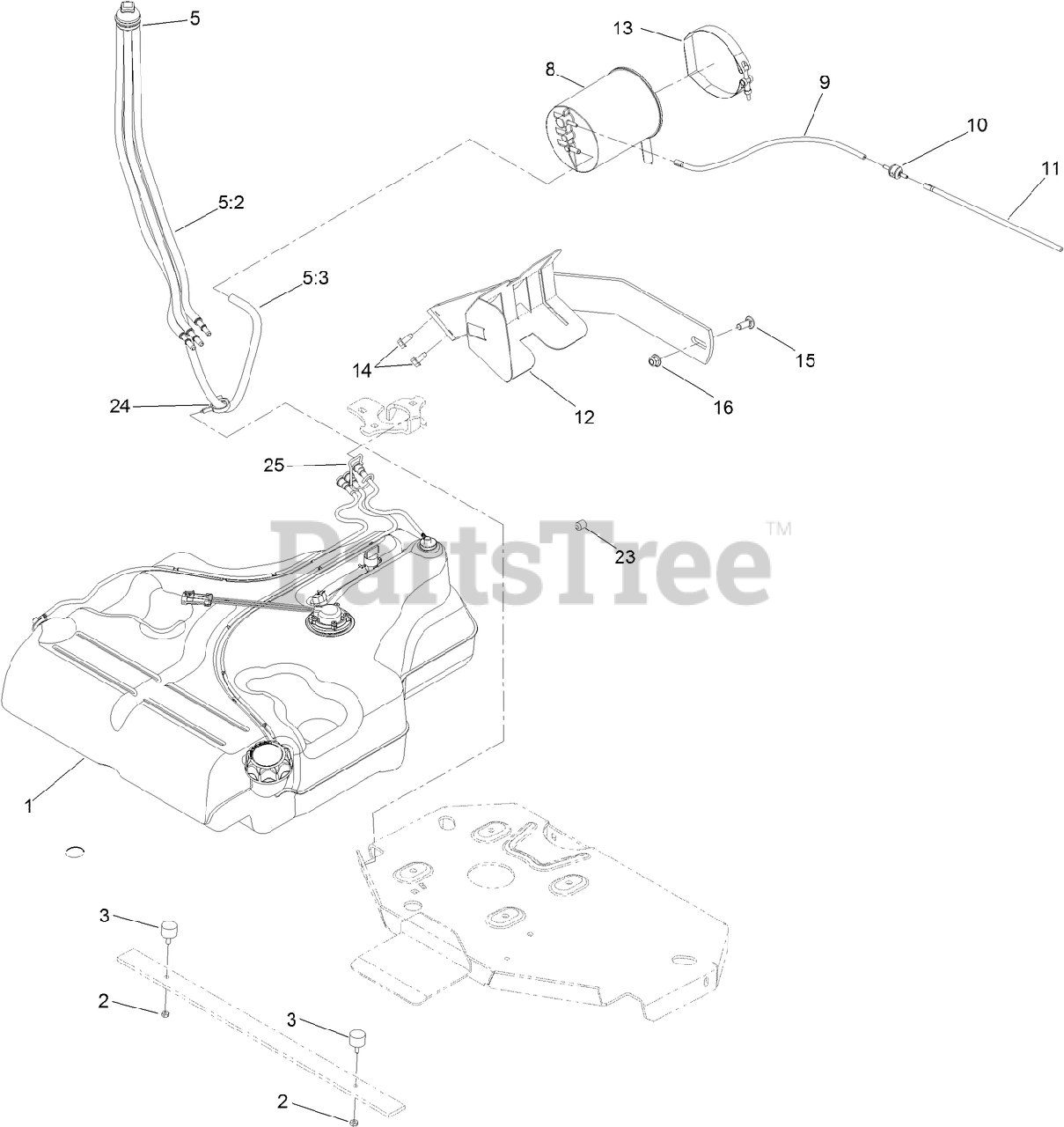

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 126-6494

FUEL TANK ASM
(Superseded to 135-0643)

$702.99

$

Usually ships in 3-6 days

0

2

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

3

Toro 116-6380

BUMPER-RUBBER (W/ STUD)
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

5

Toro 127-0583

FUEL MANIFOLD VENT ASM

$70.99

$

Usually ships in 3-6 days

0

5:2

Toro 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0

5:3

Toro 108-5376

HOSE-FUEL

$43.99

$

In Stock, only 1 left!

0

8

Toro 116-1442

CANISTER-CARBON, 1200CC

$160.99

$

Usually ships in 3-6 days

0

9

Toro 116-2963

HOSE-VENT, FORMED

$13.99

$

In Stock, only 1 left!

0

10

Toro 133-8499

VALVE-CHECK, VACUUM

$15.99

$

In Stock, only 2 left!

0

11

Toro 119-4235

HOSE-VENT, FORMED

$5.49

$

Usually ships in 3-6 days

0

12

Toro 116-1433-03

MOUNT-CANISTER

$213.99

$

Usually ships in 3-6 days

0

13

Toro 116-2228

CLAMP-T-BOLT

$46.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

15

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 116-4464

PLUG-PORT

$1.49

$

Usually ships in 3-6 days

0

24

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

25

Toro 116-6005

RETAINER-LINE, VAPOR

$5.49

$

Usually ships in 3-6 days

0
