Toro 74942 TE (6000) - Toro 152cm Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 315000001 - 315999999) (2015) DECK LIFT ASSEMBLY Parts Lookup with Diagrams

1

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, only 3 left!

2

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

4

Toro 109-5013

PANHARD ROD ASM

$142.99

$

In Stock, Qty 6

4:2

Toro 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

4:3

Toro 109-5010

SPACER

$12.99

$

In Stock, Qty 6

5

Toro 109-7173

BEARING-CROSS SHAFT, REAR

$5.49

$

In Stock, Qty 6

6

Toro 116-1919-01

LEVER-FOOT

$99.99

$

Usually ships in 3-6 days

7

Toro 117-3842

HEIGHT-OF-CUT ASM

$279.99

$

Usually ships in 3-6 days

8

Toro 126-2477-03

DECKLIFT-FRONT

$241.99

$

Usually ships in 3-6 days

9

Toro 116-0818-03

SUPPORT-CROSS SHAFT, REAR BEARING

(Superseded to 132-4719) 

$44.99

$

In Stock, only 3 left!

10

Toro 109-7952

DECK STRUT ASM

$144.99

$

In Stock, only 2 left!

10:2

Toro 109-5009

BUSHING-SUSPENSION, RUBBER

$5.49

$

In Stock, Qty 15

10:3

Toro 109-5010

SPACER

$12.99

$

In Stock, Qty 6

11

Toro 116-0797-03

LINK-LIFT, DECK

$136.99

$

Usually ships in 3-6 days

12

Toro 116-2645-03

LIFT-DECK, REAR

$394.99

$

Usually ships in 3-6 days

13

Toro 116-5584

PIN-HOC

$5.49

$

In Stock, only 4 left!

14

Toro 109-9409

SUPPORT-CROSS SHAFT, BEARING

$14.99

$

In Stock, only 4 left!

15

Toro 109-9410

BEARING-CROSS SHAFT, FRONT

$5.49

$

In Stock, Qty 13

16

Toro 109-9840

SCREW-SHOULDER, HHF

$5.49

$

In Stock, Qty 11

17

Toro 325-12

SCREW-HH

$6.49

$

In Stock, only 2 left!

18

Toro 325-17

SCREW-HH

$5.99

$

In Stock, only 1 left!

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

20

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

21

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

22

Toro 3233-34

SCREW-CARR

$9.49

$

In Stock, only 3 left!

23

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

24

Toro 116-1700

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

25

Toro 116-0559

BOLT-TAP

$6.49

$

Usually ships in 3-6 days

26

Toro 116-2022

SCREW-HHF, SHOULDER

$8.99

$

Usually ships in 3-6 days

31

Toro 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

32

Toro 116-0000

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

33

Toro 109-9065

SCREW-HH

$3.49

$

In Stock, Qty 9

34

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

35

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

36

Toro 116-2695

SPACER

$19.99

$

Usually ships in 3-6 days

37

Toro 109-8007

LINK-ADJUSTER, DECK LIFT

$15.99

$

In Stock, Qty 11

38

Toro 109-7840

ADJUSTER-LIFT, DECK

$7.99

$

In Stock, Qty 10

39

Toro 109-8353

TRUNNION

$14.99

$

In Stock, Qty 6

40

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

42

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 7

43

Toro 126-4930

DISCHARGE TUNNEL ASM

$237.99

$

Usually ships in 3-6 days

43:1

Toro 126-4929-03

DISCHARGE TUNNEL ASM

$161.99

$

Usually ships in 3-6 days

43:2

Toro 125-9366-03

BRACKET-FLAP, LH

$28.99

$

Usually ships in 3-6 days

43:3

Toro 125-9367-03

BRACKET-FLAP, RH

$28.99

$

Usually ships in 3-6 days

43:4

Toro 125-9368

FLAP-RUBBER

$23.99

$

Usually ships in 3-6 days

43:5

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

43:6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

44

Toro 126-1705

BUSHING-SLEEVE

$7.99

$

In Stock, Qty 5

45

Toro 325-9

SCREW-HH

$4.49

$

Usually ships in 3-6 days

46

Toro 126-2916

NUT-PUSH

$1.49

$

In Stock, only 1 left!

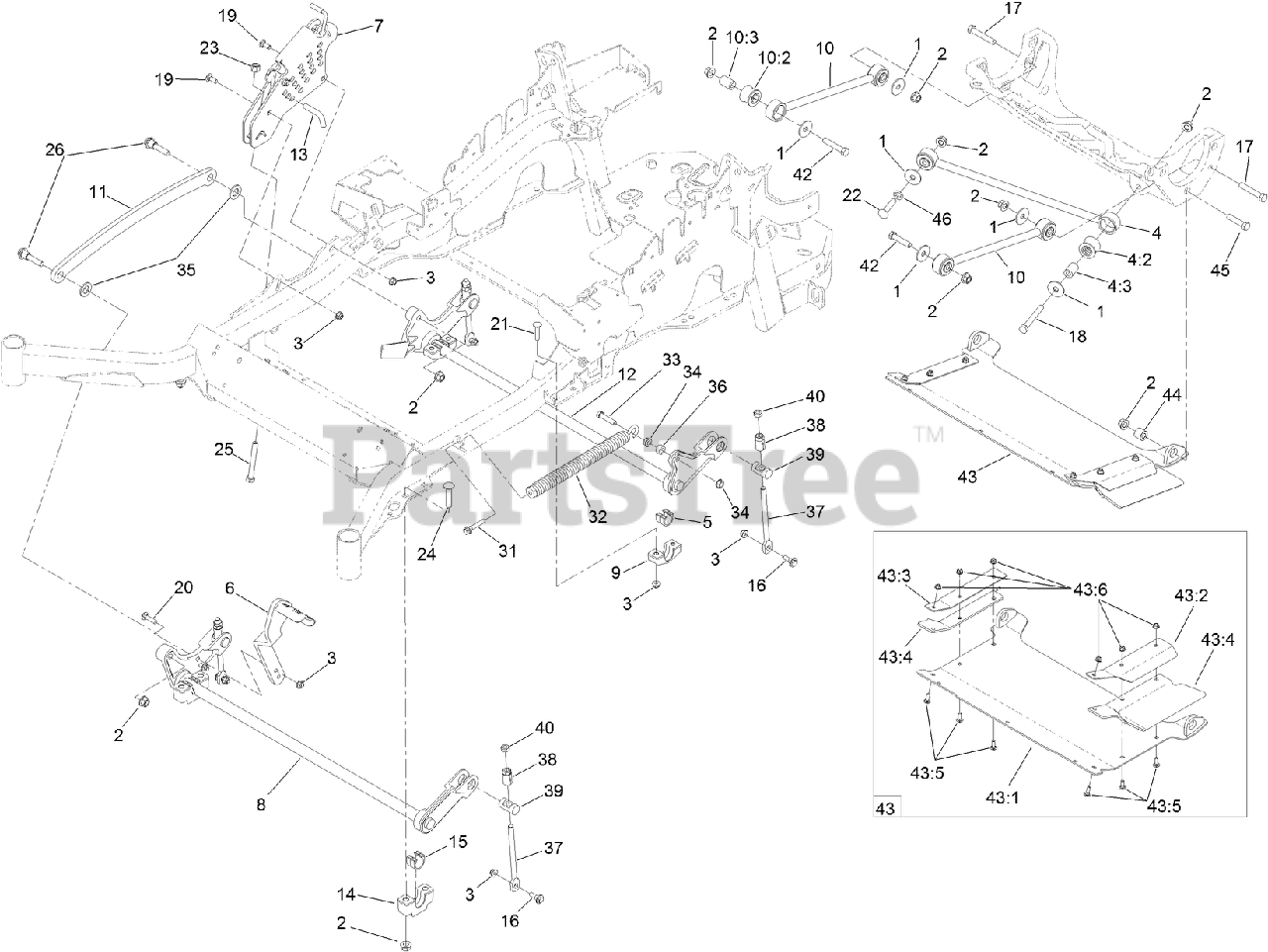

74942 TE (6000) - Toro 152cm Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 315000001 - 315999999) (2015) DECK LIFT ASSEMBLY Parts Diagram

DECK LIFT ASSEMBLY Parts Diagram
