74942 TE (6000) - Toro 152cm Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 314000001 - 314999999) (2014) FRAME AND CASTER ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Rear-Discharge Deck

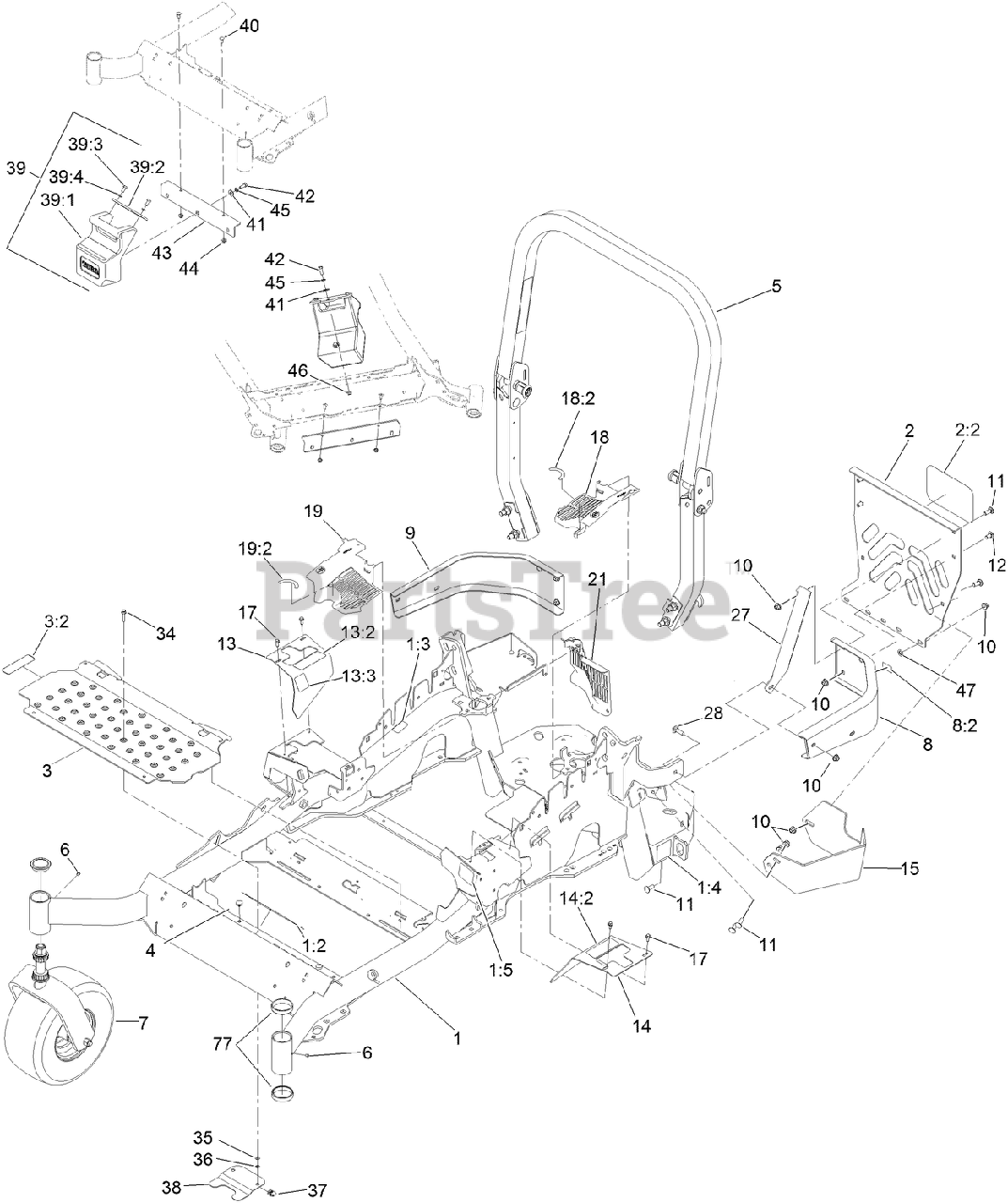

FRAME AND CASTER ASSEMBLY Parts Diagram

  • Title

1

Toro 127-6652

MAIN FRAME ASM
(Superseded to 131-7689)

$3261.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-3888

DECAL-DANGER SLOPE W/ROPS

$5.49

$

Usually ships in 3-6 days

0

1:3

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

1:4

Toro 106-2655

DECAL-HAZARD, PINCHED FINGER

$1.49

$

In Stock, only 1 left!

0

1:5

Toro 117-3864

DECAL-FUEL FILL, CE

$13.99

$

In Stock, only 1 left!

0

2

Toro 115-7410

REAR GUARD ASM

$206.99

$

In Stock, only 1 left!

0

2:2

Toro 67-7320

DECAL

$35.99

$

In Stock, only 2 left!

0

3

Toro 117-0915

FLOORPAN ASM

$224.99

$

Usually ships in 3-6 days

0

3:2

Toro 112-9028

DECAL-MISSING, COVER

$22.99

$

Usually ships in 3-6 days

0

4

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

5

Toro 116-0232

ROPS ASM

$816.99

$

Usually ships in 3-6 days

0

6

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

7

Caster Wheel ASM

Note: Not serviced separately

$

$

Not available

8

Toro 117-3829

LH REAR BUMPER ASM

$224.99

$

Usually ships in 3-6 days

0

8:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

9

Toro 116-0057-03

BUMPER-RH

$220.99

$

In Stock, only 1 left!

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

12

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

13

Toro 116-5898

RH MOTION CONTROL COVER ASM
(Superseded to 116-5899)

$49.99

$

Usually ships in 3-6 days

0

13:2

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

13:3

Toro 116-5988

DECAL-PARK BRAKE, CE

$14.99

$

In Stock, only 1 left!

0

14

Toro 117-3831

LH MOTION CONTROL COVER ASM

$75.99

$

Usually ships in 3-6 days

0

14:2

Toro 99-8936

DECAL-CONTROL, MOTION

$22.99

$

In Stock, only 2 left!

0

15

Toro 117-0908-03

GUARD-MUFFLER

$167.99

$

Usually ships in 3-6 days

0

17

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

18

Toro 117-3838

LH HYDRO GUARD ASM

$90.99

$

Usually ships in 3-6 days

0

18:2

Toro 117-3811

DECAL-HYDRO OIL

$18.99

$

Usually ships in 3-6 days

0

19

Toro 117-3839

RH HYDRO GUARD ASM

$90.99

$

Usually ships in 3-6 days

0

19:2

Toro 117-3811

DECAL-HYDRO OIL

$18.99

$

Usually ships in 3-6 days

0

21

Toro 109-9058

GUARD-HYDRO, REAR (RH)

$25.99

$

In Stock, only 3 left!

0

27

Toro 117-0903-03

STRAP

$68.99

$

Usually ships in 3-6 days

0

28

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

34

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

35

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

36

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 119-0395-03

ADAPTER-CAPTIVE

$22.99

$

Usually ships in 3-6 days

0

39

WEIGHT ASM

Note: Not serviced separately

$

$

Not available

39:1

Toro 120-7881

WEIGHT-43 LB

$817.99

$

Usually ships in 3-6 days

0

39:2

Toro 115-3616-01

TAB-SUPPORT, WEIGHT

$30.99

$

In Stock, only 1 left!

0

39:3

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

39:4

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

40

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

41

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

42

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

43

Toro 115-3615-01

BRACKET-MOUNT, WEIGHT

$47.99

$

Usually ships in 3-6 days

0

44

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

45

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

46

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

47

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

77

Toro 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0
