74941 CP (6000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) SEAT MOUNTING ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

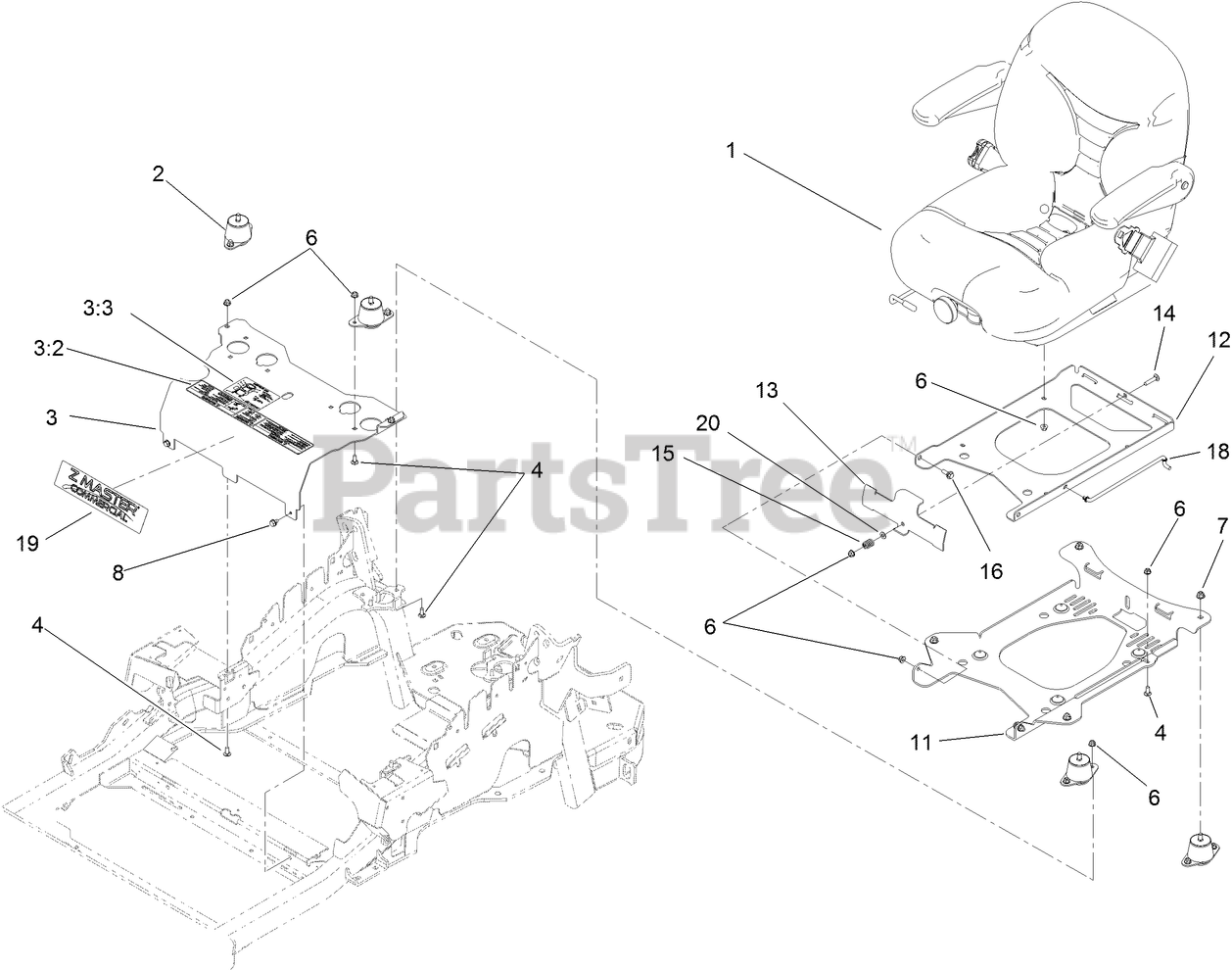

SEAT MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 116-3998

SUSPENSION SEAT ASM

$1115.99

$

Usually ships in 3-6 days

0

2

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, only 1 left!

0

3

Toro 116-2323

MOUNT-SEAT

$266.99

$

Usually ships in 3-6 days

0

3:2

Toro 109-7069

DECAL-CONSOLE

$17.99

$

In Stock, only 1 left!

0

3:3

Toro 116-0211

DECAL-SERVICE AID

$12.99

$

In Stock, only 1 left!

0

4

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 9266934

SCREW

$8.99

$

In Stock, Qty 9

0

11

Toro 116-3860-03

PLATE-TILT, SEAT SUPPORT

$190.99

$

Usually ships in 3-6 days

0

12

Toro 116-3859-03

PLATE-FRAME, SEAT

$133.99

$

Usually ships in 3-6 days

0

13

Toro 109-9881-03

PLATE-LATCH, SEAT

$19.99

$

Usually ships in 3-6 days

0

14

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 10

0

15

Toro 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

16

Toro 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

18

Toro 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

19

Toro 120-5893

DECAL

$13.99

$

In Stock, only 2 left!

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
