74941 CP (6000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 116-0232 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

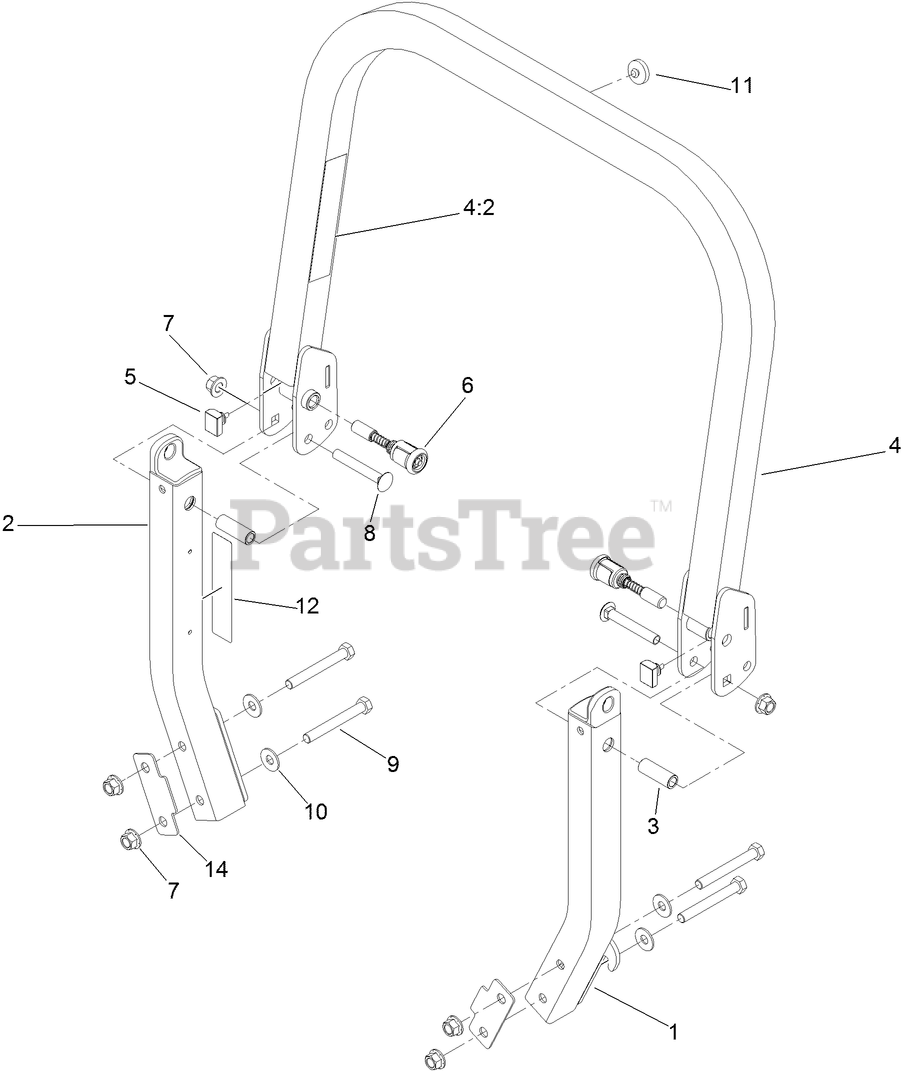

ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 116-0232 Parts Diagram

  • Title

1

LEG-ROPS, LH

Note: Not serviced separately

$

$

Not available

2

LEG-ROPS, RH

Note: Not serviced separately

$

$

Not available

3

Toro 109-6653

SPACER

$6.49

$

In Stock, only 2 left!

0

4

UPPER ROPS ASM

Note: Not serviced separately

$

$

Not available

4:2

Toro 107-3069

DECAL-WARNING

$22.99

$

Usually ships in 3-6 days

0

5

Toro 109-5337

BUMPER-ROPS

$6.49

$

In Stock, only 4 left!

0

6

Toro 116-0104

PIN-SPRING

$47.99

$

In Stock, only 1 left!

0

7

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

8

Toro 3233-10

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

9

Toro 325-17

SCREW-HH

$5.99

$

In Stock, Qty 6

0

10

Toro 109-9505

WASHER-SPRING

$5.49

$

In Stock, only 4 left!

0

11

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 17

0

12

Toro 117-0346

DECAL-CAUTION, FUEL VENT

$9.99

$

Usually ships in 3-6 days

0

14

Toro 116-0960

SPACER

$7.99

$

Usually ships in 3-6 days

0
